MST FXX-D S - Electronics Installation and Battery Mounting; Gyro, Receiver, and ESC Mounting Steps; Battery Pack Installation Procedure

20
FXX-D S

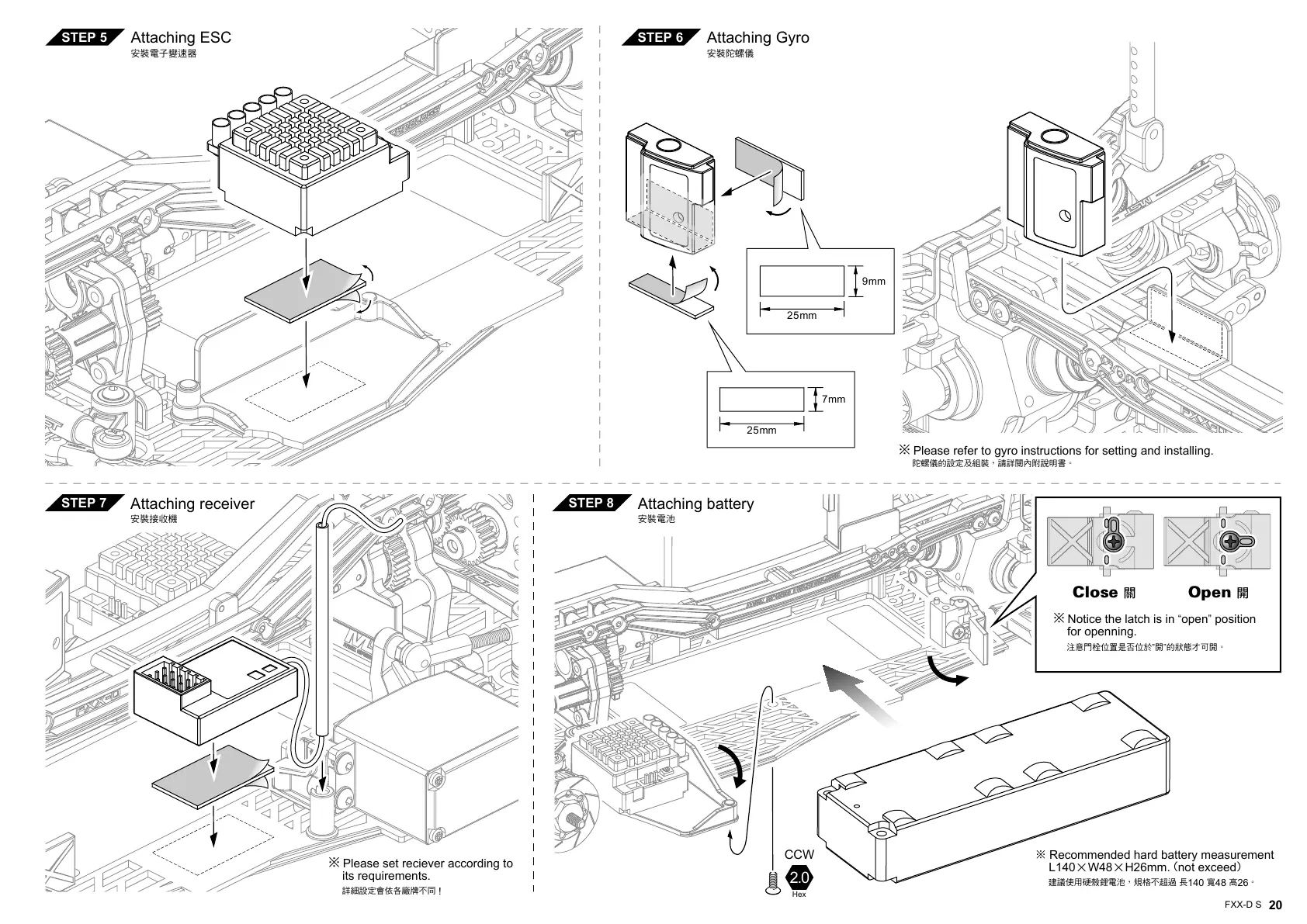

STEP 5
STEP 7
Attaching receiver
STEP 8
Attaching battery
Attaching ESC
安裝電子變速器
STEP 6
Attaching battery mountAttaching Gyro
安裝陀螺儀
安裝接收機 安裝電池
25mm
7mm
25mm
9mm
Please refer to gyro instructions for setting and installing.
陀螺儀的設定及組裝，請詳閱內附說明書。
※
Please set reciever according to
its requirements.
詳細設定會依各廠牌不同
!
※
Close 關 Open 開
Notice the latch is in
“
open
”
position
for openning.
注意門栓位置是否位於
”
開
”
的狀態才可開。
※
Recommended hard battery measurement
L
140
×
W
48
×
H
26
mm.
(
not exceed
)
建議使用硬殼鋰電池，規格不超過 長
140
寬
48
高
26
。
※
2.0
Hex
CCW
