CAUTION: risk of injury from knife blade!
IMPORTANT: the torque of the knife is 5 Nm.

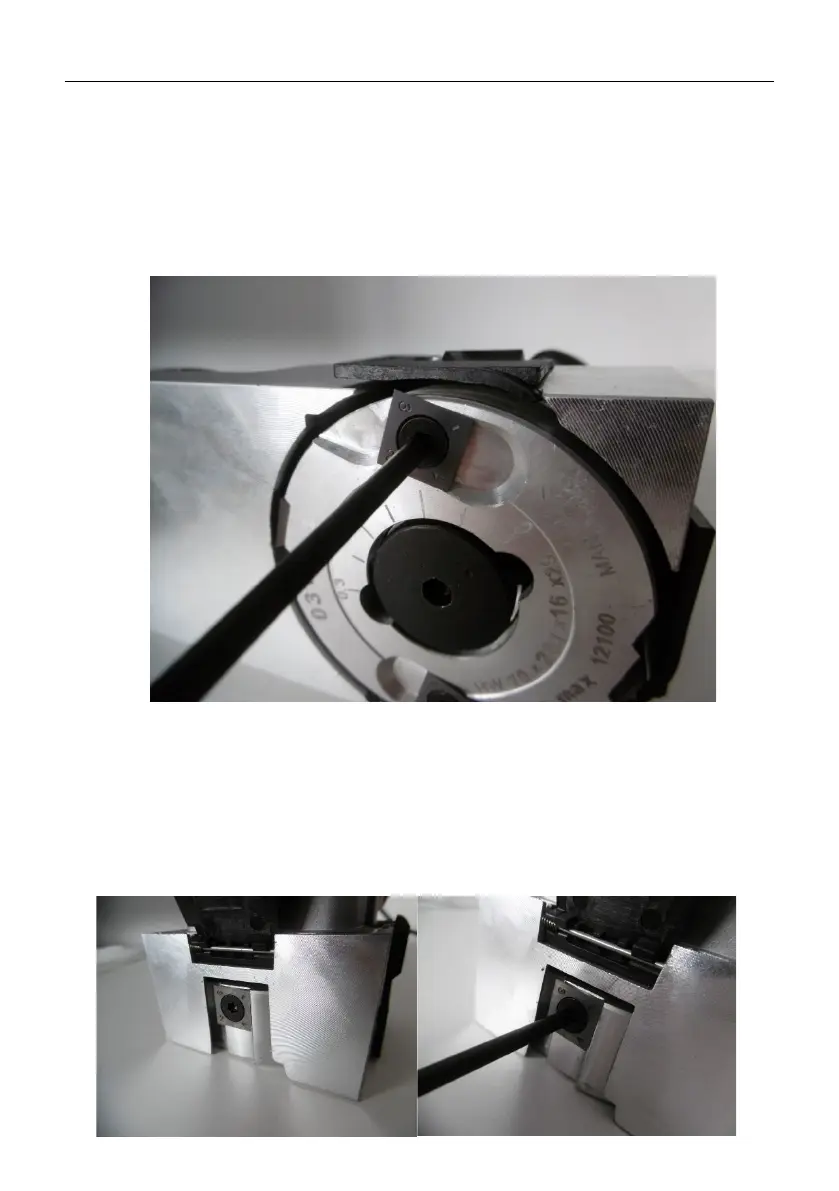

Lay the unit on its side and clean the torx screw socket if necessary. Then press the
axis lock button (J) as far as it will go and use an Allen wrench to lock the axial cutting
depth heads, making the axis lock button go deeper. While holding the axis lock
button (J) at the same time, use a torx wrench to loosen the screw of the respective
blade and remove/rotate it. Assembly is similar to disassembly.
3.4.3 Replacing axle blades
CAUTION: risk of injury from knife blade!
IMPORTANT: the torque of the knife is 5 Nm.
Lift the side protective flap (G) and rotate the cutting head (F) until the knife is
positioned in the flap. Set the machine on its side and, while holding the axle lock
button (J), at the same time loosen the screw of the blade in question with a torx
wrench and remove/rotate the blade. Assembly is similar to disassembly.
