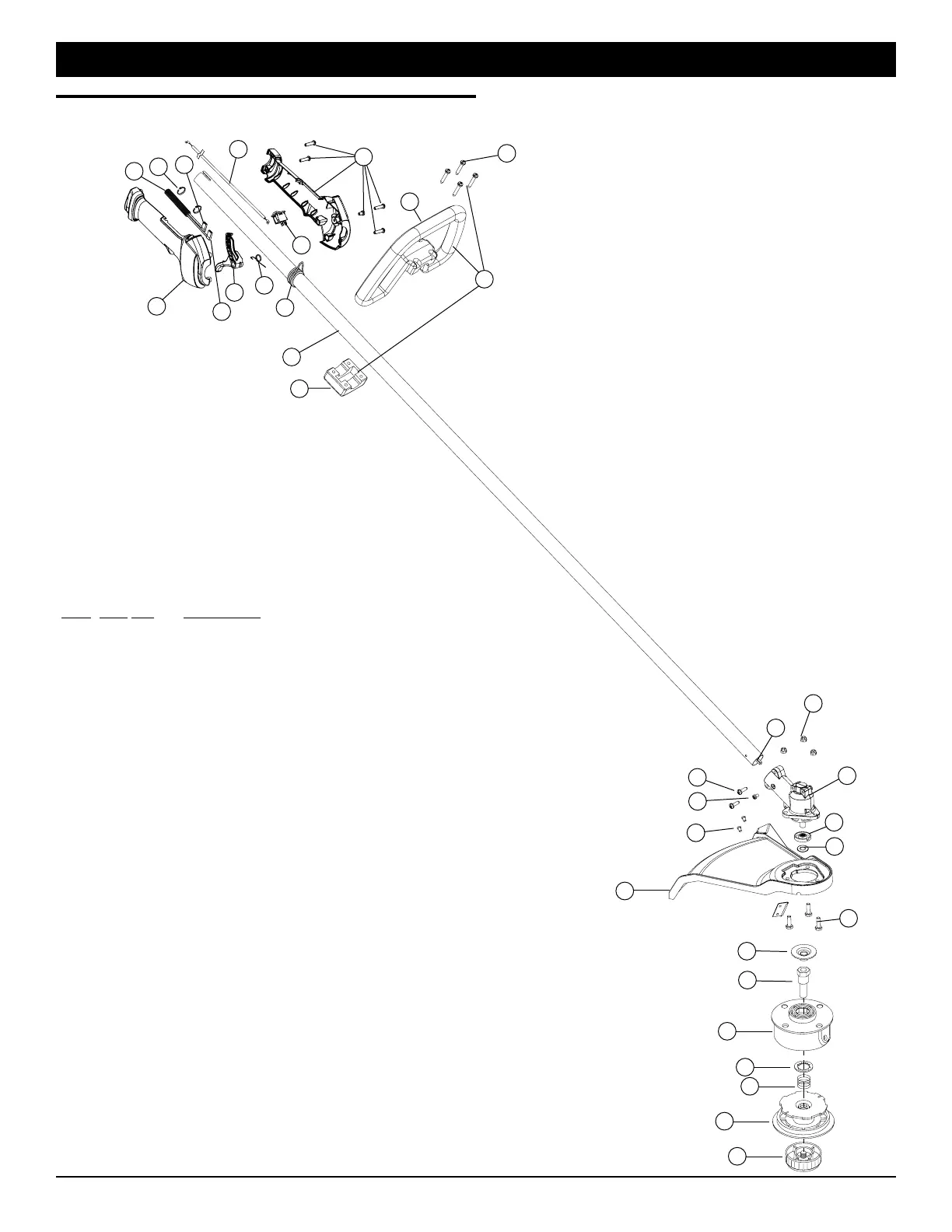

REPLACEMENT PARTS - MODEL H70SS
4-CYCLE GAS TRIMMER
15
12
13
16
12
17
4
9
7
11
Item Part
No. Description
1 753-05491 Throttle Housing Assembly (includes 2-4)
2 753-05293 Throttle Trigger
3 753-05007 Throttle Trigger Spring
4 791-182405 Switch Assembly
5 753-05473 Throttle Cable Assembly
6 753-05474 Drive Shaft Housing
7 791-180869 Deluxe D-Handle Assembly (includes 8-10)
8 791-181070 Screw
9 791-182167 D-Handle
10 791-182168 D-Handle Base
11 753-05475 Flexible Drive Shaft
12 791-182200 Shield Mount Screw Assembly
13 791-182193 Gearbox Assembly (includes 14 & 15)
14 791-182195 Gearbox Screw
15 791-145569 Anti-Rotation Screw
16 753-05033 Blade Assembly
17 753-05476 Shield Assembly (includes 16)
18 791-182196 Blade Driver
19 753-04348 Palnut
20 791-147490 Retaining Washer
21 791-612483 Spool Shaft
22 791-683301 Outer Spool Assembly
23 791-612026 Retainer
24 791-610636B Spring
25 791-147495 Inner Reel
26 791-180814B Bump Head Knob Assembly
27 753-05477 Ground Wire
28 753-05478 Lead Wire
29 753-05481 Wire Cover
30 791-160428 Cable Clamp
31 791-610327 Shoulder Strap Clip
* 753-1161 Complete Cutting Head Assembly
(includes 21-26)
* 791-682075B Shoulderr Strap
* Items Not Shown
10
3
2
8
1
5
6
22
21
14
1
20
23
24
25
26
18
19
27
28
29
30
PARTS LIST
