S?_:?_'_:!_ _ _!b_
Mainta=n
t
Your Lawn
ower
WAR. .G
i
A waysstopengine;
disconnect spark
plug, and ground
againstenginebefore
cleaning, lubricating
ordo nganyk ndof
maintenance onyour
We do ni
the use of pressure
washers or garden
hoseto clean your
unit. These may Cause
damage to eleCtric
Componentsispindles,
pulleys; bearingS,or
theengine;The use
of waterwil! resultin
shortened !ifeand
reduceserviceability;
_ ARNING: Always stop engine,
disconnect spark plug, and
groundagainst engine before
cleaning, lubricating or doing
any kind of maintenance on your
machine.

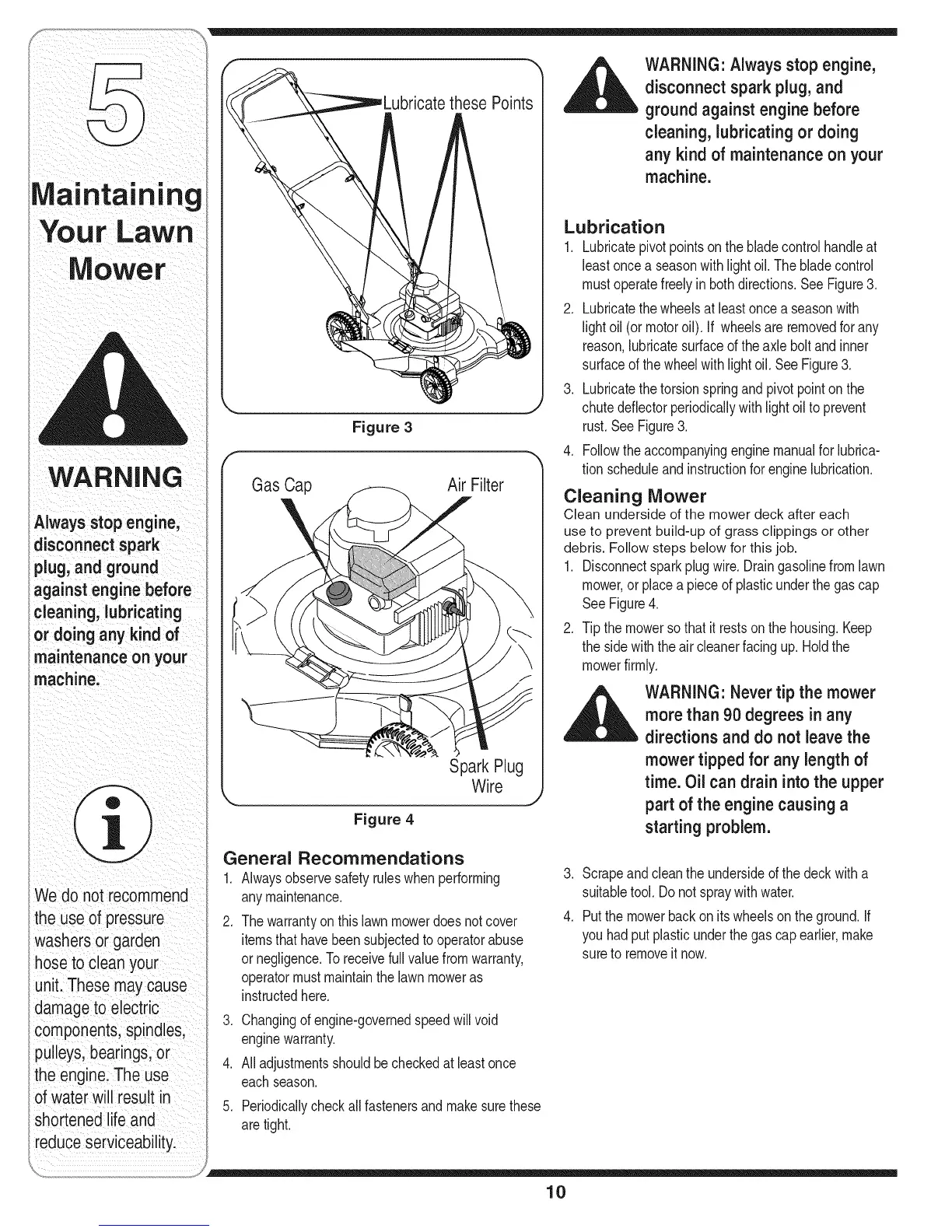

Figure 3
GasCap Air Filter
Spark Plug
Figure 4
General Recommendations
1. Alwaysobservesafetyruleswhen performing
anymaintenance.
2. Thewarrantyon thislawnmowerdoesnot cover
itemsthathavebeensubjectedto operatorabuse
or negligence.To receivefull valuefromwarranty,
operatormustmaintainthelawnmoweras
instructedhere.
3. Changingof engine-governedspeedwill void
enginewarranty.
4. Alladjustmentsshouldbecheckedat leastonce
eachseason.
5. Periodicallycheckall fastenersand makesurethese
aretight.
Lubrication
1. Lubricatepivotpointson the bladecontrolhandleat
leastoncea seasonwithlightoil.Thebladecontrol
mustoperatefreelyinbothdirections.SeeFigure3.
2. Lubricatethewheelsat leastoncea seasonwith
lightoil (ormotoroil).If wheelsareremovedfor any
reason,lubricatesurfaceof the axle boltandinner
surfaceof thewheelwithlightoil.SeeFigure3.
3. Lubricatethetorsionspringandpivotpointonthe
chutedeflectorperiodicallywith lightoilto prevent
rust.See Figure3.
4. Followtheaccompanyingenginemanualfor lubrica-
tionscheduleandinstructionforenginelubrication.
Cleaning Mower
Clean underside ofthe mower deck after each
useto prevent build-up of grass clippings or other
debris. Follow steps below for this job.
1. Disconnectsparkplugwire.Draingasolinefromlawn
mower,or placea pieceof plasticunderthegascap
SeeFigure4.
2. Tipthe mowerso that it restsonthehousing.Keep
thesidewiththeaircleanerfacingup.Holdthe
mowerfirmly.
__1= ARNING: Never tip the mower
more than 90 degrees inany
directions and do not leave the
mower tipped for any length of
time. Oil can drain intothe upper
part ofthe engine causing a
starting problem.
3. Scrapeandcleanthe undersideof the deckwitha
suitabletool.Donotspraywithwater.
4. Putthemowerbackonitswheelsontheground.If
youhadput plasticunderthegas capearlier,make
sureto removeitnow.
10
