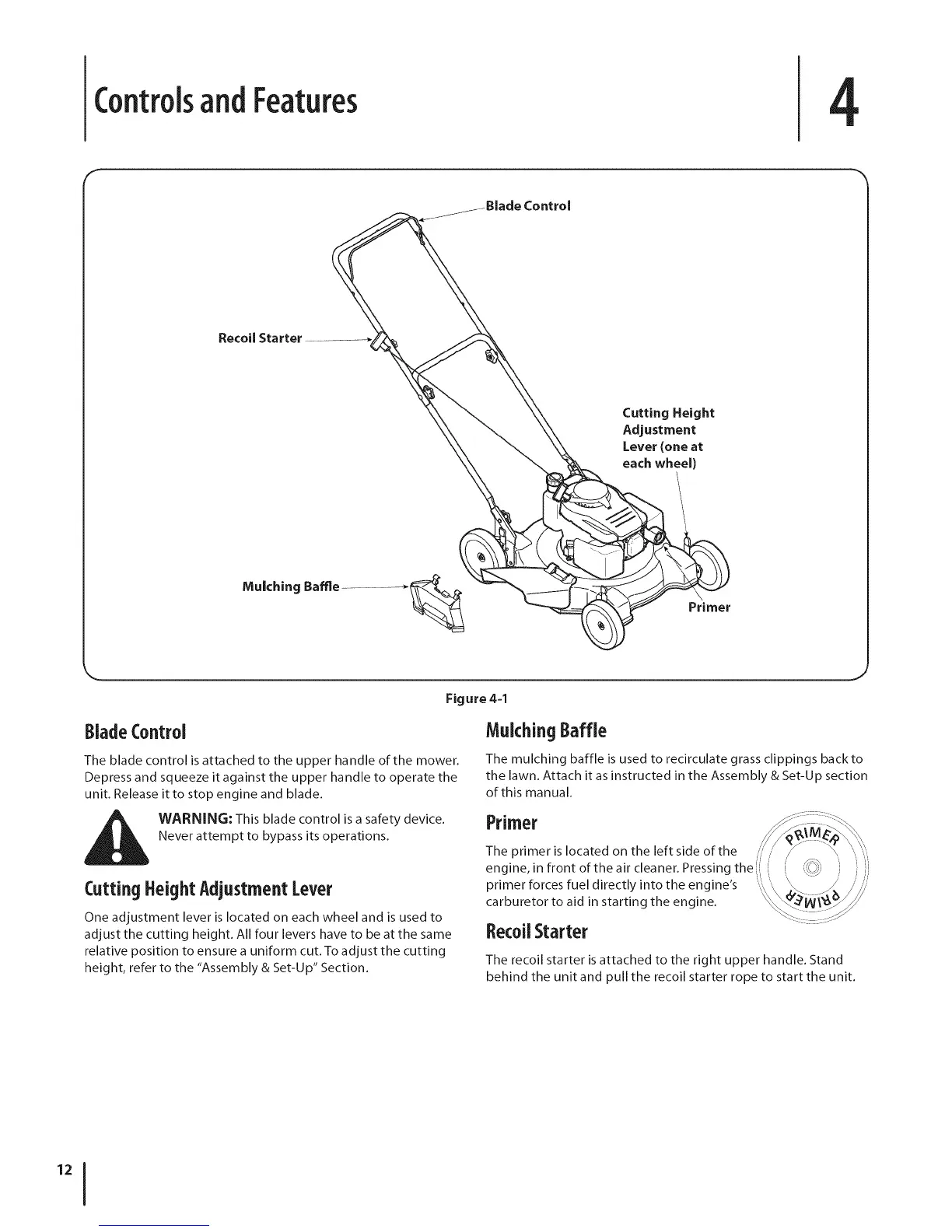

Controlsand Features
4
Recoil Starter
Cutting Height
Adjustment
Lever (one at
each wheel)
Mulching Baffle .....................
Primer
J
Figure 4-1
8lade Control
The blade control is attached to the upper handle of the mower.
Depress and squeeze it against the upper handle to operate the
unit. Release it to stop engine and blade.
_ ARNING: This blade control is a safety device.
Never attempt to bypass its operations.
CuttingHeightAdjustmentLever
One adjustment lever is located on each wheel and is used to
adjust the cutting height. All four levers have to be at the same
relative position to ensure a uniform cut. To adjust the cutting
height, refer to the "Assembly & Set-Up" Section.
MulchingBaffle
The mulching baffle is used to recirculate grass clippings back to
the lawn. Attach it as instructed in the Assembly & Set-Up section
of this manual.
Primer
The primer is located on the left side of the /
engine, in front of the air cleaner. Pressing the'
primer forces fuel directly into the engine's ._,
carburetor to aid in starting the engine.
RecoilStarter
The recoil starter is attached to the right upper handle. Stand
behind the unit and pull the recoil starter rope to start the unit.
