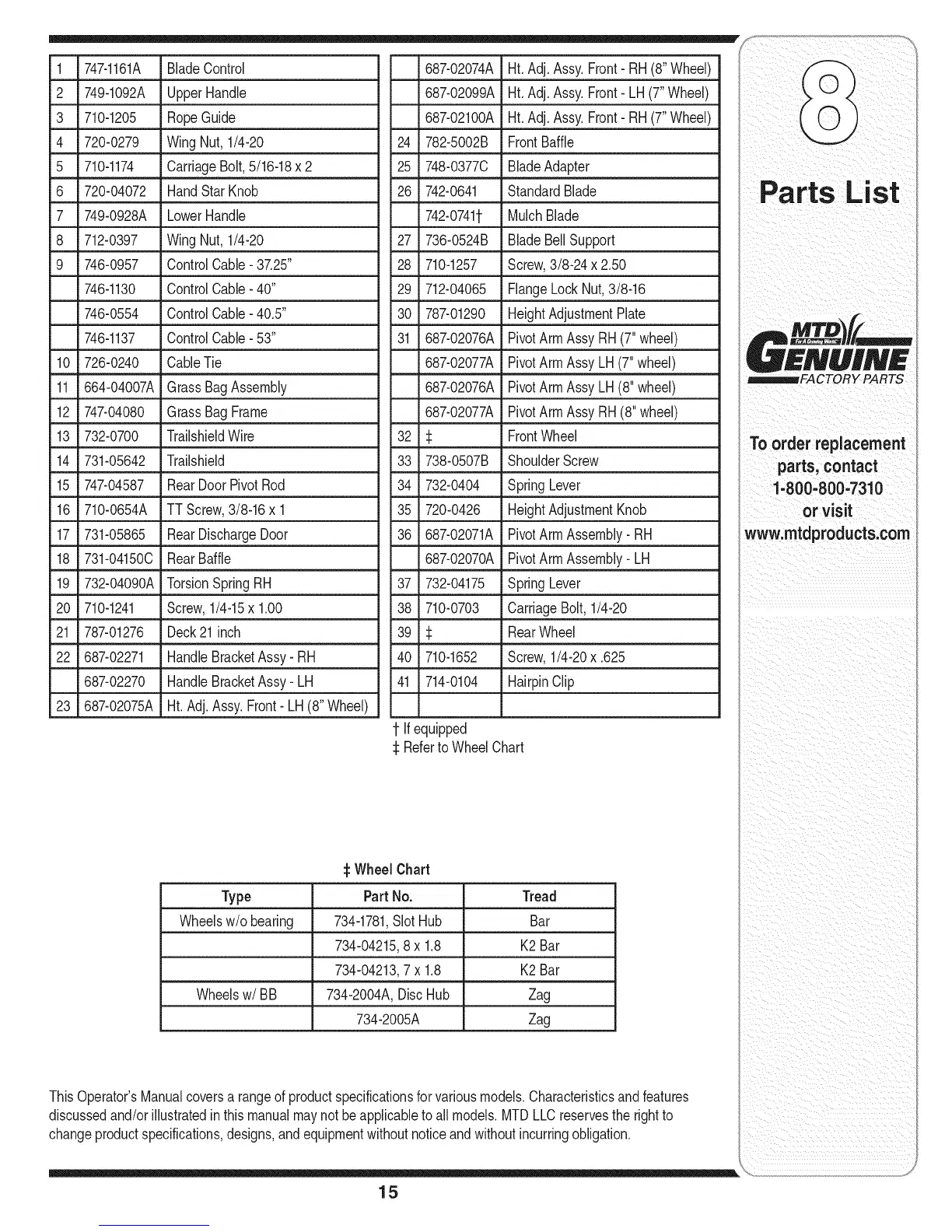

1 747-1161A BladeControl
2 749-1092A UpperHandle
3 710-1205 RopeGuide
4 720-0279 WingNut,1/4-20
5 710-1174 CarriageBolt,5/16-18x 2
6 720-04072 HandStarKnob
7 749-0928A LowerHandle
8 712-0397 WingNut,1/4-20
9 746-0957 ControlCable- 37.25"
746-1130 ControlCable- 40"
746-0554 ControlCable- 40.5"
746-1137 ControlCable- 53"
10 726-0240 CableTie
11 664-04007A GrassBagAssembly
12 747-04080 GrassBagFrame
13 732-0700 TrailshieldWire
14 731-05642 Trailshield
15 747-04587 RearDoorPivotRod
16 710-0654A TTScrew,3/8-16x 1
17 731-05865 RearDischargeDoor
18 731-04150C RearBaffle
19 732-04090A TorsionSpringRH
20 710-1241 Screw,1/4-15x 1.00
21 787-01276 Deck21inch
22 687-02271 HandleBracketAssy- RH
687-02270 HandleBracketAssy- LH
23 687-02075A Ht. Adj.Assy.Front- LH(8" Wheel)
687-02074A Ht. Adj.Assy.Front- RH(8"Wheel)
687-02099A Ht. Adj.Assy.Front- LH(7" Wheel)
687-02100A Ht. Adj.Assy.Front- RH(7"Wheel)
24 782-5002B FrontBaffle
25 748-0377C BladeAdapter
26 742-0641 StandardBlade
742-07411- MulchBlade
27 736-0524B BladeBellSupport
28 710-1257 Screw,3/8-24x 2.50
29 712-04065 FlangeLockNut,3/8-16
30 787-01290 HeightAdjustmentPlate
31 687-02076A PivotArm AssyRH(7" wheel)
687-02077A PivotArm AssyLH (7"wheel)
687-02076A PivotArm AssyLH (8"wheel)
687-02077A PivotArm AssyRH(8" wheel)
32:1: FrontWheel
33 738-0507B ShoulderScrew
34 732-0404 SpringLever
35 720-0426 HeightAdjustmentKnob
36 687-02071A PivotArm Assembly-RH
687-02070A PivotArm Assembly-LH
37 732-04175 SpringLever
38 710-0703 CarriageBolt,1/4-20
39:1: RearWheel
40 710-1652 Screw,1/4-20x.625
41 714-0104 HairpinClip
1 ifequipped
RefertoWheelChart
Type Tread
Wheelsw/o bearing Bar
K2 Bar
K2 Bar
Wheelsw/BB Zag
Zag
WheelChart
PartNo.
734-1781,SlotHub
734-04215,8x 1.8
734-04213,7 x 1.8
734-2004A,DiscHub
734-2005A
