i NOTE:ThisOperator's
} Manualcoversseveral
i models.LawnMower
i featuresvaryby
model,Notallfeatures
discussed(orengines
pictured)inthismanual
areapplicabletoall
LawnMowermodels.
NOTE:Standbehind
themowerasifyou
weregoingtooperate
it.Yourrighthand
correspondstotheright
sideofthemower;your
lefthandcorresponds
I totheleftsideofthe
mower.
i NOTE:Yourmower
isshippedwiththe
handleinthehigher
heightposition.
NOTE:Eachendof
; thelowerhandlemust
i beplacedinthesame
I relative position.
IMPORTANT
i This un t is shipped
i without gasoline or
oil inthe engine. Fill
up gasolineand oil
as instructed in the
accompanyingengine
manual BEFORE
operatingyour mower.

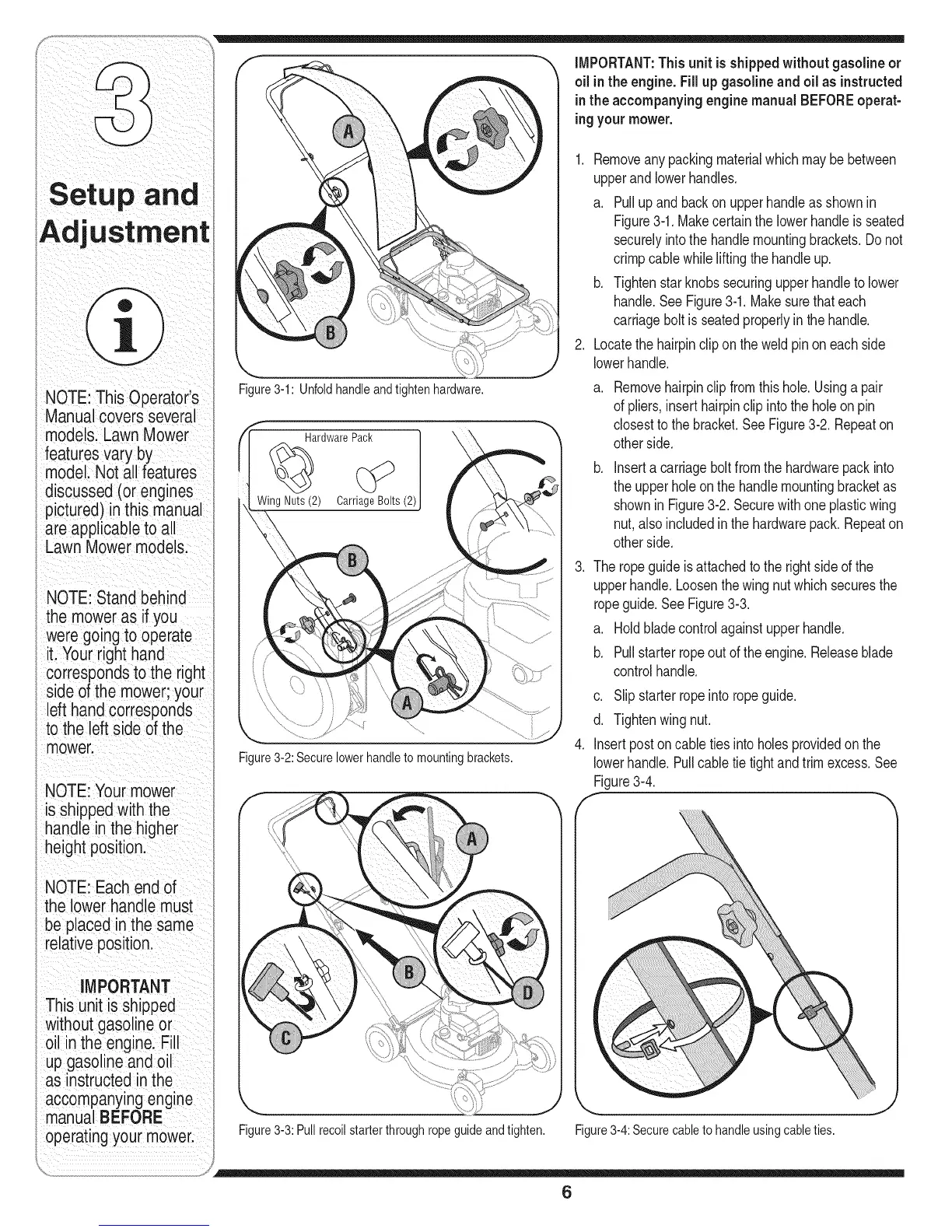

Figure3-1: Unfoldhandleandtightenhardware.
HardwarePack
CarriageBolts (2)
Figure3-2:Securelowerhandleto mountingbrackets.
Figure3-3:Pullrecoilstarterthroughropeguide andtighten.
IMPORTANT:This unit isshipped without gasolineor
oil inthe engine.Fillup gasoline and oil as instructed
inthe accompanying enginemanualBEFOREoperat-
ingyourmower.
1. Removeanypackingmaterialwhichmaybebetween
upperandlowerhandles.
a. Pullupand backon upperhandleasshownin
Figure3-1.Makecertainthe lowerhandleis seated
securelyintothe handlemountingbrackets.Donot
crimpcablewhileliftingthehandleup.
b. Tightenstarknobssecuringupperhandleto lower
handle.See Figure3-1.Makesurethateach
carriageboltisseatedproperlyinthe handle.
2. Locatethehairpinclipon theweldpinon eachside
lowerhandle.
a.
Removehairpinclipfromthis hole.Usinga pair
ofpliers,inserthairpinclip into the holeon pin
closesttothe bracket.SeeFigure3-2. Repeaton
otherside.
b.
Inserta carriagebolt fromthe hardwarepackinto
theupperholeonthe handlemountingbracketas
shownin Figure3-2. Securewithone plasticwing
nut,alsoincludedinthehardwarepack.Repeaton
otherside.
.
Theropeguideis attachedto the right sideof the
upperhandle.Loosenthewingnut whichsecuresthe
ropeguide.SeeFigure3-3.
a. Holdbladecontrolagainstupperhandle.
b. Pullstarterropeoutof the engine.Releaseblade
controlhandle.
.
c. Slipstarterropeintoropeguide.
d. Tightenwingnut.
Insertpostoncabletiesintoholesprovidedon the
lowerhandle.Pullcabletie tightandtrimexcess.See
Figure3-4.
Figure3-4:Securecabletohandleusingcableties.
