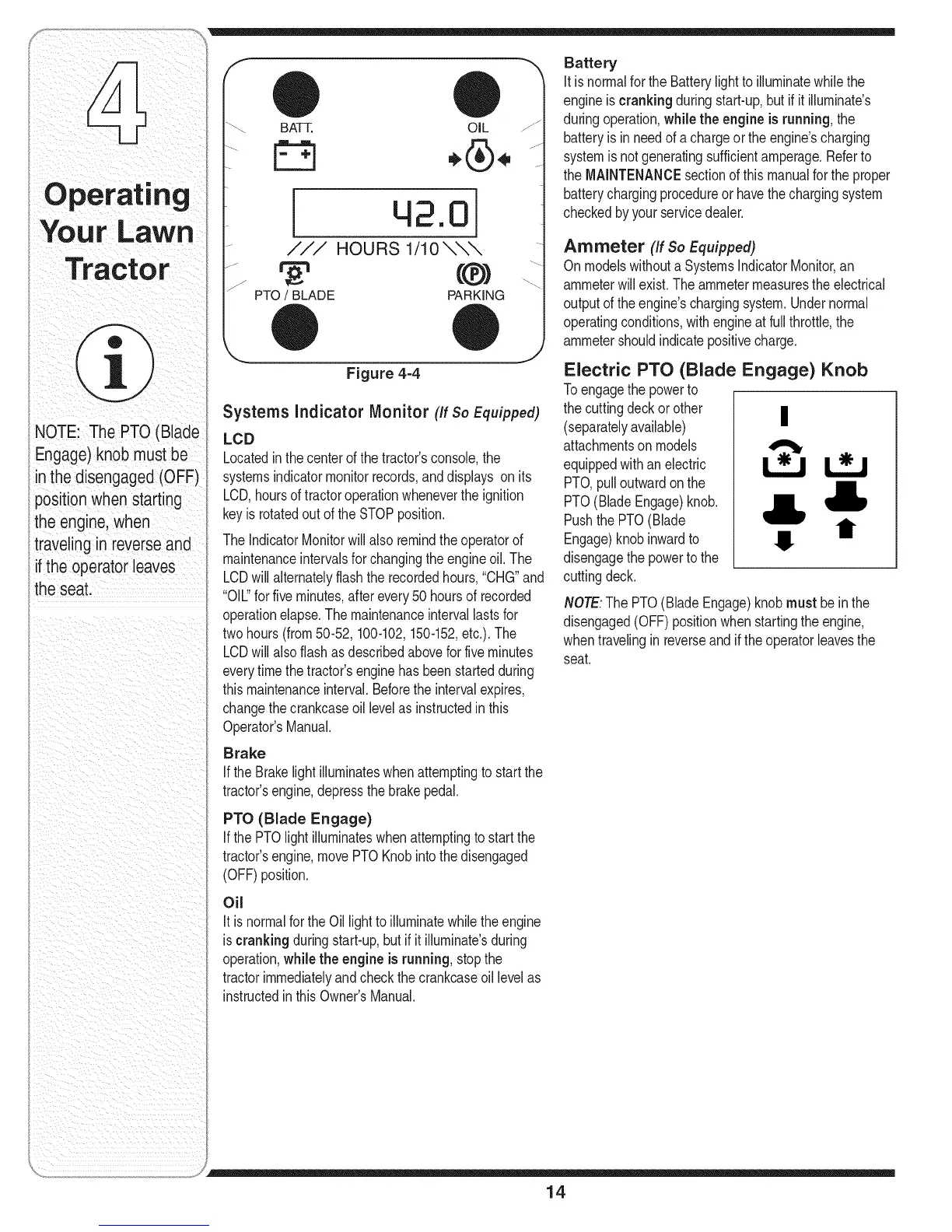

MTD 13AP625K730 - Page 14

NOTE:ThePTO(Blade
Engage)knobmustbe
inthedisengaged(OFF)
positionwhenstarting
theengine,when
travelinginreverseand
iftheoperatorleaves
theseat.
\-_ BATT, OIL zZ
I 42.0
/// HOURS 1/1 0 \\\
PTO/ BLADE PARKING
Figure 4-4
Systems Indicator Monitor (if so Equipped)
LCD
Locatedinthe centerof the tractor'sconsole,the
systemsindicatormonitorrecords,anddisplays on its
LCD,hoursoftractoroperationwheneverthe ignition
keyis rotatedout of the STOPposition.
TheIndicatorMonitorwillalsoremindtheoperatorof
maintenanceintervalsforchangingthe engineoil. The
LCDwillalternatelyflashtherecordedhours,"CHG"and
"OIL"for fiveminutes,afterevery50 hoursof recorded
operationelapse.The maintenanceintervallastsfor
twohours(from50-52,100-102,150-152,etc.).The
LCDwillalsoflashas describedabovefor fiveminutes
everytimethe tractor'senginehasbeenstartedduring
thismaintenanceinterval.Beforetheintervalexpires,
changethe crankcaseoil levelasinstructedin this
Operator'sManual.
Brake
If theBrakelightilluminateswhenattemptingtostart the
tractor'sengine,depressthebrakepedal.
PTO (Blade Engage)
If thePTOlightilluminateswhenattemptingtostart the
tractor'sengine,movePTOKnobintothe disengaged
(OFF)position.
Oil
It isnormalfortheOil lightto illuminatewhilethe engine
iscrankingduringstart-up,butif it illuminate'sduring
operation,while the engine isrunning,stopthe
tractorimmediatelyandcheckthe crankcaseoillevelas
instructedin thisOwner'sManual.
Battery
It isnormalforthe Batterylightto illuminatewhile the
engineiscrankingduringstart-up,butifit illuminate's
duringoperation,while the engine isrunning, the
batteryisin needofa chargeorthe engine'scharging
systemisnotgeneratingsufficientamperage.Referto
theMAINTENANCEsectionof this manualfor the proper
batterychargingprocedureor havethechargingsystem
checkedbyyourservicedealer.
Ammeter (If so Equipped)
Onmodelswithouta SystemsIndicatorMonitor,an
ammeterwillexist.Theammetermeasurestheelectrical
outputoftheengine'schargingsystem.Undernormal
operatingconditions,withengineatfullthrottle,the
ammetershouldindicatepositivecharge.
Electric PTO (Blade Engage) Knob
Toengagethepowerto
thecuttingdeckor other
(separatelyavailable) |
attachmentson models
equippedwithan electric
PTO,pulloutwardonthe
PTO(BladeEngage)knob.
PushthePTO(Blade
Engage)knobinwardto
disengagethepowerto the
cuttingdeck.
NOTE:ThePTO(BladeEngage)knobmust bein the
disengaged(OFF)positionwhen startingthe engine,
whentravelingin reverseand if the operatorleavesthe
seat.
14
