MTD 242-650A - Page 11

MODEL 650

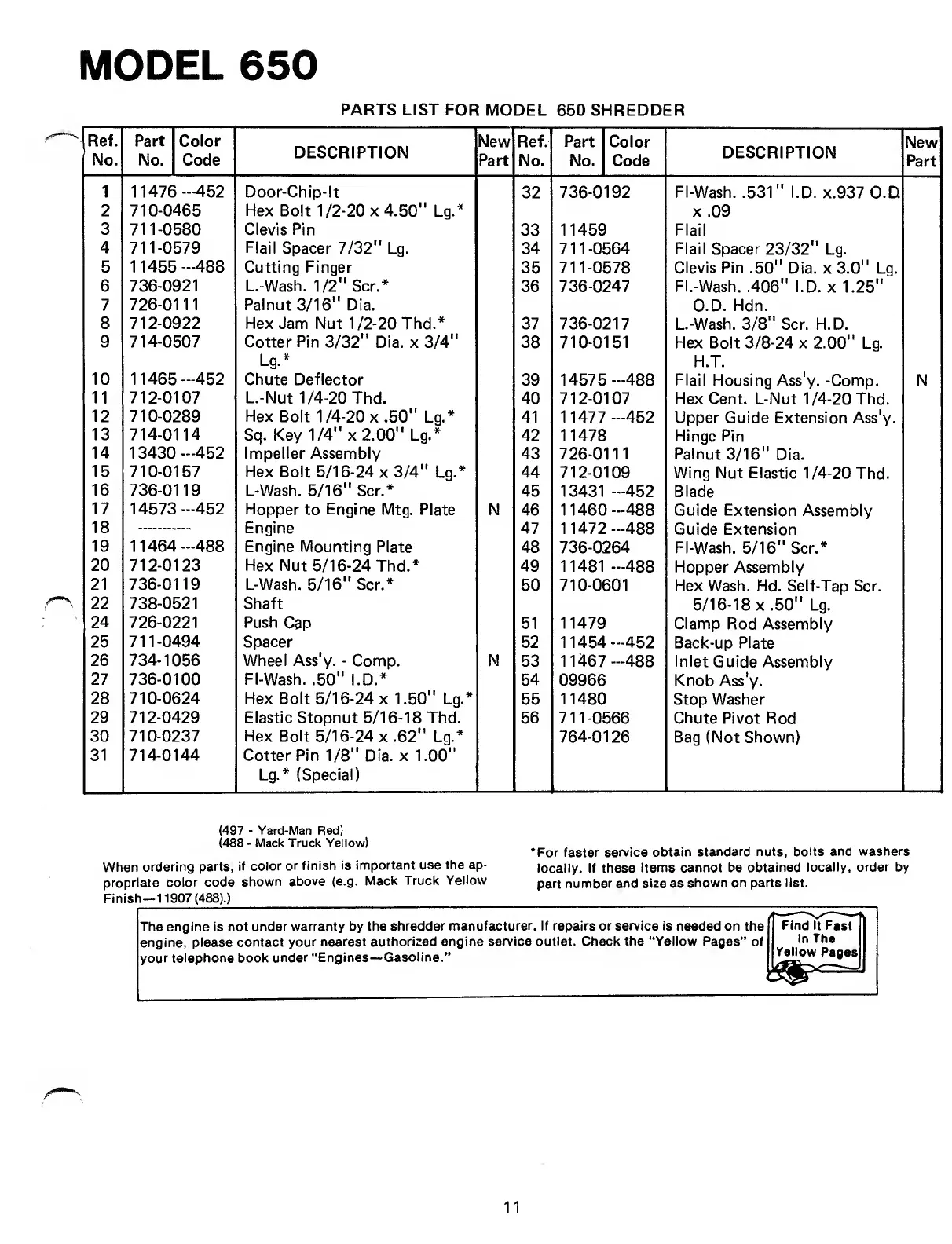

PARTS LIST FOR MODEL 650 SHREDDER
Ref.
No.
Part
No.
Color
Code
DESCRIPTION
New
Part
Ref.
No.
Part
No.
Color
Code
DESCRIPTION
New
Part
1 11476 -452
Door-Chip-lt
32
736-0192 FI-Wash. .531" I.D. x.937 O.D
2
710-0465 Hex Bolt 1/2-20x4.50" Lg.*
x .09
3
711-0580 Clevis Pin
33
11459 Flail
4
711-0579 Flail Spacer 7/32" Lg.
34 711-0564
Flail Spacer 23/32" Lg.
5 11455-488 Cutting Finger
35 711-0578 Clevis Pin .50" Dia. x 3.0" Lg.
6
736-0921
L.-Wash. 1/2" Scr.*
36 736-0247
FI.-Wash. .406" I.D. x 1.25"
7 726-0111 Palnut 3/16" Dia.
O.D. Hdn.
8 712-0922
Hex Jam Nut 1/2-20 Thd.* 37
736-0217 L-Wash. 3/8" Scr. H.D.
9 714-0507
Cotter Pin 3/32" Dia. x 3/4"
38 710-0151 Hex Bolt 3/8-24 x 2.00" Lg.
Lg.* H.T.
10
11465 -452 Chute Deflector
39
14575 -488
Flail Housing Ass'y- -Comp. N
11
712-0107 L-Nut 1/4-20 Thd.
40 712-0107
Hex Cent. L-Nut 1/4-20 Thd.
12
710-0289
Hex Bolt 1/4-20 x .50" Lg.* 41
11477 -452
Upper Guide Extension Ass'y.
13
714-0114
Sq. Key 1/4" x 2.00" Lg.* 42
11478
Hinge Pin
14
13430 -452 Impeller Assembly
43
726-0111 Palnut 3/16" Dia.
15
710-0157 Hex Bolt 5/16-24x3/4" Lg.*
44
712-0109
Wing Nut Elastic 1/4-20 Thd.
16
736-0119 L-Wash. 5/16" Scr.*
45 13431
-452 Blade
17 14573 -452
Hopper to Engine Mtg. Plate
N
46 11460 -488
Guide Extension Assembly
18 —-
Engine
47 11472 -488
Guide Extension
19 11464 -488
Engine Mounting Plate
48 736-0264
FI-Wash. 5/16" Scr.*
20
712-0123 Hex Nut 5/16-24 Thd.*
49
11481 -488
Hopper Assembly
21
736-0119 L-Wash. 5/16" Scr.*
50
710-0601
Hex Wash. Hd. Self-Tap Scr.
22
738-0521
Shaft
5/16-18 x.50" Lg.
24
726-0221
Push Cap 51 11479
Clamp Rod Assembly
25
711-0494
Spacer
52 11454 -452
Back-up Plate
26
734-1056
Wheel Ass'y. - Comp. N
53 11467 -488
Inlet Guide Assembly
27 736-0100 FI-Wash. .50" I.D.*
54
09966
Knob Ass'y.
28
710-0624
Hex Bolt 5/16-24 x 1.50" Lg.*
55
11480
Stop Washer
29 712-0429 Elastic Stopnut 5/16-18 Thd.
56 711-0566
Chute Pivot Rod
30 710-0237
Hex Bolt 5/16-24 x.62" Lg.*
764-0126 Bag (Not Shown)
31
714-0144
Cotter Pin 1/8" Dia. x 1.00"
Lg.* (Special)
(497 - Yard-Man Red)
(488 - Mack Truck Yellow)
When ordering parts, if color or finish is important use the ap¬
propriate color code shown above (e.g. Mack Truck Yellow
•For faster service obtain standard nuts, bolts and washers
locally. If these items cannot be obtained locally, order by
part number and size as shown on parts list.
Finish—11907 (488).)
The engine is not under warranty by the shredder manufacturer. If repairs or service is needed on the
engine, please contact your nearest authorized engine service outlet. Check the “Yellow Pages” of
your telephone book under “Engines—Gasoline.”
Find It Fast
In The
Yellow Pages
11
