ASSEMBLY
INSTRUCTIONS
ATTACHING
THE
LOWER
IS
LEAF
RAMP
SECTION
Hex
Bolt
-5/16-18
x
8-3/8"
Long
Flat
~
Yr^\
Washer
I
(
)
1
5/16"
I.D.
Hex
Lock
Nut
5/16-18
Thread
IMPORTANT:
This
unit
is
shipped
WITHOUT
GASOLINE
or
OIL.
After
assembly,
see
separate
engine
manual
for
proper
fuel
and
engine
oil
rec¬
ommendations.
NOTE:
To
determine
right
and
left
hand
sides
of
your
shredder,
stand
behind
and
face
the
hopper
(engine
is
at
the
front
of
the
unit).
Your
shredder
has
been
completely
assembled
at
the
factory,
except
for
the
hopper,
lower
and
upper
leaf
ramp
sections,
chute
deflector
and
the
catcher
bag.
The
hardware
pack
and
safety
glasses
are
also
included
in
the
carton.

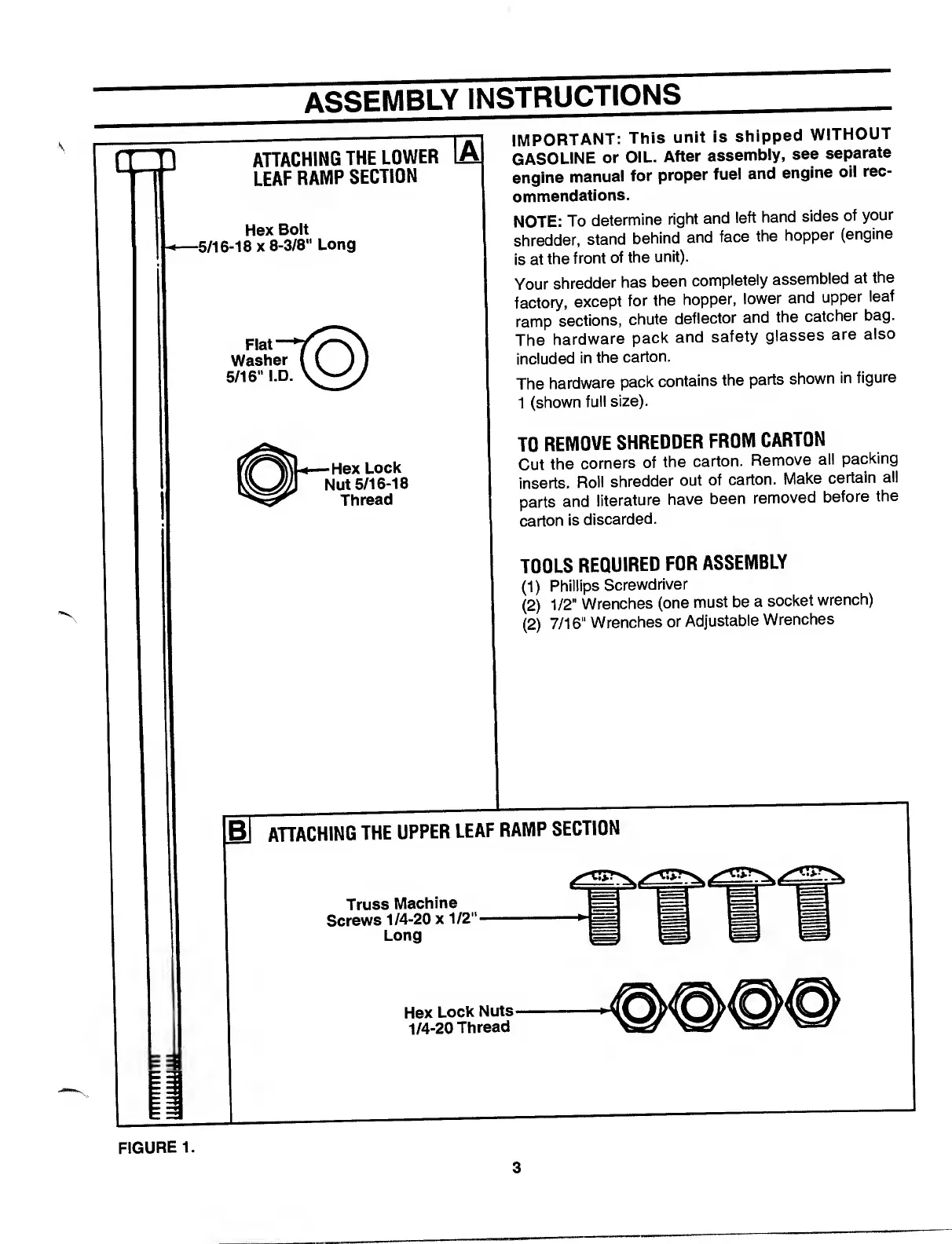

The
hardware
pack
contains
the
parts
shown
in
figure
1
(shown
full
size).
TO
REMOVE
SHREDDER
FROM
CARTON
Cut
the
corners
of
the
carton.
Remove
all
packing
inserts.
Roll
shredder
out
of
carton.
Make
certain
all
parts
and
literature
have
been
removed
before
the
carton
is
discarded.
TOOLS
REQUIRED
FOR
ASSEMBLY
(1)
Phillips
Screwdriver
(2)
1/2"
Wrenches
(one
must
be
a
socket
wrench)
(2)
7/16"
Wrenches
or
Adjustable
Wrenches
Bj
ATTACHING
THE
UPPER
LEAF
RAMP
SECTION
Truss
Machine
Screws
1/4-20
x
1/2"
Long
Hex
Lock
Nuts
1/4-20
Thread
FIGURE
