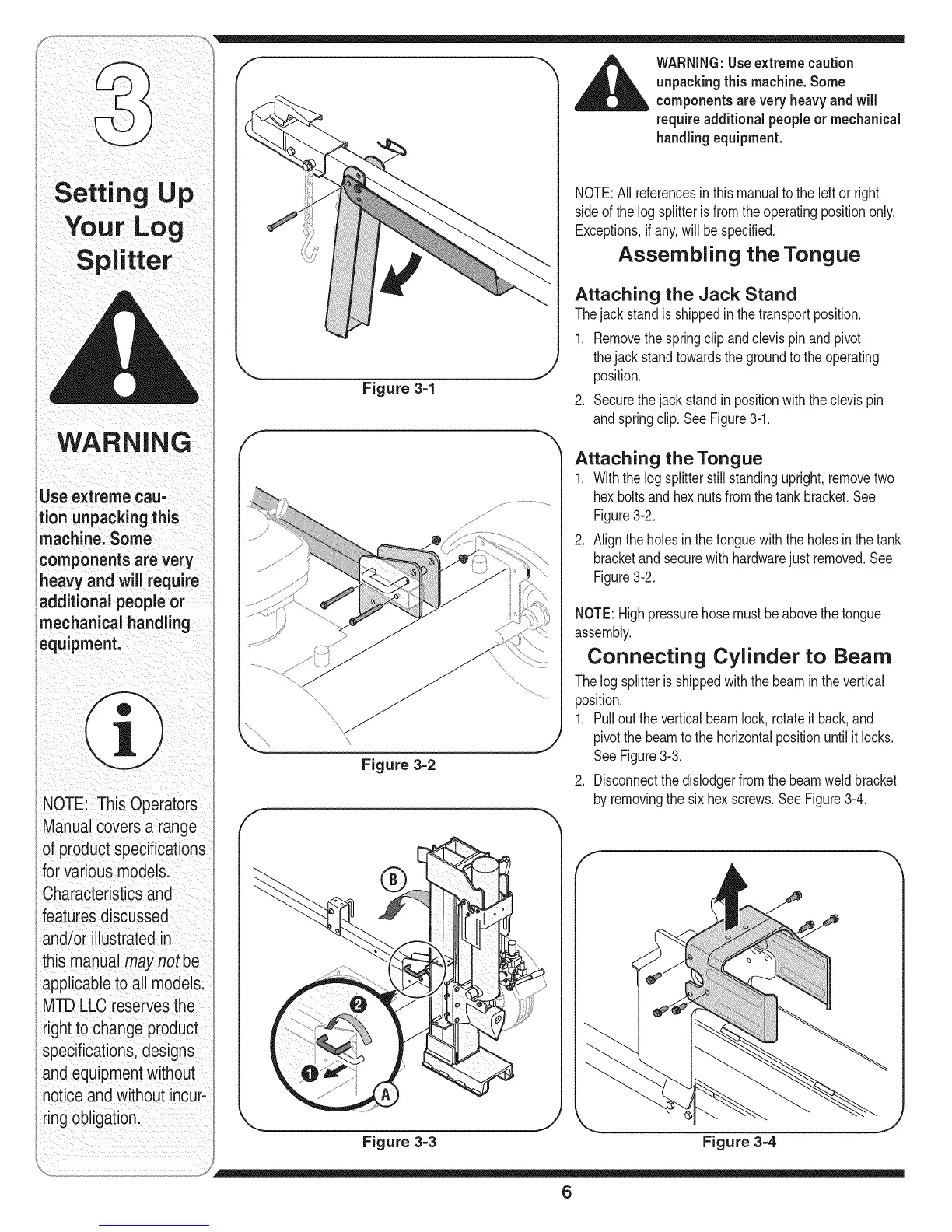

MTD 24BF572B729 - Page 6

YourLog
Splitter
i
WARNING
tion unpackingthis
machinei Some
componentsare,e y
heavy and will require
additional people or
mechanical handling
equipmenL
Manual covers a range
of productspecifications
for Variousmodels:
Characteristicsand
featUresdiscussed
and/or illustratedin
this manual
applicable to a!l models:
MTD LLC reSerVesthe
right to ChangeProduct
specifiCatiOns:designs
and equipment Without
notice andwith0ut inCur:
ring obligation:
"_ ,_ WARNING:Useextreme caution
unpacking this machine.Some
__ components arevery heavy and will
require additional people or mechanical
handlingequipment.
Figure 3-1
Figure 3=2
NOTE:All referencesin thismanualto the left or right
sideof thelog splitterisfromtheoperatingpositiononly.
Exceptions,ifany,willbespecified.
Assembling the Tongue
Attaching the Jack Stand
Thejackstandisshippedinthetransportposition.
1. Removethespringclipandclevispinand pivot
thejack standtowardsthegroundtotheoperating
position.
2. Securethejackstandin positionwiththeclevispin
andspringclip.SeeFigure3-1.
Attaching the Tongue
1. Withthelogsplitterstillstandingupright,removetwo
hexboltsandhexnutsfromthetankbracket.See
Figure3-2.
2. Aligntheholesinthetonguewiththeholesin thetank
bracketandsecurewithhardwarejust removed.See
Figure3-2.
NOTE:Highpressurehosemustbeabovethetongue
assembly.
Connecting Cylinder to Beam
Thelogsplitterisshippedwiththebeamin thevertical
position.
1. Pullouttheverticalbeamlock,rotateitback,and
pivotthebeamtothehorizontalpositionuntilitlocks.
SeeFigure3-3.
2. Disconnectthedislodgerfromthebeamweldbracket
byremovingthesixhexscrews.SeeFigure3-4.
,... j k,,
Figure 3=3 Figure 3-4
6
