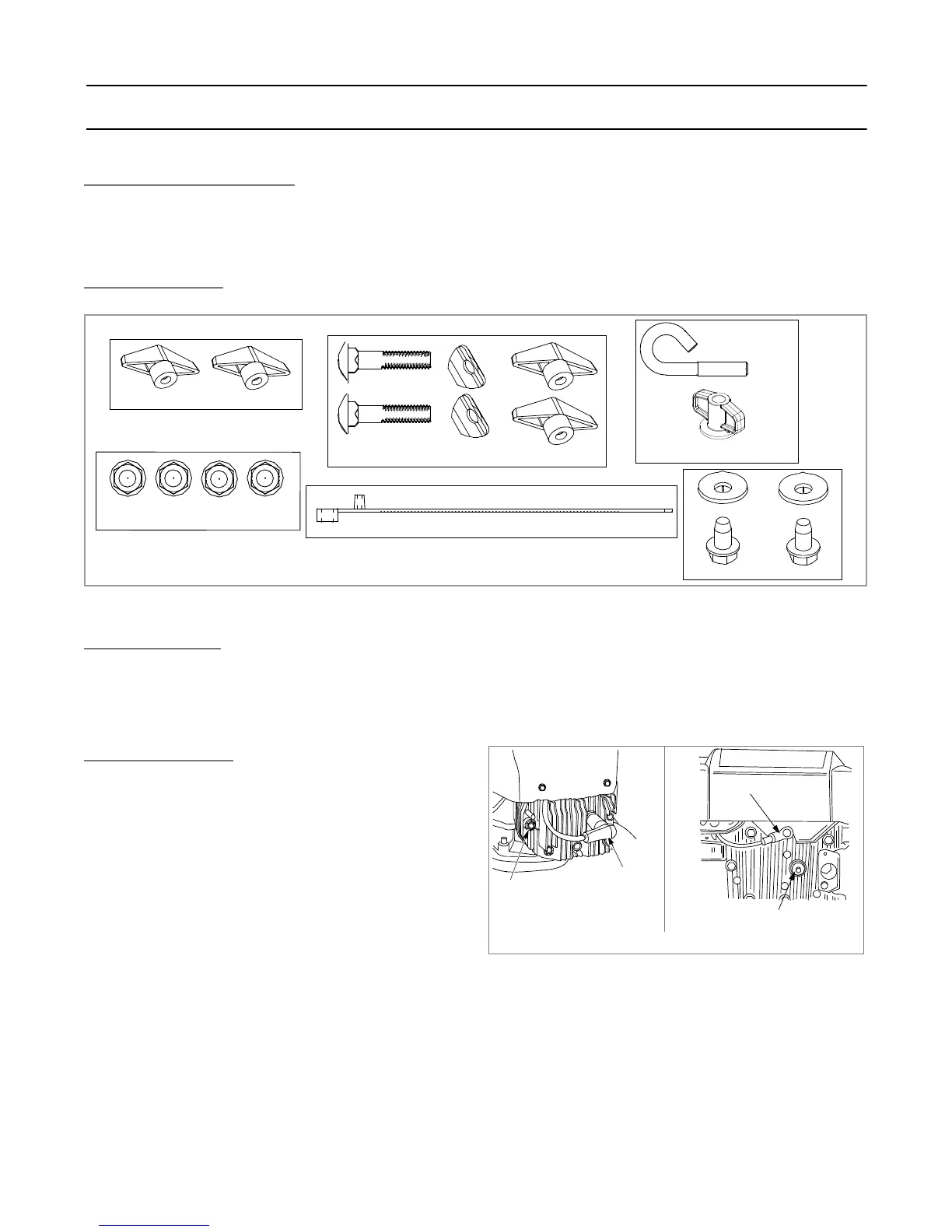

SECTION 3: ASSEMBLING YOUR LAWN MOWER
Unpacking Loose Parts
Once the carton is opened, you will find several loose parts like the wheels, handles, and chute deflector. A
hardware pack is also included in the carton. Make sure to remove all loose parts before discarding the carton.
Follow instructions below to attach these loose parts to your mower safely and properly for best performance.
Hardware Pack
For convenience of assembly, identify the pieces of the hardware pack according to Figure 1 below:
Figure 1
Tools Required
A set of adjustable wrenches
NOTE: Reference to right, left, front or back of the lawn mower is from the operating position only, unless otherwise
stated.
Spark Plug Wire
1. Disconnect spark plug wire from the spark plug, and
ground it against the engine.
2. If engine is equipped with a rubber boot, attach
rubber boot to a bolt on the engine to ground. See
Figure 2.
Group 1
Group 2
Group 5
Group 6
Group 3
Group 4
Spark
Plug
Bolt
Spark Plug
Spark Plug
Wire
Wire
Figure 2
