Controlsand Features
4
_pth Control Lever
Recoils Starter
Curb Hei¢
Adjustment Lever
(If Equipped)

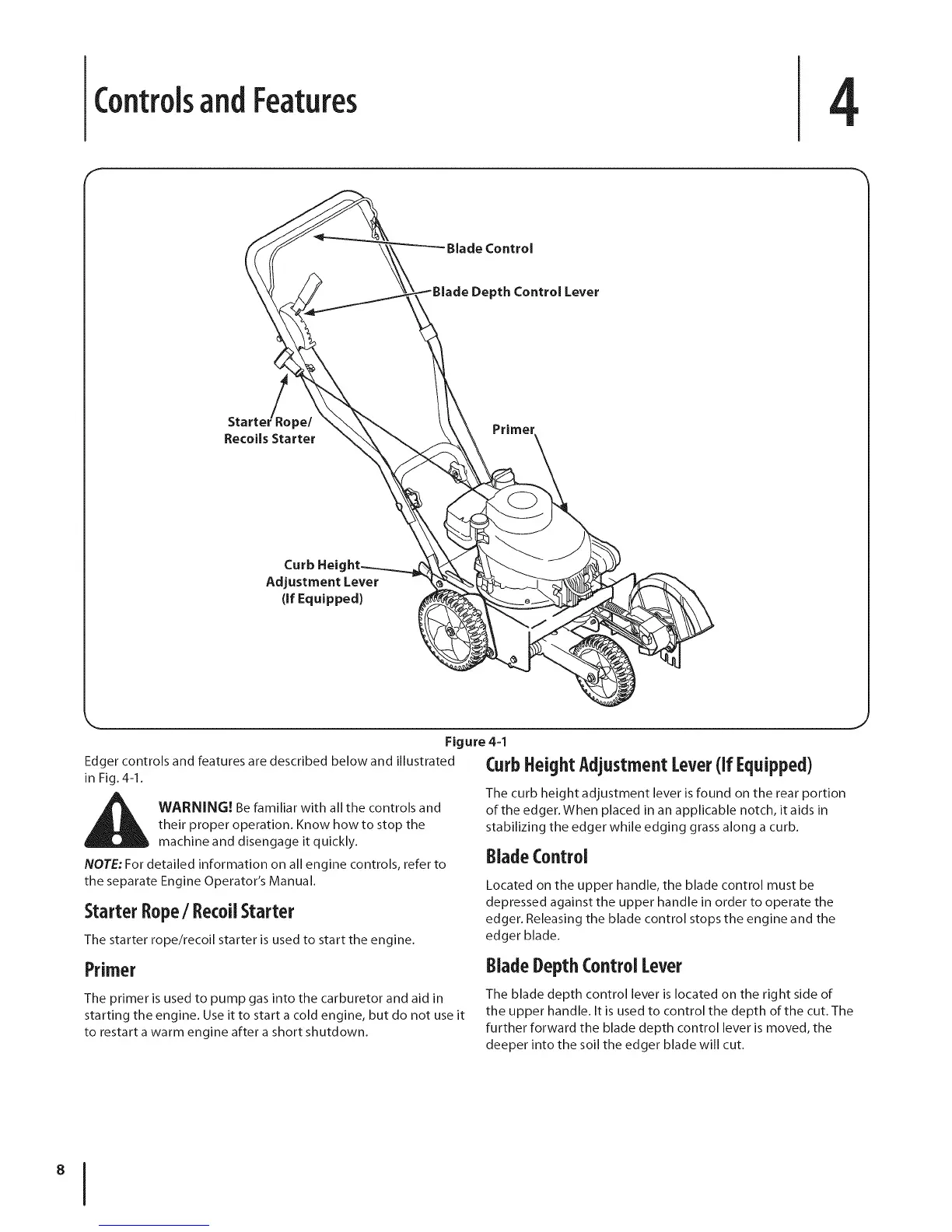

Edger controls and features are described below and illustrated
in Fig. 4-1.
i_ WARNING! Be familiar with all the controls and
their proper operation. Know how to stop the
machine and disengage it quickly.
NOTE: For detailed information on all engine controls, refer to
the separate Engine Operator's Manual.
StarterRope/ RecoilStarter
The starter rope/recoil starter is used to start the engine.
Figure 4=1
CurbHeightAdjustmentLever(if Equipped)
The curb height adjustment lever is found on the rear portion
of the edger. When placed in an applicable notch, it aids in
stabilizing the edger while edging grass along a curb.
8lade Control
Located on the upper handle, the blade control must be
depressed against the upper handle in order to operate the
edger. Releasing the blade control stops the engine and the
edger blade.
Primer 8lade DepthControl Lever
The primer is used to pump gas into the carburetor and aid in
starting the engine. Use it to start a cold engine, but do not use it
to restart a warm engine after a short shutdown.
The blade depth control lever is located on the right side of
the upper handle. It is used to control the depth of the cut. The
further forward the blade depth control lever is moved, the
deeper into the soil the edger blade will cut.
