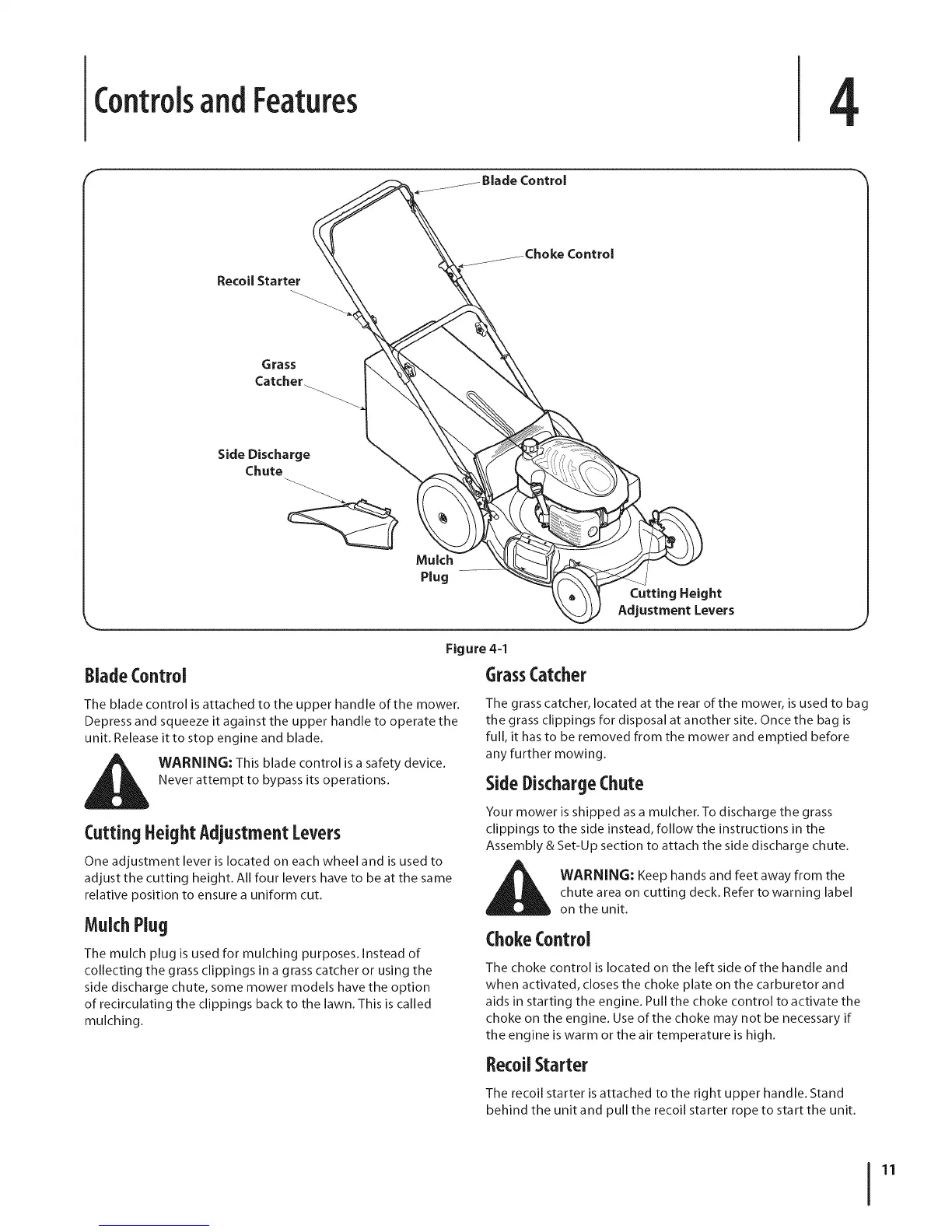

ControlsandFeatures
4
Recoil Starter
Grass
Catcher
BladeControl
Side Discharge
Chute
Cutting Height
Adjustment Levers
Figure 4-1
GrassCatcher
The blade control is attached to the upper handle of the mower.
Depress and squeeze it against the upper handle to operate the
unit. Release itto stop engine and blade.
i_ WARNING: This blade control is a safety device.
Never attempt to bypass its operations.
Cutting freight AdjustmentLevers
One adjustment lever is located on each wheel and is used to
adjust the cutting height. All four levers have to be at the same
relative position to ensure a uniform cut.
MulchPlug
The mulch plug is used for mulching purposes. Instead of
collecting the grass clippings in a grass catcher or using the
side discharge chute, some mower models have the option
of recirculating the clippings back to the lawn. This is called
mulching.
The grass catcher, located at the rear of the mower, is used to bag
the grass clippings for disposal at another site. Once the bag is
full, it has to be removed from the mower and emptied before
any further mowing.
SideDischargeChute
Your mower is shipped as a mulcher. To discharge the grass
clippings to the side instead, follow the instructions in the
Assembly & Set-Up section to attach the side discharge chute.
__ WARNING: Keep hands and feet away from the
chute area on cutting deck. Refer to warning label
• on the unit.
ChokeControl
The choke control is located on the left side of the handle and
when activated, closes the choke plate on the carburetor and
aids in starting the engine. Pull the choke control to activate the
choke on the engine. Use of the choke may not be necessary if
the engine is warm or the air temperature is high.
RecoilStarter
The recoil starter is attached to the right upper handle. Stand
behind the unit and pull the recoil starter rope to start the unit.
