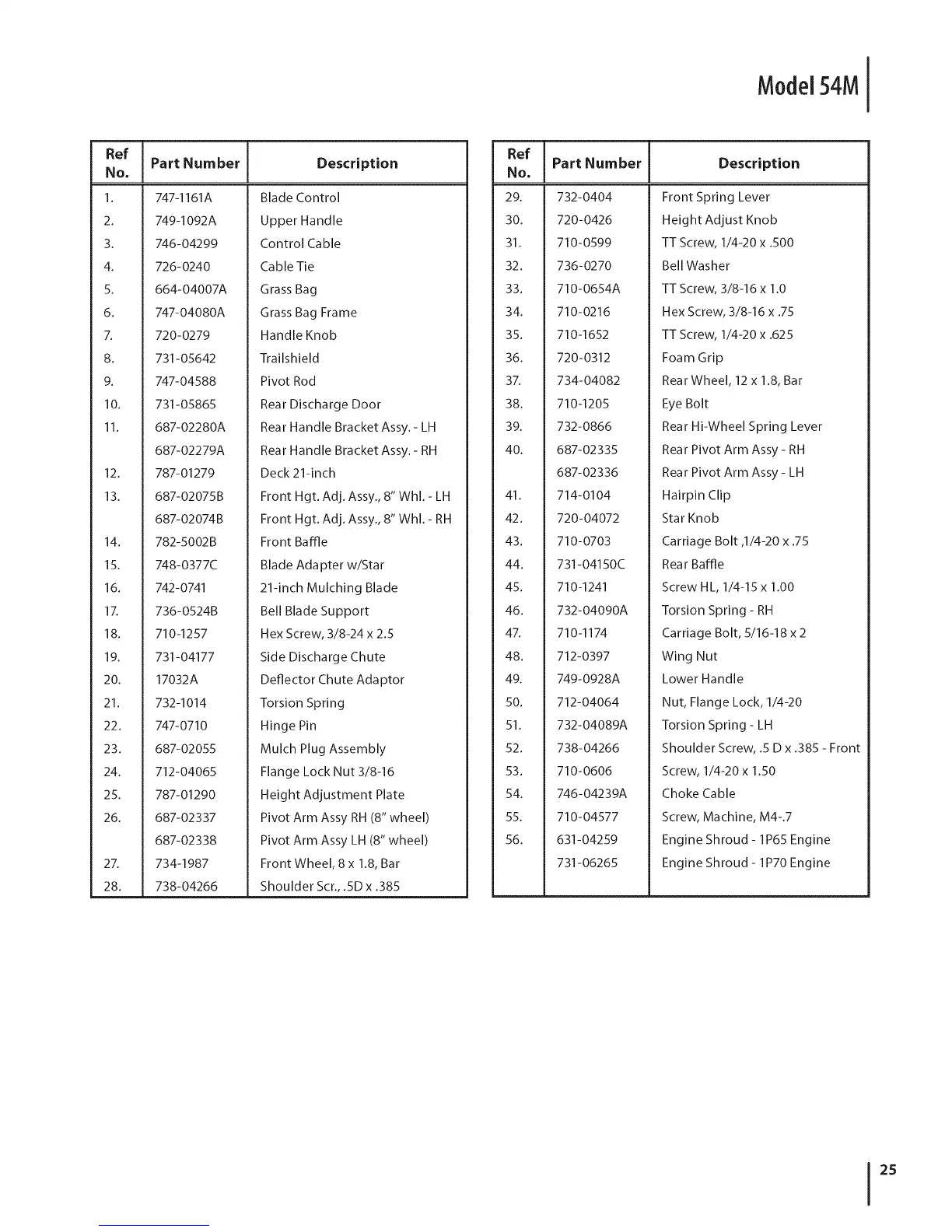

Model54M
Ref I Part Number
NO.
I
1. 747-1161A
2. 749-I092A
3. 746-04299
4. 726-0240
5. 664-04007A
6. 747-04080A
7. 720-0279
8. 731-05642
9. 747-04588
10. 731-05865
11. 687-02280A
687-02279A
12. 787-01279
13. 687-02075B
687-02074B
14. 782-5002B
15. 748-0377C
16. 742-0741
IZ 736-0524B
18. 710-1257
19. 731-04177
20. 17032A
21. 732-1014
22. 747-0710
23. 687-02055
24. 712-04065
25. 787-01290
26. 687-02337
687-02338
27. 734-1987
28. 738-04266
Description
Blade Control
Upper Handle
Control Cable
Cable Tie
Grass Bag
Grass Bag Frame
Handle Knob
Trailshield
Pivot Rod
Rear Discharge Door
Rear Handle Bracket Assy.- LH
Rear Handle Bracket Assy.- RH
Deck 21-inch
Front Hgt. Adj. Assy., 8" Whl. - LH
Front Hgt. Adj. Assy., 8" Whl. - RH
Front Baffle
Blade Adapter w/Star
21-inch Mulching Blade
Bell Blade Support
Hex Screw, 3/8-24 x 2.5
Side Discharge Chute
Deflector Chute Adaptor
Torsion Spring
Hinge Pin
Mulch Plug Assembly
Flange Lock Nut 3/8-16
Height Adjustment Plate
Pivot Arm Assy RH (8" wheel)
Pivot Arm Assy LH (8" wheel)
Front Wheel, 8 x 1.8, Bar
Shoulder Scr., .5D x .385
Ref
No.
29. 732-0404
30. 720-0426
31. 710-0599
32. 736-0270
33. 710-0654A
34. 710-0216
35. 710-1652
36. 720-0312
37. 734-04082
38. 710-1205
39. 732-0866
40. 687-02335
687-02336
41. 714-0104
42. 720-04072
43. 710-0703
44. 731-04150C
45. 710-1241
46. 732-04090A
47. 710-1174
48. 712-0397
49. 749-0928A
50. 712-04064
51. 732-04089A
52. 738-04266
53. 710-0606
54. 746-04239A
55. 710-04577
56. 631-04259
731-06265
Part Number Description
Front Spring Lever
Height Adjust Knob
TT Screw, 1/4-20 x .500
Bell Washer
TT Screw, 3/8-16 x 1.0
Hex Screw, 3/8-16 x .75
TT Screw, 1/4-20 x .625
Foam Grip
Rear Wheel, 12 x 1.8, Bar
Eye Bolt
Rear Hi-Wheel Spring Lever
Rear Pivot Arm Assy - RH
Rear Pivot Arm Assy - LH
Hairpin Clip
Star Knob
Carriage Bolt ,1/4-20 x .75
Rear Baffle
Screw HL, 1/4-15 x 1.00
Torsion Spring - RH
Carriage Bolt, 5/16-18 x 2
Wing Nut
Lower Handle
Nut, Flange Lock, 1/4-20
Torsion Spring - LH
Shoulder Screw, .5 D x .385 - Front
Screw, 1/4-20 x 1.50
Choke Cable
Screw, Machine, M4-.7
Engine Shroud - 1P65 Engine
Engine Shroud - 1P70 Engine
25
