MTD 601 - Illustrated Parts List

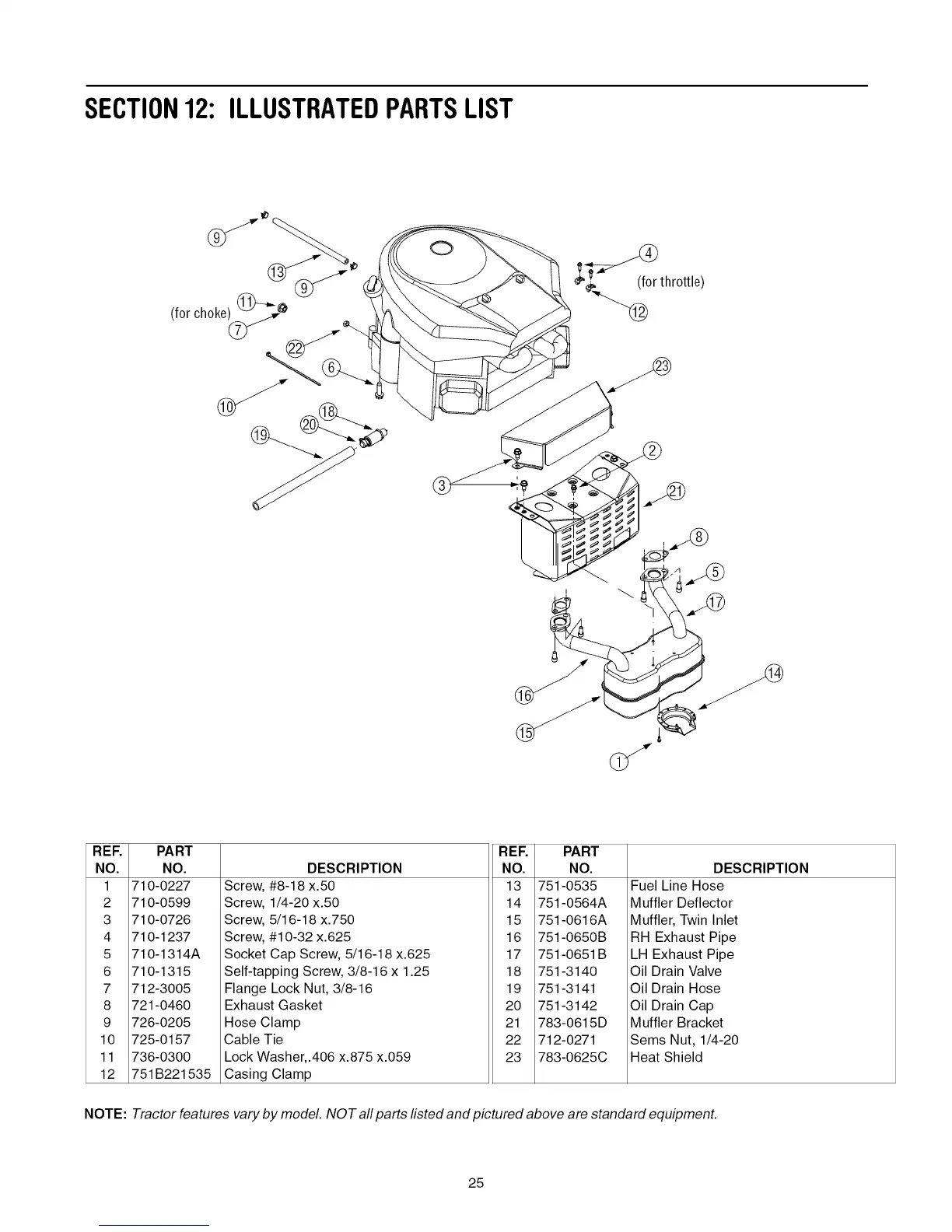

SECTION12: ILLUSTRATEDPARTSLIST
(for choke)(_ @
(forthrottle)
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
NOTE:
PART
NO.
710-0227
710-0599
710-0726
710-1237
710-1314A
710-1315
712-3005
721-0460
726-0205
725-0157
736-0300
751 B221535
REF.
DESCRIPTION NO.
Screw, #8-18 x.50 13
Screw, 1/4-20 x.50 14
Screw, 5/16-18 x.750 15
Screw, #10-32 x.625 16
Socket Cap Screw, 5/16-18 x.625 17
Self-tapping Screw, 3/8-16 x 1.25 18
Flange Lock Nut, 3/8-16 19
Exhaust Gasket 20
Hose Clamp 21
Cable Tie 22
Lock Washer,.406 x.875 x.059 23
Casing Clamp
PART
NO.
751-0535
751-0564A
751-0616A
751-0650B
751-0651B
751-3140
751-3141
751-3142
783-0615D
712-0271
783-0625C
DESCRIPTION
Fuel Line Hose
Muffler Deflector
Muffler, Twin Inlet
RH Exhaust Pipe
LH Exhaust Pipe
Oil Drain Valve
Oil Drain Hose
Oil Drain Cap
Muffler Bracket
Sems Nut, 1/4-20
Heat Shield
Tractor features vary by model. NOT all parts fisted and pictured above are standard equipment.
25
