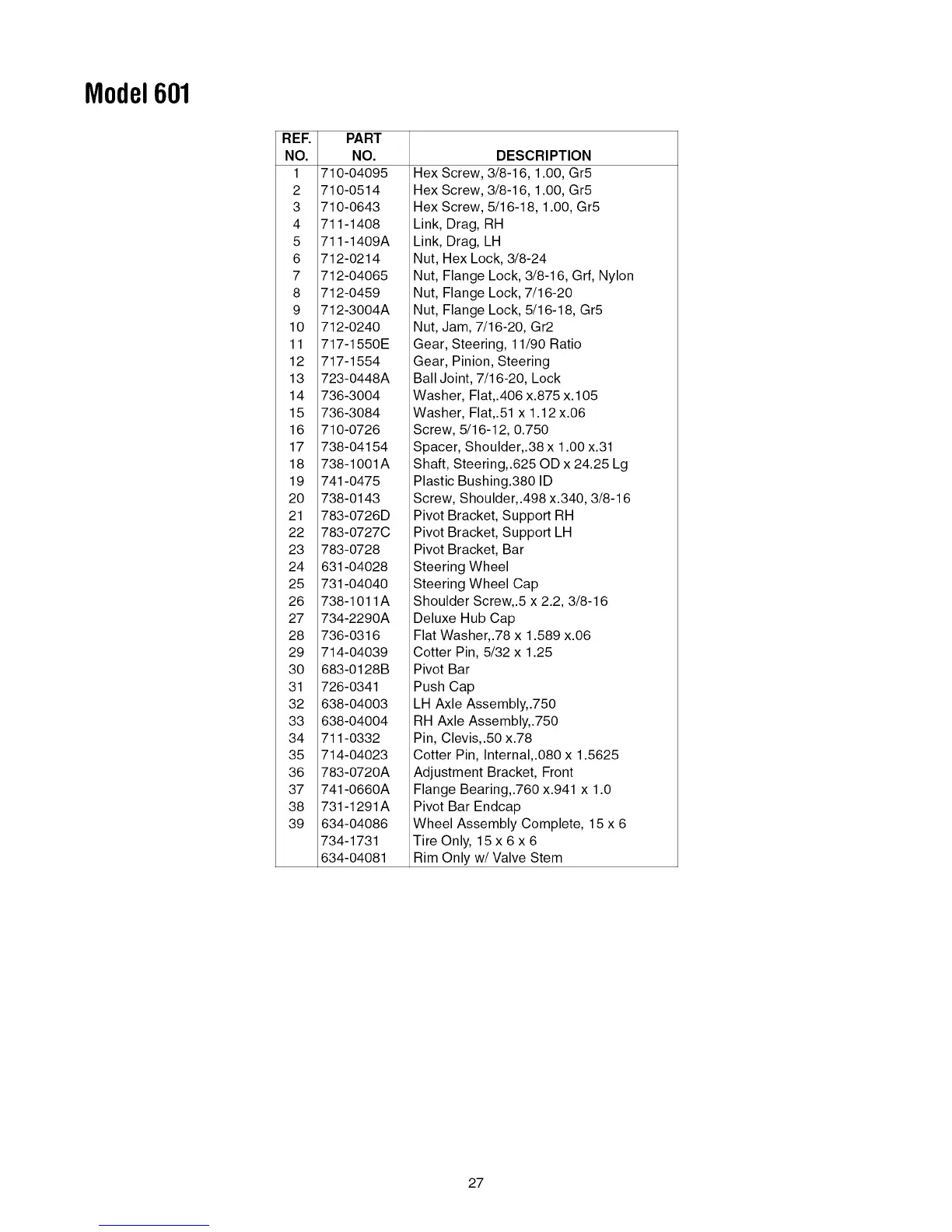

MTD 601 - Page 27

Model601
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
PART
NO.
710-04095
710-0514
710-0643
711-1408
711-1409A
712-0214
712-04065
712-0459
712-3004A
712-0240
717-1550E
717-1554
723-0448A
736-3004
736-3084
710-0726
738-04154
738-1001A
741-0475
738-0143
783-0726D
783-0727C
783-0728
631-04028
731-04040
738-1011A
734-2290A
736-0316
714-04039
683-0128B
726-0341
638-04003
638-04004
711-0332
714-04023
783-0720A
741-0660A
731-1291A
634-04086
734-1731
634-04081
DESCRIPTION
Hex Screw, 3/8-16, 1.00, Gr5
Hex Screw, 3/8-16, 1.00, Gr5
Hex Screw, 5/16-18, 1.00, Gr5
Link, Drag, RH
Link, Drag, LH
Nut, Hex Lock, 3/8-24
Nut, Flange Lock, 3/8-16, Grf, Nylon
Nut, Flange Lock, 7/16-20
Nut, Flange Lock, 5/16-18, Gr5
Nut, Jam, 7/16-20, Gr2
Gear, Steering, 11/90 Ratio
Gear, Pinion, Steering
Ball Joint, 7/16-20, Lock
Washer, Flat,.406 x.875 x.105
Washer, Flat,.51 x 1.12x.06
Screw, 5/16-12, 0.750
Spacer, Shoulder,.38 x 1.00 x.31
Shaft, Steering,.625 OD x 24.25 Lg
Plastic Bushing.380 ID
Screw, Shoulder,.498 x.340, 3/8-16
Pivot Bracket, Support RH
Pivot Bracket, Support LH
Pivot Bracket, Bar
Steering Wheel
Steering Wheel Cap
Shoulder Screw,.5 x 2.2, 3/8-16
Deluxe Hub Cap
Flat Washer,.78 x 1.589 x.06
Cotter Pin, 5/32 x 1.25
Pivot Bar
Push Cap
LH Axle Assembly,.750
RH Axle Assembly,.750
Pin, Clevis,.50 x.78
Cotter Pin, Internal,.080 x 1.5625
Adjustment Bracket, Front
Flange Bearing,.760 x.941 x 1.0
Pivot Bar Endcap
Wheel Assembly Complete, 15 x 6
Tire Only, 15 x 6 x 6
Rim Only w/Valve Stem
