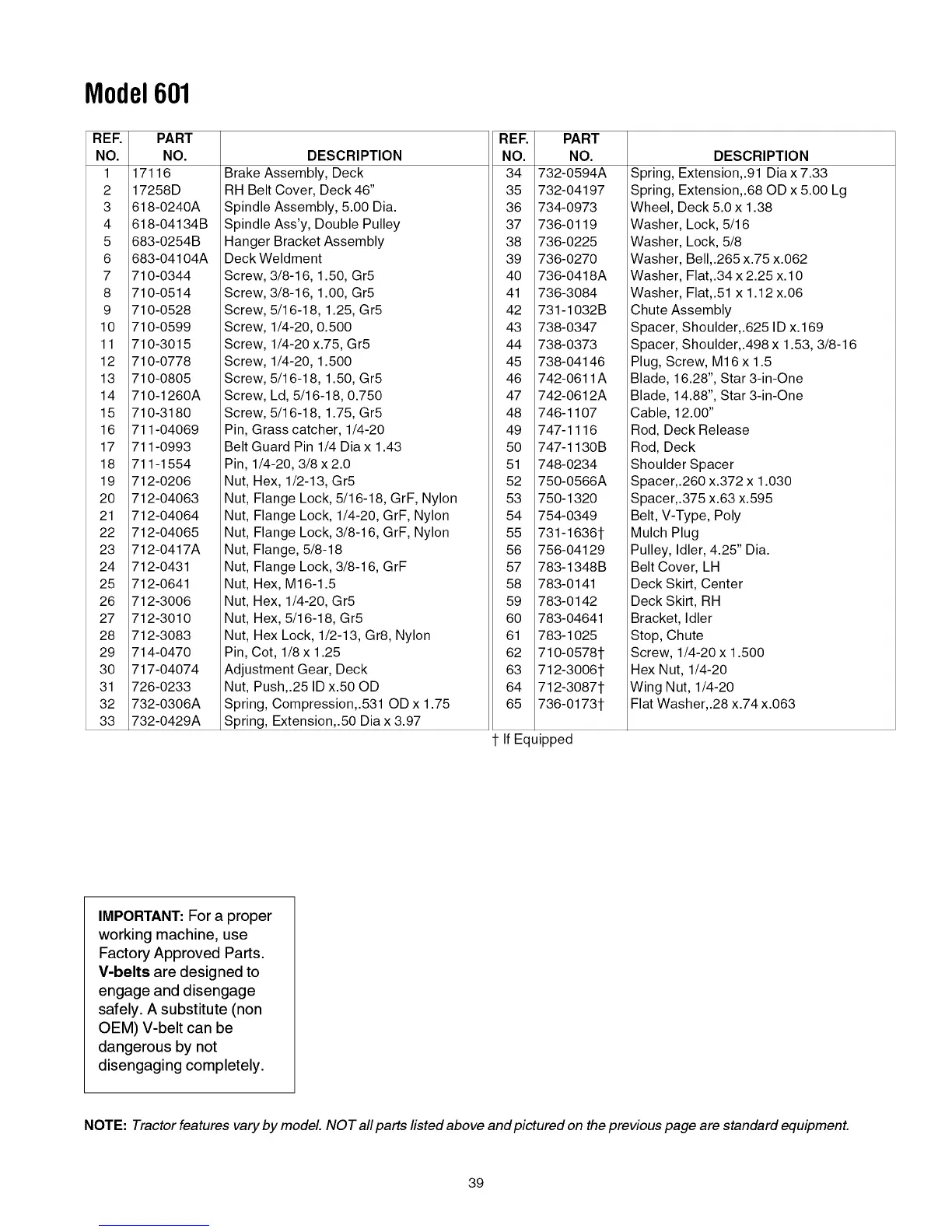

MTD 601 - Page 39

Model601
REE PART
NO. NO.
1 17116
2 17258D
3 618-0240A
4 618-04134B
5 683-0254B
6 683-04104A
7 710-0344
8 710-0514
9 710-0528
10 710-0599
11 710-3015
12 710-0778
13 710-0805
14 710-1260A
15 710-3180
16 711-04069
17 711-0993
18 711-1554
19 712-0206
20 712-04063
21 712-04064
22 712-04065
23 712-0417A
24 712-0431
25 712-0641
26 712-3006
27 712-3010
28 712-3083
29 714-0470
30 717-04074
31 726-0233
32 732-0306A
33 732-0429A
DESCRIPTION
Brake Assembly, Deck
RH Belt Cover, Deck 46"
Spindle Assembly, 5.00 Dia.
Spindle Ass'y, Double Pulley
Hanger Bracket Assembly
Deck Weldment
Screw, 3/8-16, 1.50, Gr5
Screw, 3/8-16, 1.00, Gr5
Screw, 5/16-18, 1.25, Gr5
Screw, 1/4-20, 0.500
Screw, 1/4-20 x.75, Gr5
Screw, 1/4-20, 1.500
Screw, 5/16-18, 1.50, Gr5
Screw, Ld, 5/16-18, 0.750
Screw, 5/16-18, 1.75, Gr5
Pin, Grass catcher, 1/4-20
Belt Guard Pin 1/4 Dia x 1.43
Pin, 1/4-20, 3/8 x 2.0
Nut, Hex, 1/2-13, Gr5
Nut, Flange Lock, 5/16-18, GrF, Nylon
Nut, Flange Lock, 1/4-20, GrF, Nylon
Nut, Flange Lock, 3/8-16, GrF, Nylon
Nut, Flange, 5/8-18
Nut, Flange Lock, 3/8-16, GrF
Nut, Hex, M16-1.5
Nut, Hex, 1/4-20, Gr5
Nut, Hex, 5/16-18, Gr5
Nut, Hex Lock, 1/2-13, Gr8, Nylon
Pin, Cot, 1/8x 1.25
Adjustment Gear, Deck
Nut, Push,.25 ID x.50 OD
Spring, Compression,.531 OD x 1.75
Spring, Extension,.50 Dia x 3.97
REF. PART
NO. NO.
34 732-0594A
35 732-04197
36 734-0973
37 736-0119
38 736-0225
39 736-0270
40 736-0418A
41 736-3084
42 731-1032B
43 738-0347
44 738-0373
45 738-04146
46 742-0611A
47 742-0612A
48 746-1107
49 747-1116
50 747-1130B
51 748-0234
52 750-0566A
53 750-1320
54 754-0349
55 731-1636t
56 756-04129
57 783-1348B
58 783-0141
59 783-0142
60 783-04641
61 783-1025
62 710-0578t
63 712-3006t
64 712-3087t
65 736-01731-
t If Equipped
DESCRIPTION
Spring, Extension,.91 Dia x 7.33
Spring, Extension,.68 OD x 5.00 Lg
Wheel, Deck 5.0 x 1.38
Washer, Lock, 5/16
Washer, Lock, 5/8
Washer, Bell,.265 x.75 x.062
Washer, Flat,.34 x 2.25 x. 10
Washer, Flat,.51 x 1.12 x.06
Chute Assembly
Spacer, Shoulder,.625 ID x. 169
Spacer, Shoulder,.498 x 1.53, 3/8-16
Plug, Screw, M16 x 1.5
Blade, 16.28", Star 3-in-One
Blade, 14.88", Star 3-in-One
Cable, 12.00"
Rod, Deck Release
Rod, Deck
Shoulder Spacer
Spacer,.260 x.372 x 1.030
Spacer,.375 x.63 x.595
Belt, V-Type, Poly
Mulch Plug
Pulley, Idler, 4.25" Dia.
Belt Cover, LH
Deck Skirt, Center
Deck Skirt, RH
Bracket, Idler
Stop, Chute
Screw, 1/4-20 x 1.500
Hex Nut, 1/4-20
Wing Nut, 1/4-20
Flat Washer,.28 x.74 x.063
IMPORTANT:For a proper
working machine, use
Factory Approved Parts.
V-belts are designed to
engage and disengage
safely. A substitute (non
OEM) V-belt can be
dangerous by not
disengaging completely.
NOTE: Tractor features vary by model NOT all parts listed above and pictured on the previous page are standard equipment.
39
