MTD 601 - Know Your Lawn Tractor

SECTION4: KNOWYOURLAWNTRACTOR
A
B
\
G
H
J
C
D
E
K
L
I
I
I
- NOTE: Steering Wheel not shown for clarity,

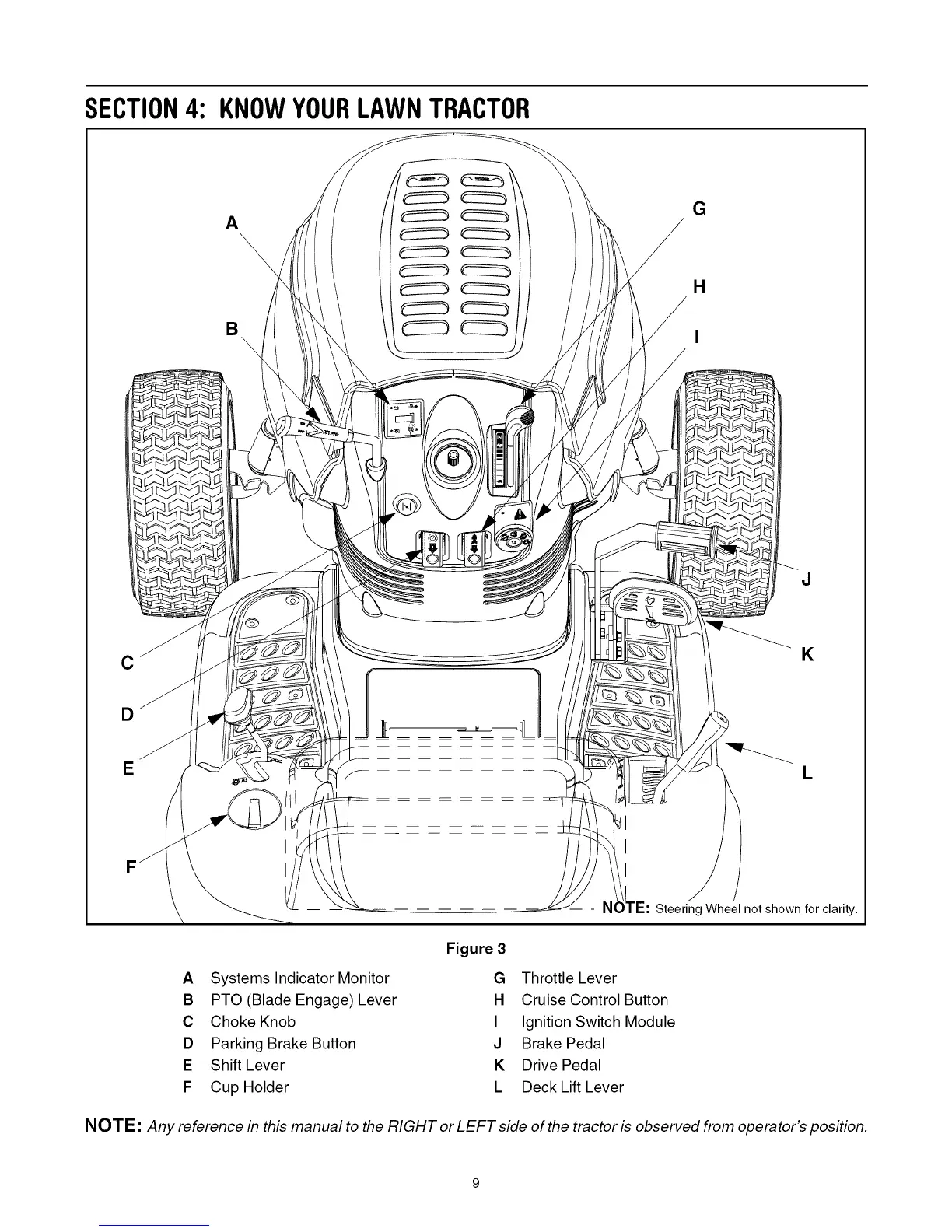

Figure 3
A Systems Indicator Monitor G Throttle Lever
B PTO (Blade Engage) Lever H Cruise Control Button
C Choke Knob I Ignition Switch Module
D Parking Brake Button J Brake Pedal
E Shift Lever K Drive Pedal
F Cup Holder L Deck Lift Lever
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.
