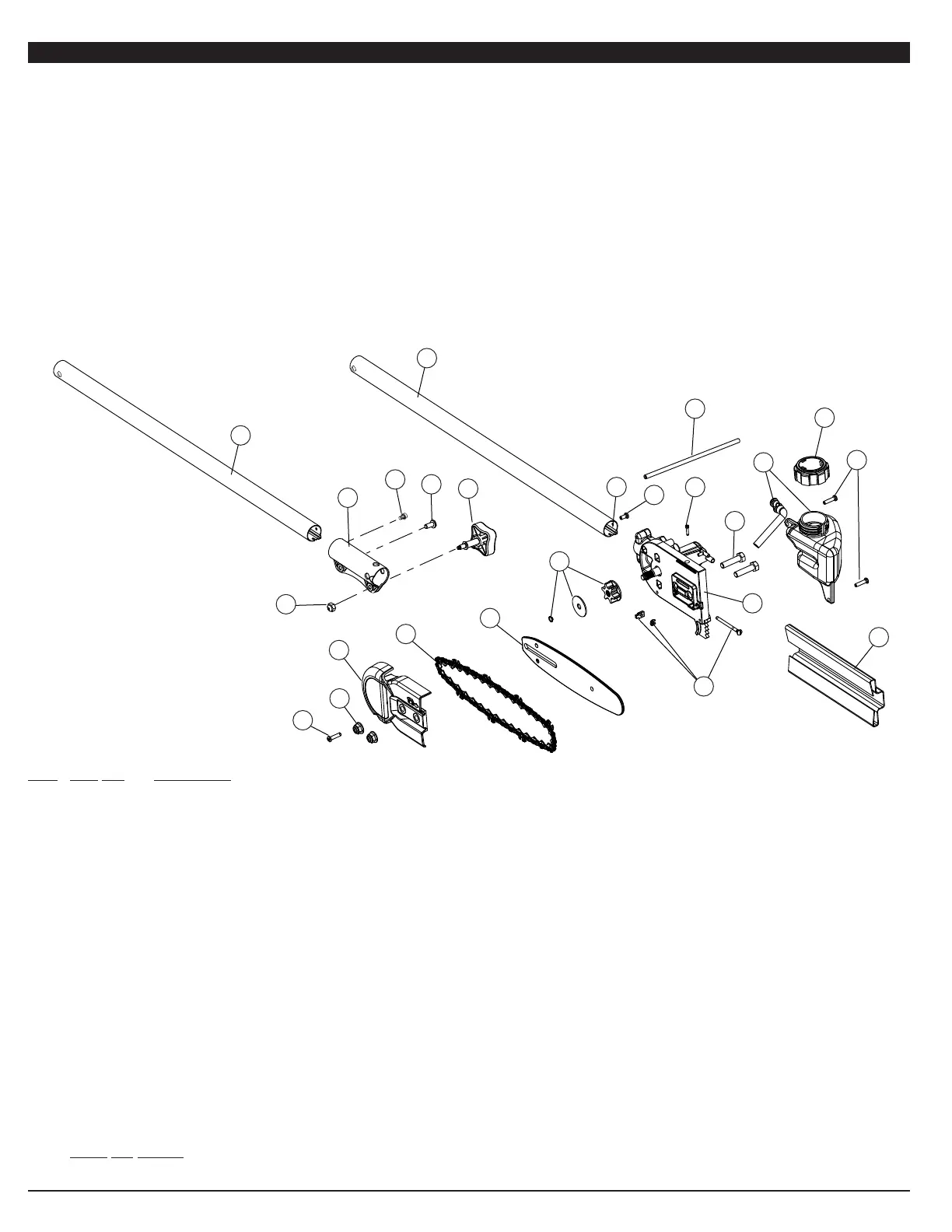

PARTS LIST
REPLACEMENT PARTS - MODEL PS720
POLE SAW ATTACHMENT
19
Item
Part No. Description
1 753-04352 Extension Boom
2 753-1190 Split Boom Coupler (includes 3-6)
3 791-182057 Screw
4 791-181617 Bolt
5 791-181981 Adjustment Knob
6 753-04386 Knob Retaining Nut
7 753-05724 Drive Shaft Housing (includes 8)
8 791-181166 Flexible Drive Shaft
9 791-180288 Screw
10 753-05586 Oil Tank Assembly
11 753-05587 Fuel Cap Assembly
12 791-181345 Screw
13 753-05588 Oil Line
14 753-05589 Screw
15 753-05591 Nut
16 753-05593 Chain Guard
17 753-05592 Chain
18 753-05594 Bar
19 753-05595 Sprocket Assembly
20 753-05596 Bolt
21 753-05597 Chain Tension Hardware Assembly
22 753-05598 Chain Cover
23 753-05599 Gearbox Assembly (includes 14 & 19)
* Items not Shown
* 791-612605 Hanger
* 753-05774 Allen Wrench
