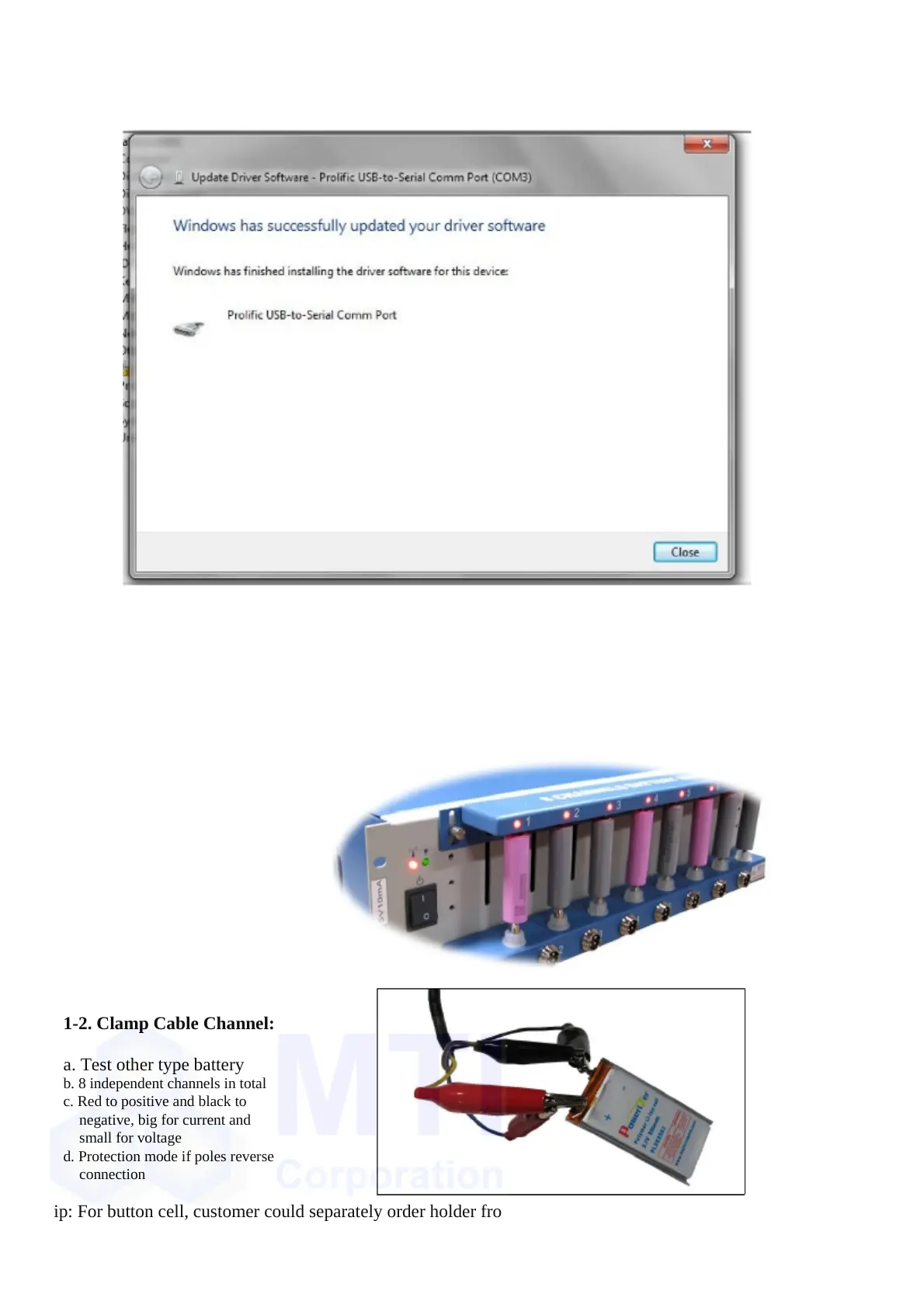

d. Click “OK”---“Next” to finish the installation and then you will see a new device in “device manager” like
below, please memorize your own COM number:
e. Installation is done.
Testing
1. MTI’s battery analyzer provide two ways to test your sample in terms of different battery type, they are:
1-1. Cylinder Channel:
a. Test cylinder battery
b. Height adjustable by set screw
c. 8 independent channels in total
d. Upper to positive and lower to
negative
e. Protection mode if poles reverse
connection
1-2. Clamp Cable Channel:
a. Test other type battery
b. 8 independent channels in total
c. Red to positive and black to
negative, big for current and
small for voltage
d. Protection mode if poles reverse
connection
Tip: For button cell, customer could separately order holder from MTI at
