MTI PLUNGER LOCKS™ PRODUCT MANUAL
1
3
2
4

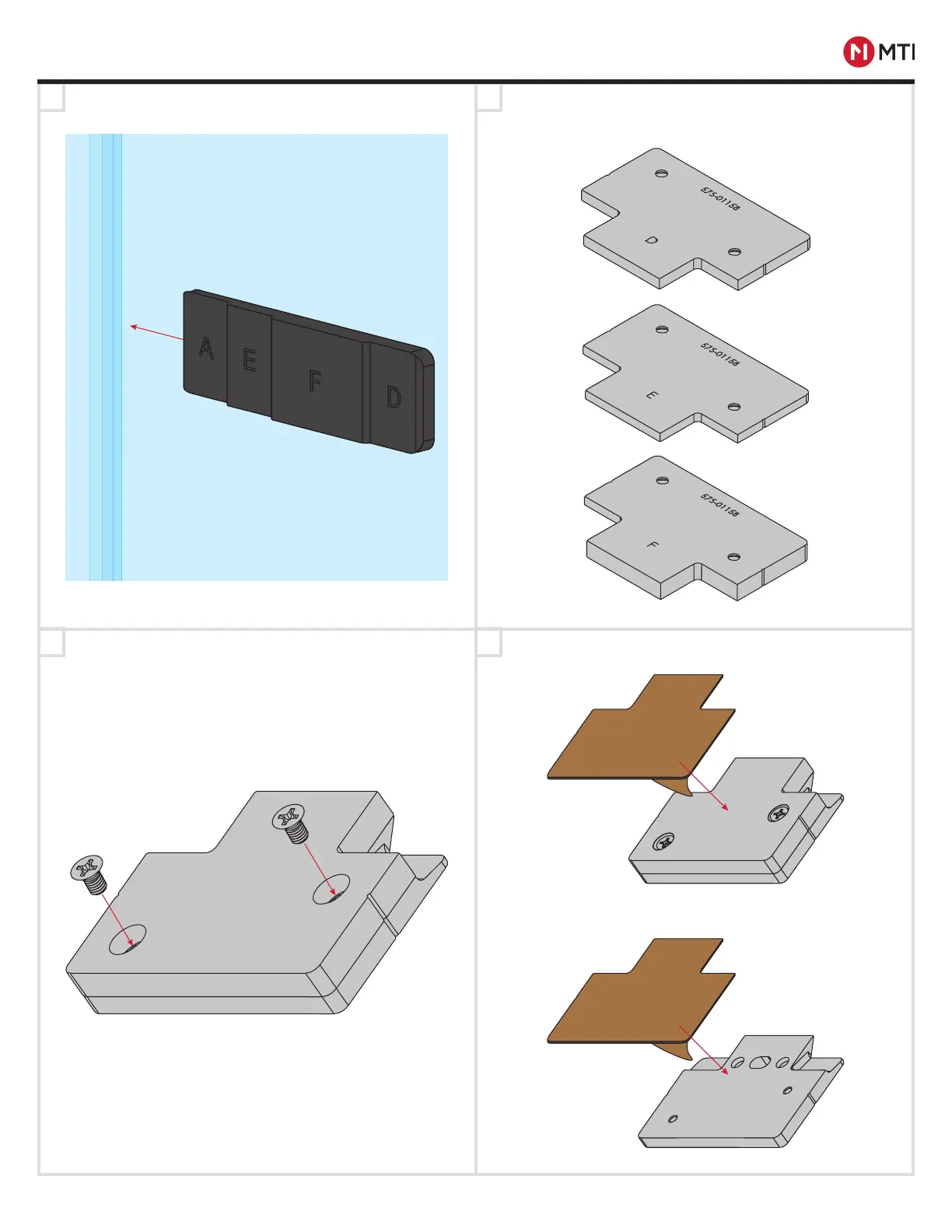

ATTACHING SPACERS
Insert the gauge into the gap between the front and back
panel doors.
The letter closest to the edge behind the front panel
indicates the spacer required to fill the gap. “A” does not
require an additional spacer.
Secure the spacer to the latch using the two included
screws.
Apply adhesive to the back of the spacer or to the back
of the latch if the spacer is not used.
OR
