MTI Plunger Lock - Latch Placement and Template B

6
MTI P/N 063-00259 rev A ©2019 MTI All Rights Reservedwww.mobiletechinc.com | T:800.426.6844
MTI PLUNGER LOCKS™ PRODUCT MANUAL
5 6
7 8

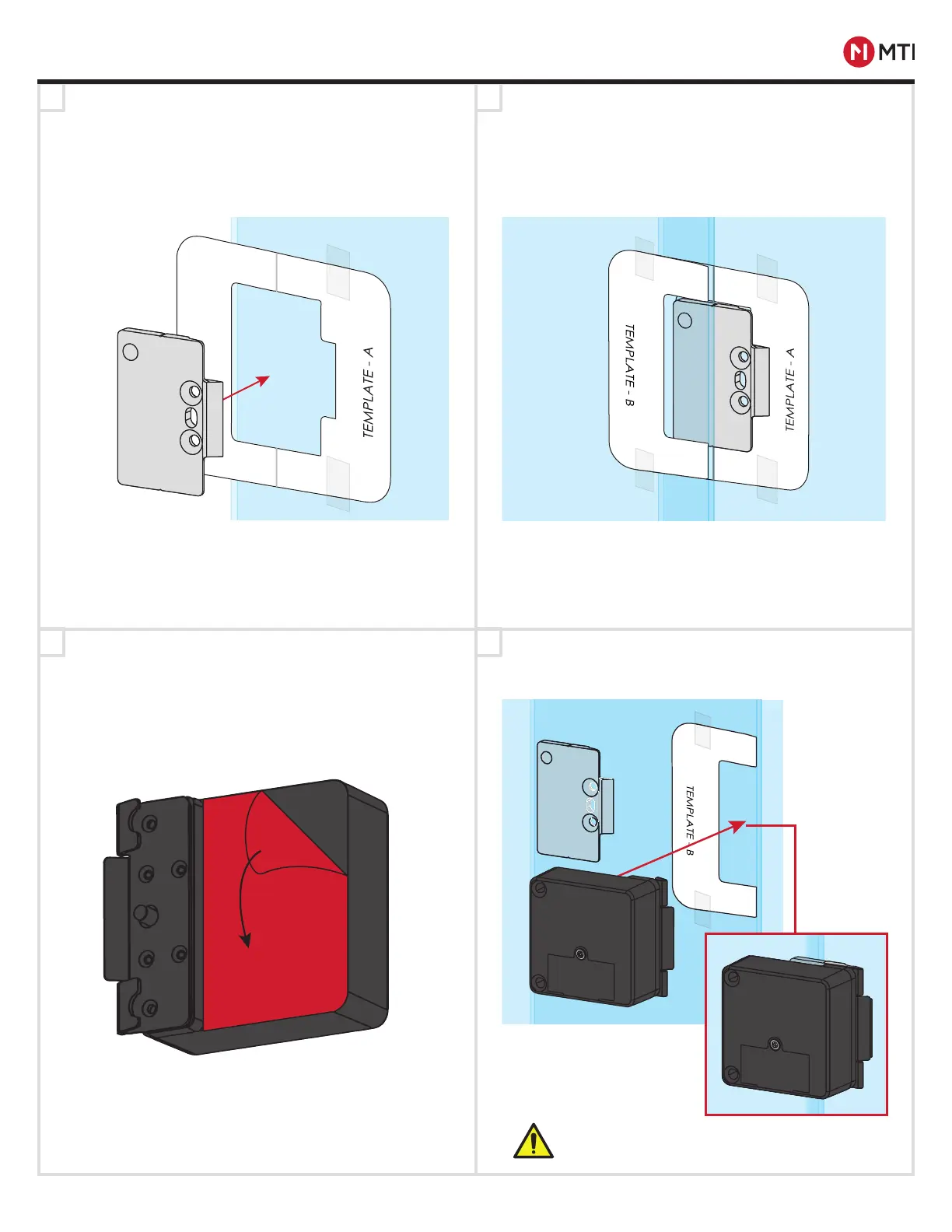

Place the latch into the opening on the template taped to
the back cabinet door’s surface.
Slide the remaining door so lines up with the line on
Template A. Place Template B on the front door so it
lines up with Template A. Remove Template A
Place the lock body in Template B, ensuring that the
latch on the back is flush to the edge of the door.
Remove Template B.
Peel VHB on the back of the lock body.
Note: Make sure keys have been programmed
to lock prior to this step.
