MTX Thunder 3202 - Page 2

OR

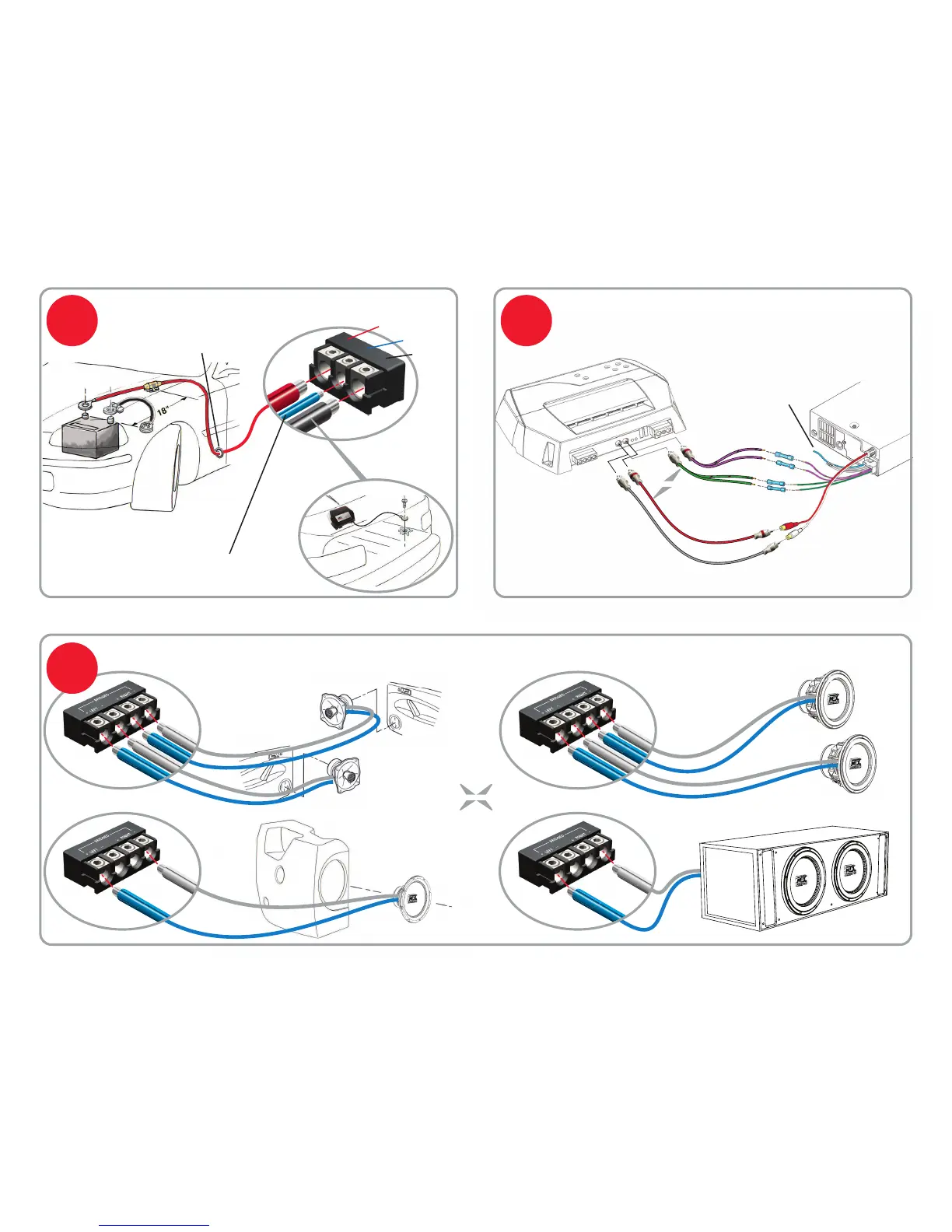

CONNECT SIGNAL
2
12-8 AWG
12-8 AWG
+BATT
REM
-GND
8-4 AWG
8-4 AWG
16 AWG
Disconnect Battery Negative (–) Cable
Prior to Installing Amplifier
Connect to Source Unit
Remote Turn-on
/Power Antenna Wire
Remove Paint
Remove Paint
From Metal
From Metal
Remove Paint
From Metal
Ground To Metal of Vehicle
Ground To Metal of Vehicle
Ground To Metal of Vehicle
CONNECT SPEAKERS
CONNECT POWER
1
3
≥2ohm
≥2ohm
≥4ohm
+
–
+
–
+
–
OR
12-8 AWG
12-8 AWG
≥2ohm
≥2ohm
+
–
+
–
+
–
≥4ohm
Remote Turn-on
/Power Antenna Wire
(Do not use with Smart-Engage
RCA to Line Level Adapters)
StreetWires
Firewall Bushing
