MTX TXC6.1 - MIDRANGE MOUNTING

MIDRANGE
MOUNTING
To
get
the
best
possible
music
reproduction,
it
is
important
to
isolate
the
sound
that
is
produced
from
the
rear
of
the
speaker
from
the
sound
that
is
produced
from
the
front
of
the
speaker.
To
isolate
the
front
from
the
back
wave,
make
sure
the
speaker
is
mounted
in
a
baffle
or
plate,
so
that
the
back
of
the
speaker
is
in
a
sealed
chamber.

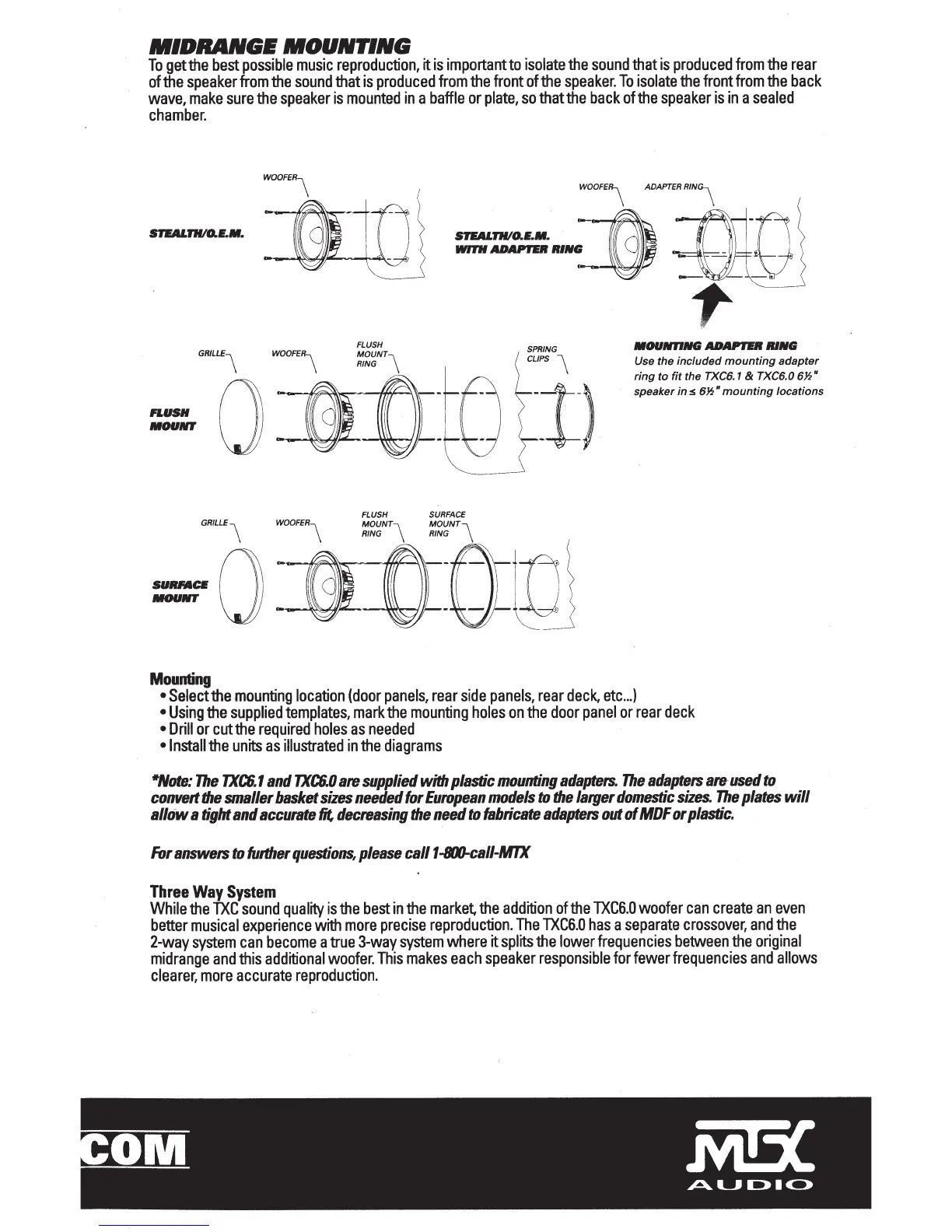

WOOF£\
ADAPTER
RIN\
SJUI.'IIf/O.E.M.
SUALnl/0.£1&
---Ao
llflfii.<IIMPIDIII-
~
FLUSH
MOUNT
FLUSH
SPRING
GRILLE\
WOOF£\
~~~NT\
CLIPS
\
0
=OJ~~
0
-_t)
FLUSH
SURFACE
GRILLE\
WOOFER\
MOUNT\
MOUNT\
\ \
RING
\
RING
\
~o=otO~ar
~
Mounting
MOUNTING
ADAPT&I
RING
Use
the included
mounting
adapter
ring
to
fit
the
TXC6.
1
&
TXC6.0
6~"
speaker
in~
6~"
mounting
locations
•
Select
the
mounting
location
(door
panels,
rear
side
panels,
rear
deck,
etc
...
)
•
Using
the
supplied
templates,
mark
the
mounting
holes
on
the
door
panel
or
rear
deck
•
Drill
or
cut
the
required
holes
as
needed
•Install
the
units
as
illustrated
in
the
diagrams
*Note:
Tbe
TXC6.1
and
TXC6.0
are
supplied
with plastic
mounting
adapters.
Tbe
adapters
are
used
to
convert
the
smaller
basket
sizes
needed
for
European
models
to
the
larger
domestic
sizes.
Tbe
plates
will
allow a tight
and
accurate
fit
decreasing
the
need
to
fabricate
adapters
out
of
MDF
or
plastic.
For
answers
to
further
questions,
please
caii1-I/OO-caii-MTX
Three
Way
System
While
the
TXC
sound
quality
is
the
best
in
the
market
the
addition
of
the
TXC6.0
woofer
can
create
an
even
better
musical
experience
with
more
precise
reproduction.
The
TXC6.0
has
a
separate
crossover,
and
the
2-way
system
can
become
a
true
3-way
system
where
it
splits
the
lower
frequencies
between
the
original
midrange
and
this
additional
woofer.
This
makes
each
speaker
responsible
for
fewer
frequencies
and
allows
clearer,
more
accurate
reproduction.
