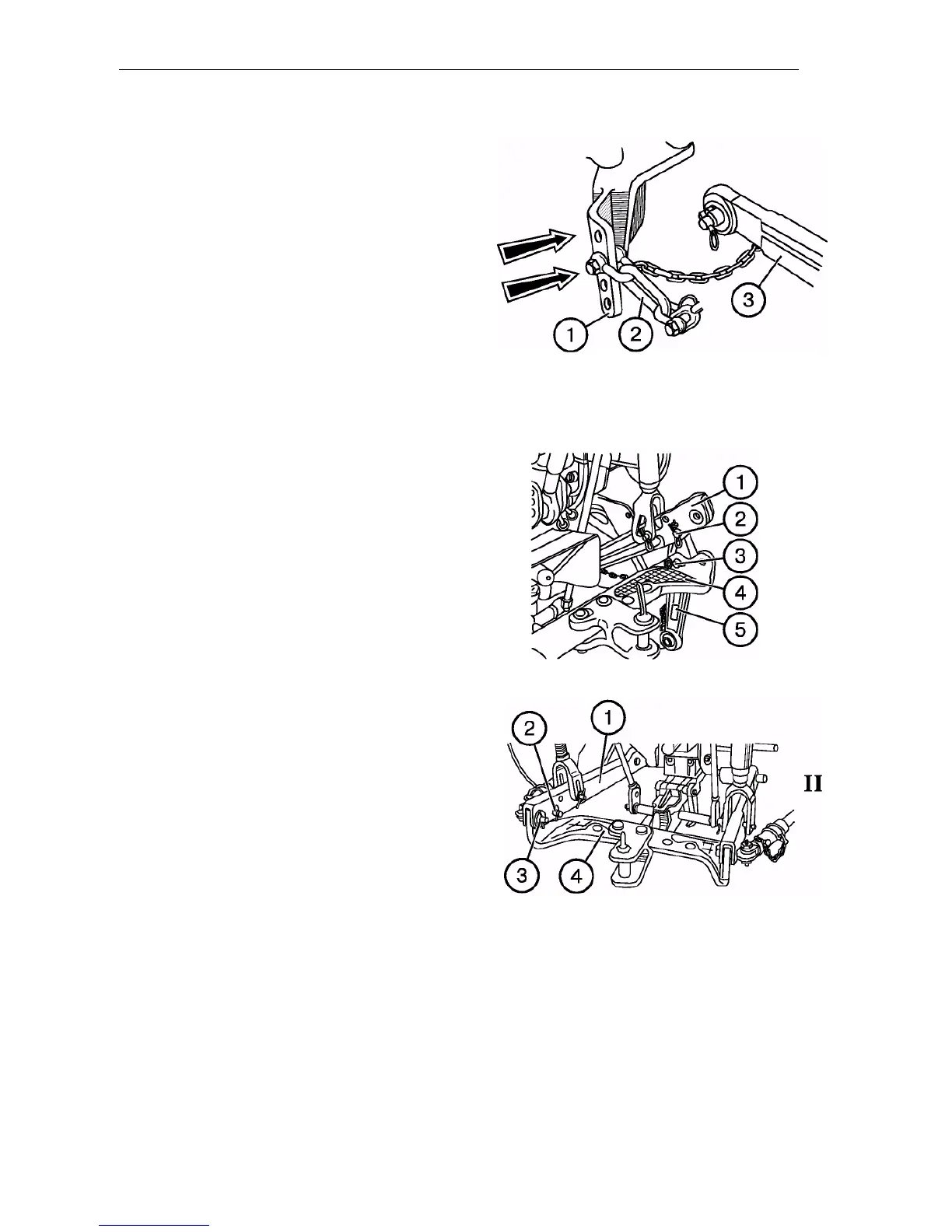

Additional hanger axles of the
lower rods of the hinging mecha-
nism
When cultivating high-stem crops, install
the lower rods (3) onto the additional
hanger axles. When doing this, attach the
restricting chains (2) to the third from bot-
tom aperture of the holder (1) for partial
locking of the implement and to the forth
one for full locking.
In the transport position the locking is en-
sured automatically.
Traction hitch mechanism ТСУ-1Ж** (cross-
bar) (4)
The traction hitch mechanism is used for
attaching the machines operating at the
speeds of up to 15 km/h. Tractors are
shipped from the factory with the cross-bar
installed as shown in Fig. I. To re-adjust
from the transport position (I) to the work-
ing state (II), proceed as follows:
1 . Unsplint and pull out the lug (3) and
remove the cross-bar (4).
2 . Unsplint and pull out the pin (2) and re -
move the rear ends of the lower rods (5).
3 . Fix cross-bar (4) onto the front ends of
lower rods (1), fix it with the lug (3), re-
stricting chains, pins (2) and splint pins
(see Fig. II).
In case of external or internal fitting of the re -
stricting chains, ensure the full locking of the
traction hitch mechanism. In case of fitting of
a traction hitch mechanism with telescopic tie
bars, attach them to the second from bottom
aperture of the holder and ensure the full
locking.
ATTENTION! It is forbidden to apply the
forks of the traction hitch mechanism to
operate the trailers at the speeds ex -
ceeding 15 km/h.
IMPORTANT! Make sure that the trac-
tion hitch mechanism is locked against
lateral swinging by adjusting the internal
or external tie bars.
_________________________________
* Not applied for tractors equipped with a hydraulic
lift.
