When preparing the unit for operation with
power control application, proceed as fol -
lows:

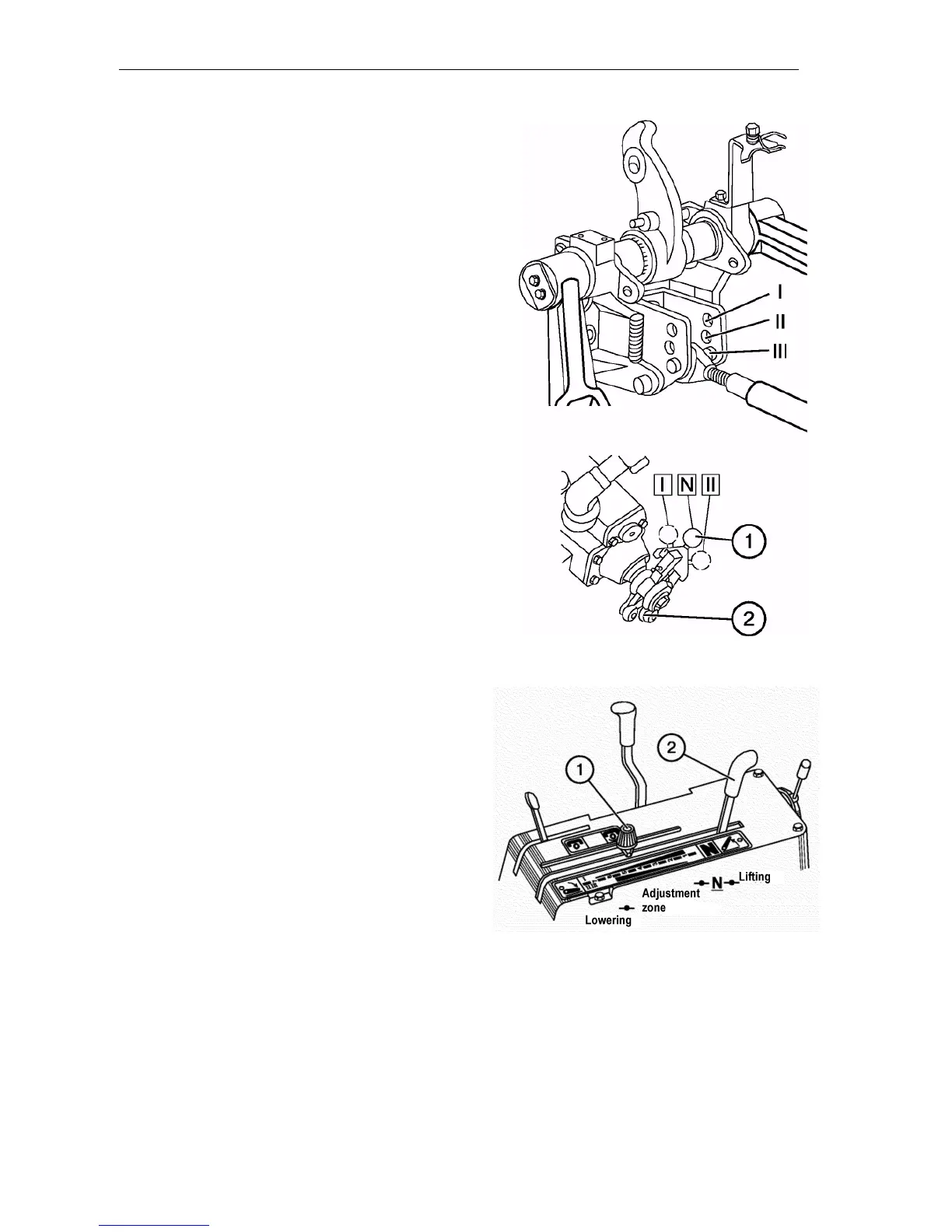

1 . Install a central rod of the hitch to the up -
per hole of the shackle (position I).
2 . Connect the mounted machine with the
tractor hitch.
3 . Enable the power control. To do this, lift
slightly the mounted machine above the
ground and put the switch (1) to the slot
of the power arm (2) by turning the
switch to the left (down tractor motion).
To facilitate the switching on, move the
switch forward (in the direction of the
tractor motion) to align it with the recess
on arm (2) prior to putting to slot.
4 . On wide-takeover machines, adjust the
support wheels and driven elements to
height. When unitizing with the
ploughs, lift the support wheel to the
top position.
Operation rule and techniques
At the beginning of the run, lower the
mounted machine by turning the handle
(2) forward. The farther the handle is put,
the deeper the soil tillage depth is.
As the arm (2) is pulled towards the opera -
tor, the depth is decreased. After adjust -
ment to the required depth, move the lim-
iter (1) along the console slot to the stop
against the handle and fix.
To raise the implement at the end of the
run, pull the handle (2) to the “lift” position
(towards yourself to the stop). As the lifting
is completed, the handle shall return spon -
taneously to the neutral position “N”.
At the beginning of each run, lower the
implement by pushing the handle (2) for -
ward to the stop against limiter (1).
