Installing twinned rear wheels

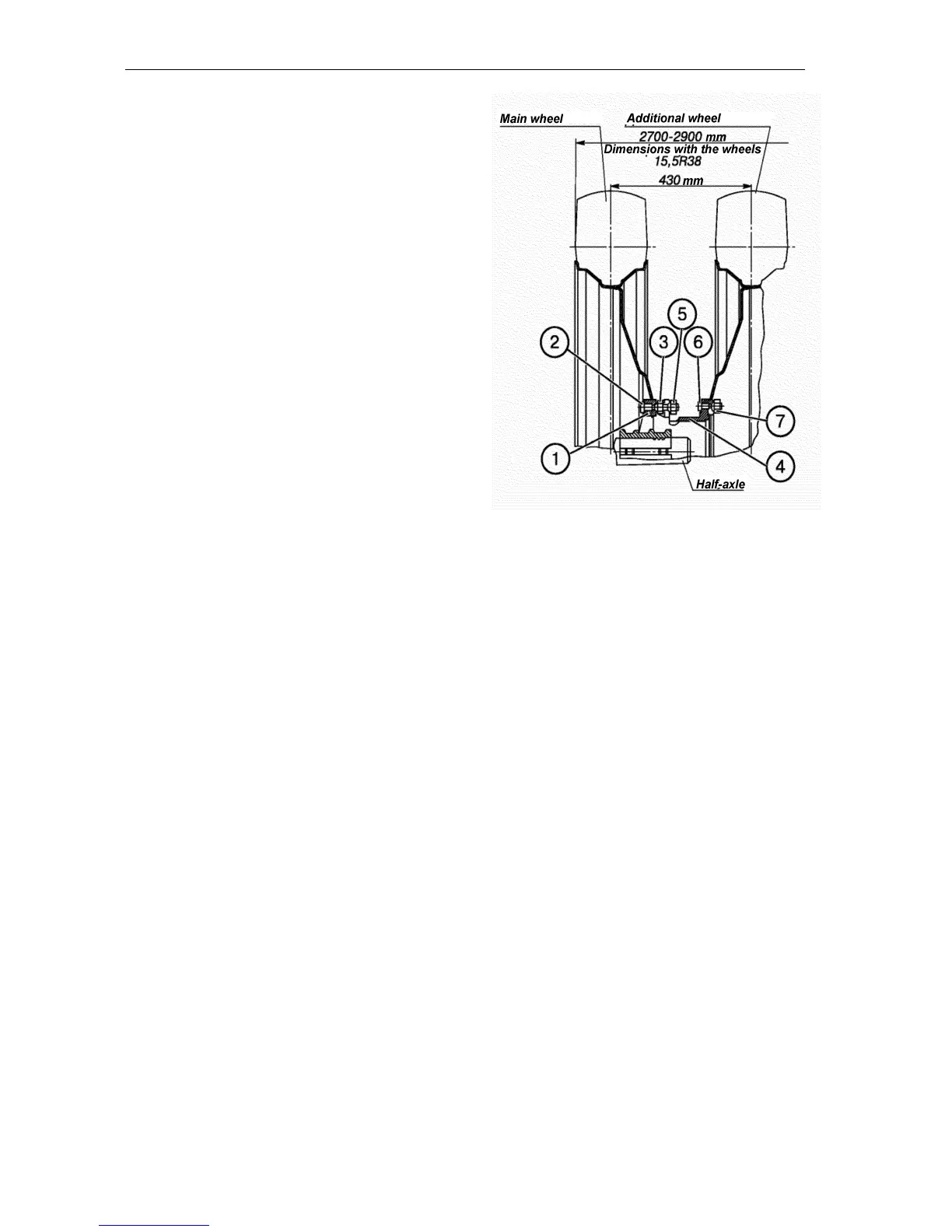

To increase cross-country ability, twinned
rear wheels with the standard size of 9.5-
42 and 15.5R38 can be installed on the
tractor with the use of additional spacer
plates. To mount an additional wheel,
remove the main one, press out short
bolts (2) from the hub (1) and press in the
long bolts included into the spacer plate
set. Place the main wheel on the bolts (2)
and fix it with the nuts (3). Then install the
spacer plate (4) on the same bolts and fix
it with nuts (5). Then mount the additional
wheel on the spacer plate bolts (6) and
fix it with nuts (7). The nut tightening
torque for fastening the rear wheels is
300…350 N•m (30…35 kgf•m).
ATTENTION! It is forbidden to use
twinned wheels to increase traction
force on the hook.
