Adjusting the control of the power (position) governor

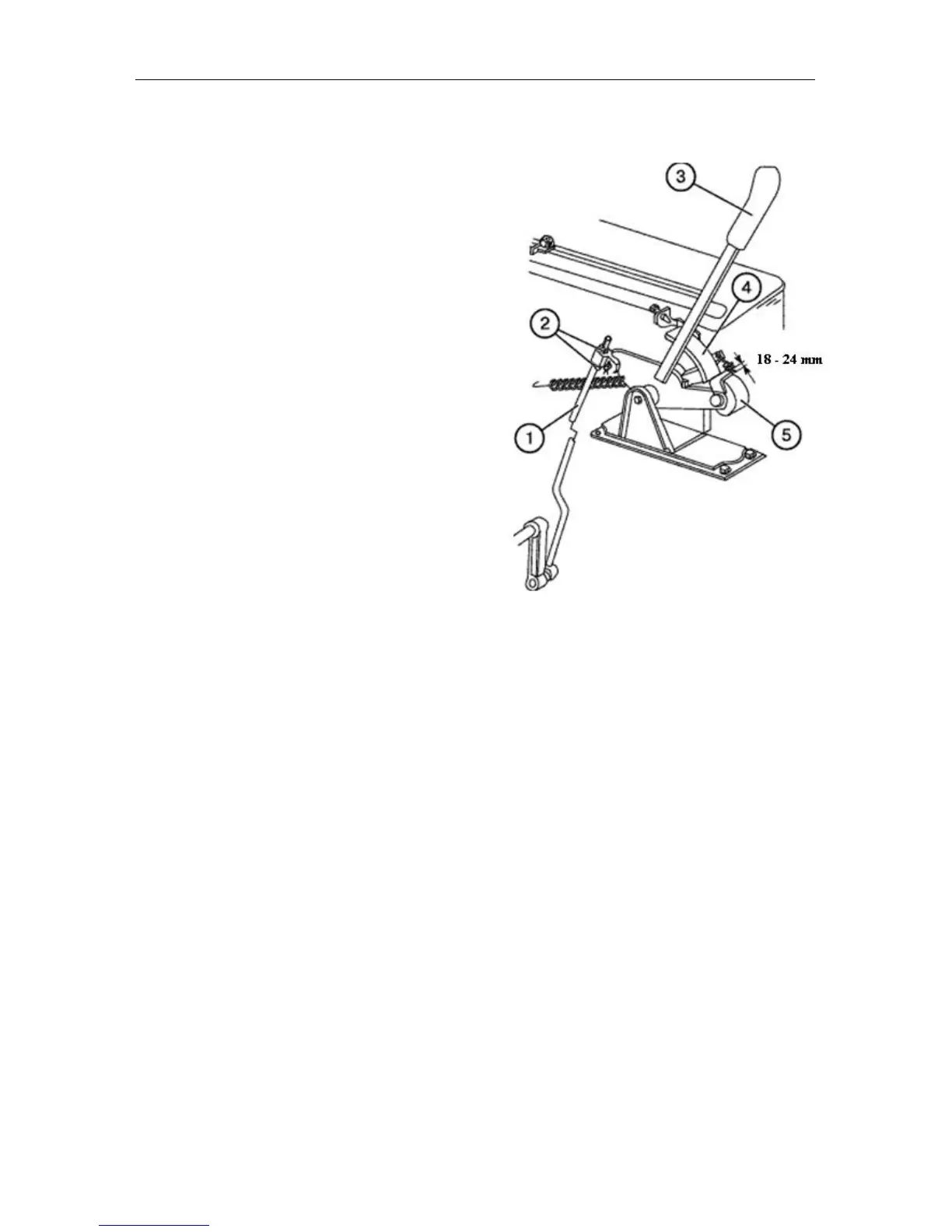

1. To adjust the control rod of the gov-
ernor, proceed as follows:
Adjust the length of the rod (1) by means
of the nuts (2) in such a way that a clear-
ance of 18 to 24 mm would be formed
between the rubber roller (5) and edge of
the sector (4) when moving the lever (3)
to the rearmost position with respect to
the tractor motion.
