MTZ Seat
The seat is provided with mechanical
suspension consisting of two spiral tor-
sion springs and a gas-filled two-way
shock absorber. Shear-type guiding
mechanism ensures strictly the vertical
displacement of the seat. Dynamic mo-
tion of the seat is 100 mm.

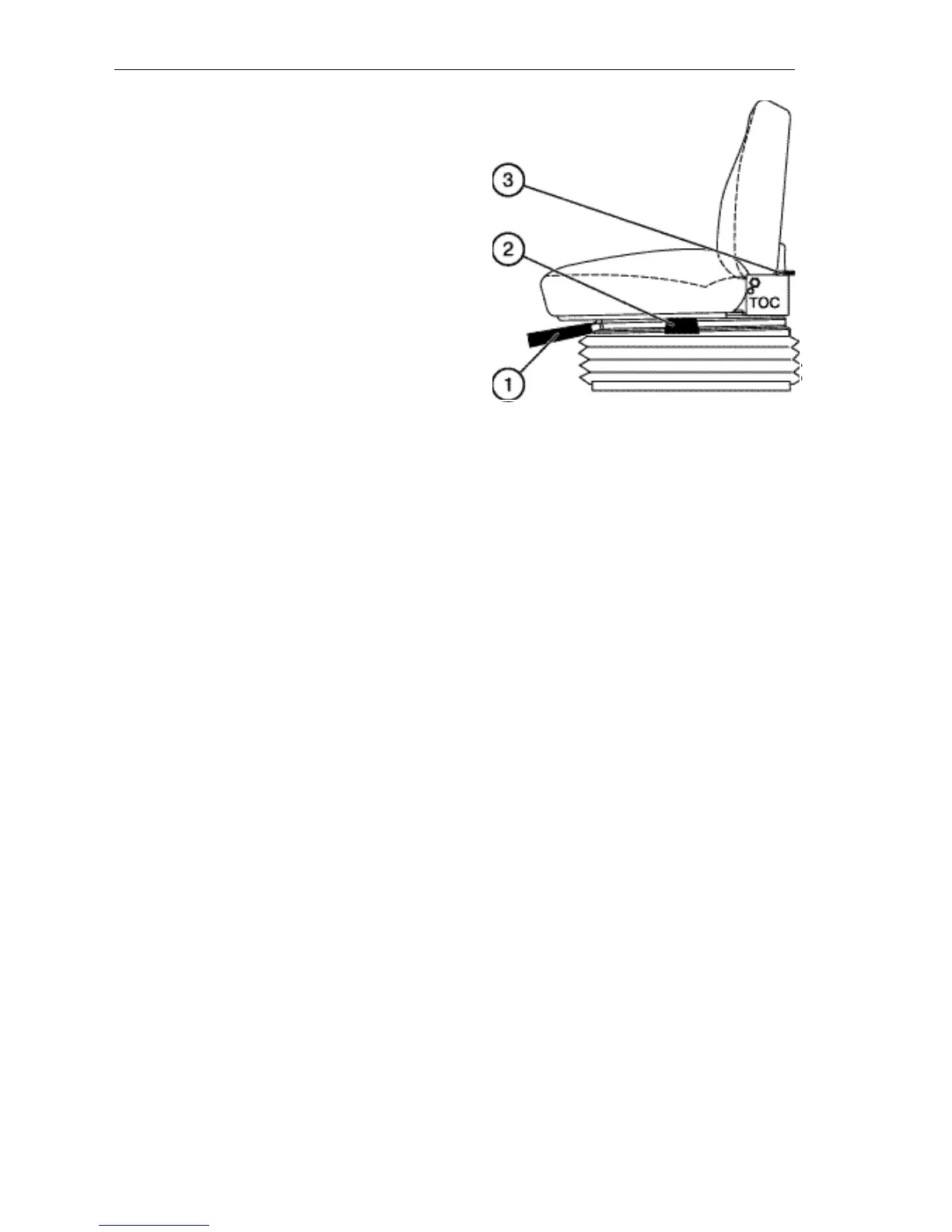

The seat has the following controls:
1. Adjustment by operator’s weight
within the range from 50 to 120 kg
with indication of the suspension
travel middle position. Turn the
handle (1) clockwise (as seen from
the operator’s seat) to adjust the
seat to larger weight and vice versa.
2. Transverse adjustment within 80
mm from middle position. Lift the
lever (2) upwards to the stop and
move the seat forward or backward
to comfortable position.
3. Back inclination adjustment within
the range from 5 to 25. Lift the arm
(3) upwards to the stop, turn the
back and release the arm. The back
will be fixed in the given position.
The seat can be adjusted by height
within 30 mm by moving consequently
it manually upwards to increase the
height. To decrease the seat height, lift
it abruptly upwards to the stop and then
push it down.
