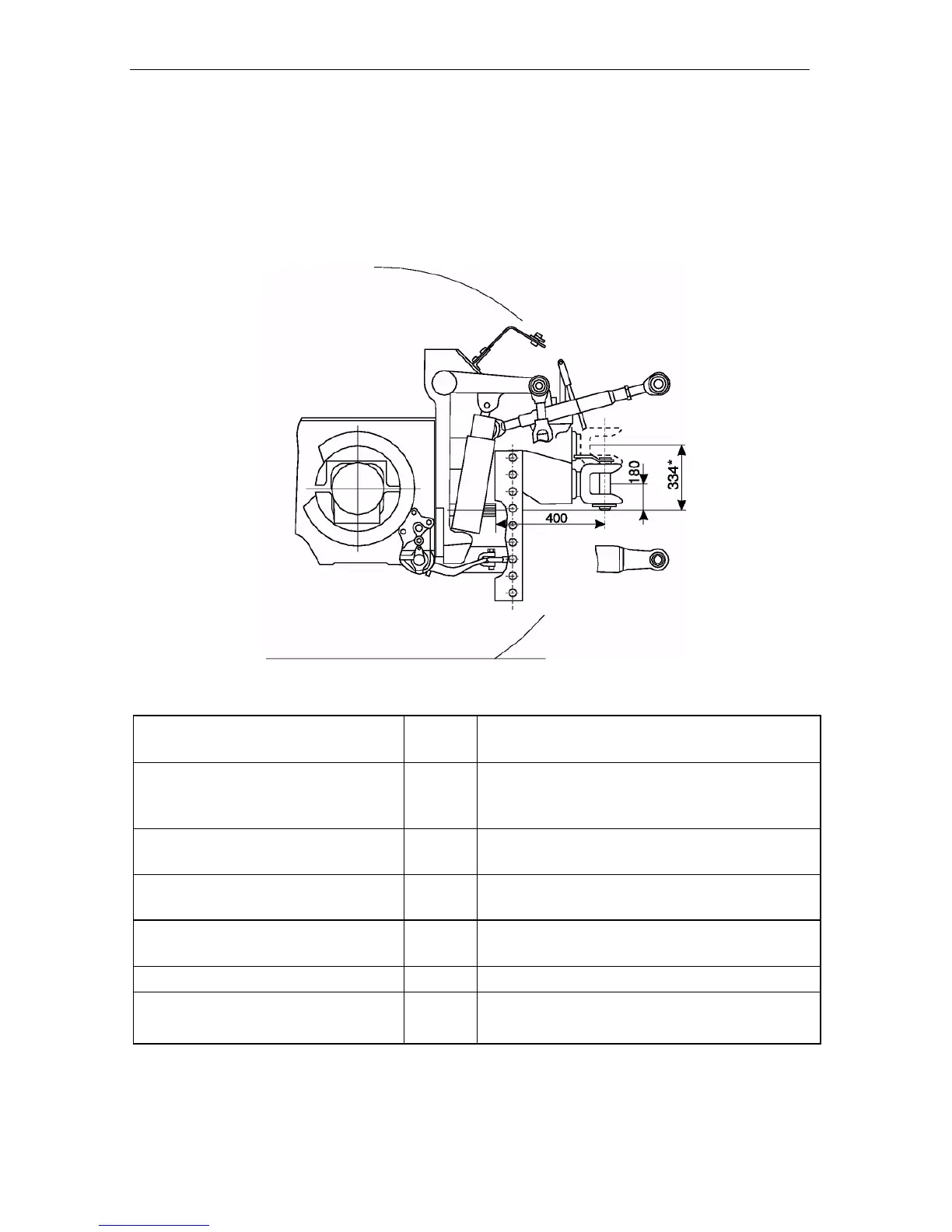

2. ТСУ-ЗВ (fork)
Machines: trailed (automobile-type two-axle trailers, etc), semi-trailed (same as for ТСУ-
1Ж-01).
Hitch mechanism
Rotating fork with vertical displacement
Distance from the fork to support-
ing surface for machines without
PTO drive, mm
mm
288.. .808 (962*) stepwise via 65 mm
Fork position for machines with
PTO drive
lowermost or uppermost, including overturn
Attachment pin size
mm
040
Distance from PTO face to at-
tachment pin axle, mm
mm
400
Vertical load on THM
kN (kg f)
12 (1200)
Machine turning angle relative to
the tractor
degree
± 55 (trailers),
± 85 (agricultural machines)
* With turning over the fork
