Hitching machines to the tractor
1 . When hitching machines to the tractor,
make sure first that there is nobody
within hitching zone.
2 . Lower the attached device to the lower
position by using the power governor han -
dle, drive the tractor back and attach the
machine to lower rods. Splint the pins.
Stop the engine.

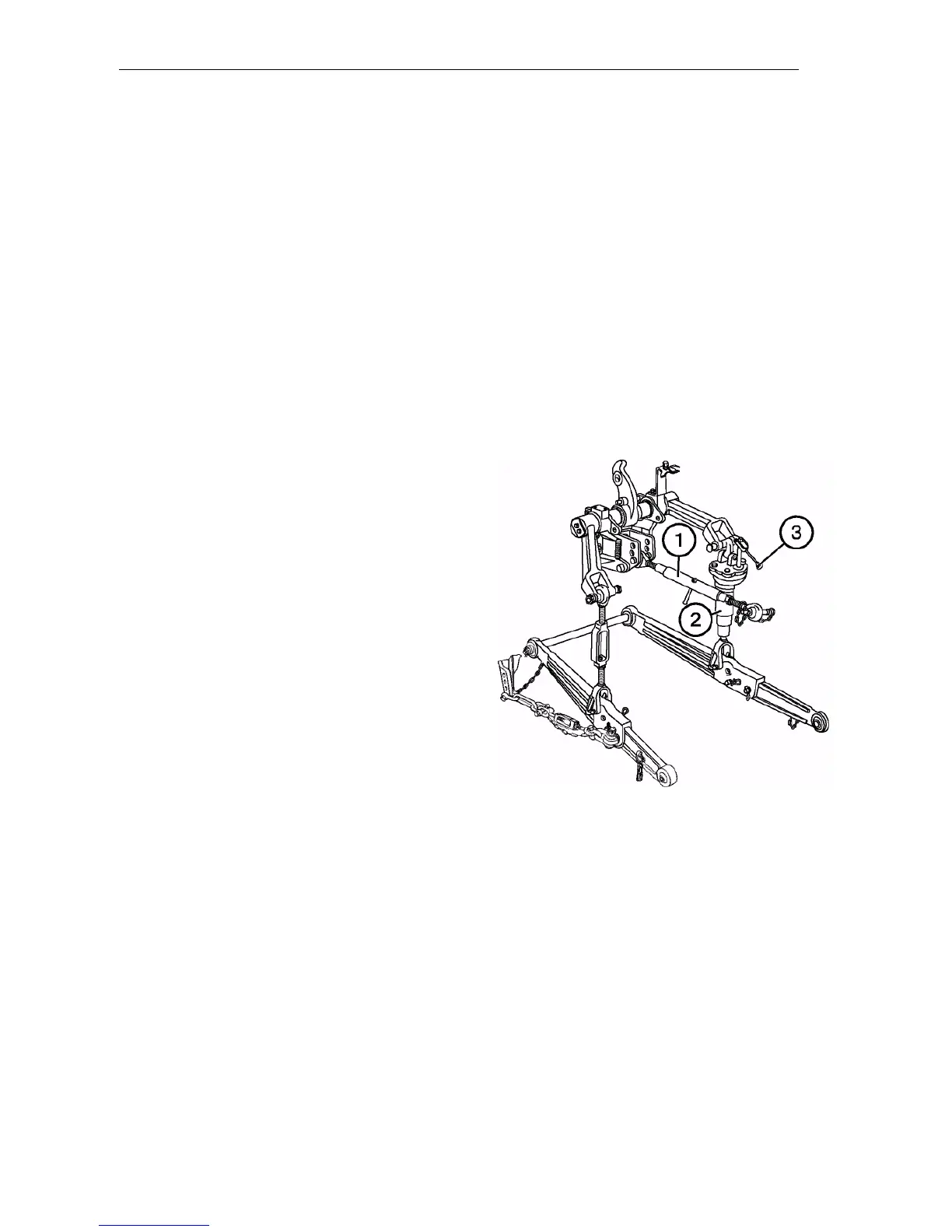

3 . Make the upper rod (1) longer or shorter
and connect the rod ball joint with the
machine. Splint the pin.
4 . If necessary, adjust the upper rod to ini -
tial or required length.
5 . If necessary, adjust the machine lateral
tilt by using the right adjustable angle
brace (2). Increase the angle brace
length, turn arm (3) clockwise and vice
versa.
6 . Prior to operation, check that:
• the tractor parts are not in danger-
ous proximity to machine compo-
nents;
• the central rod is not in contact with
PTO enclosure at the lowest posi-
tion of the machine;
• the PTO cardan drive is not extreme-
ly long, with large joint angles and
there are no thrust forces;
• the PTO enclosure is not in contact
with that of machine cardan drive.
7 . Slowly lift the machine and check the
clearance of at least 100 mm between
the tractor and the machine in lifted
position.
8 . Check the lateral swing of lower rods
and, if necessary, adjust them by us-
ing tie rods.
