The machine (implement) is also attached
to the tractor by the automatic hitch CA-1
connected to the tractor hookup at three
points (two rear joints of longitudinal rods
and rear joint of the central rod).
To prevent spontaneous disconnection of
the machine from the tractor, fix the auto-
matic hitch latch with a spring cotter pin.

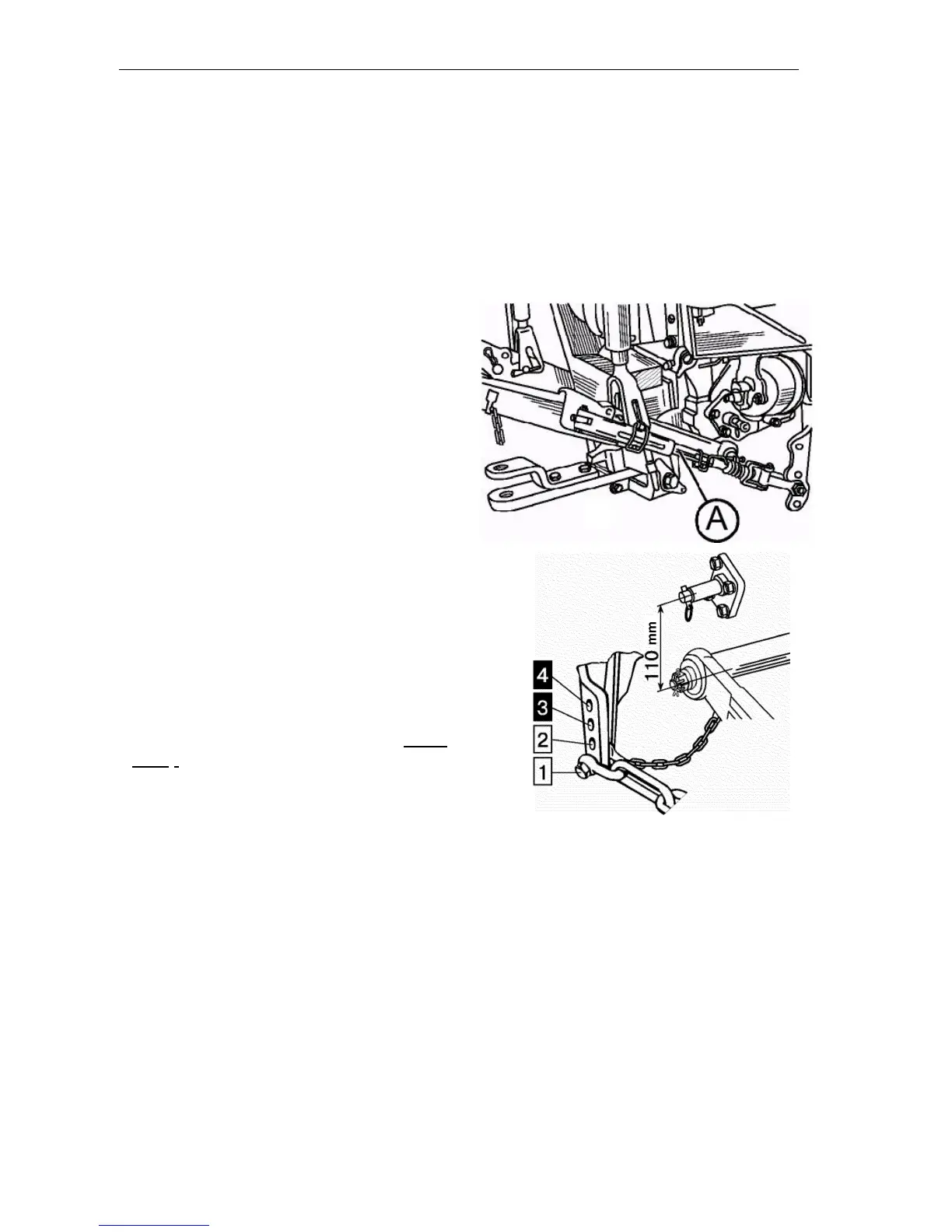

Limiting (telescopic) tie bars (А)
The tie bars are use to limit lateral swing-
ing of hanger lower rods both in transport
and working states. This is especially re-
quired during the works on the slopes,
near the excavation pits, wall, etc.
Rear end of the tie bar is attached to the
lower rod and the front one – to the hold-
er in one of four positions, depending on
the works:
• Position 1. The tie bars exclude imple-
ment swinging in transport state.
• Position 2. The tie bars exclude imple-
ment lateral swinging both in transport
and working states.
IMPORTANT! Positions 3 and 4 should
be used only when installing lower rods
onto additional axes of the hanger (upper
axes).
• Position 3. The tie bars exclude imple-
ment lateral swinging in transport state.
• Position 4 The tie bars exclude imple-
ment lateral swinging both in transport
and working state.
ATTENTION! The tie bars shall be in-
stalled only into the second from bottom
apertures for holders (position 2) to
avoid tie bar failure.
