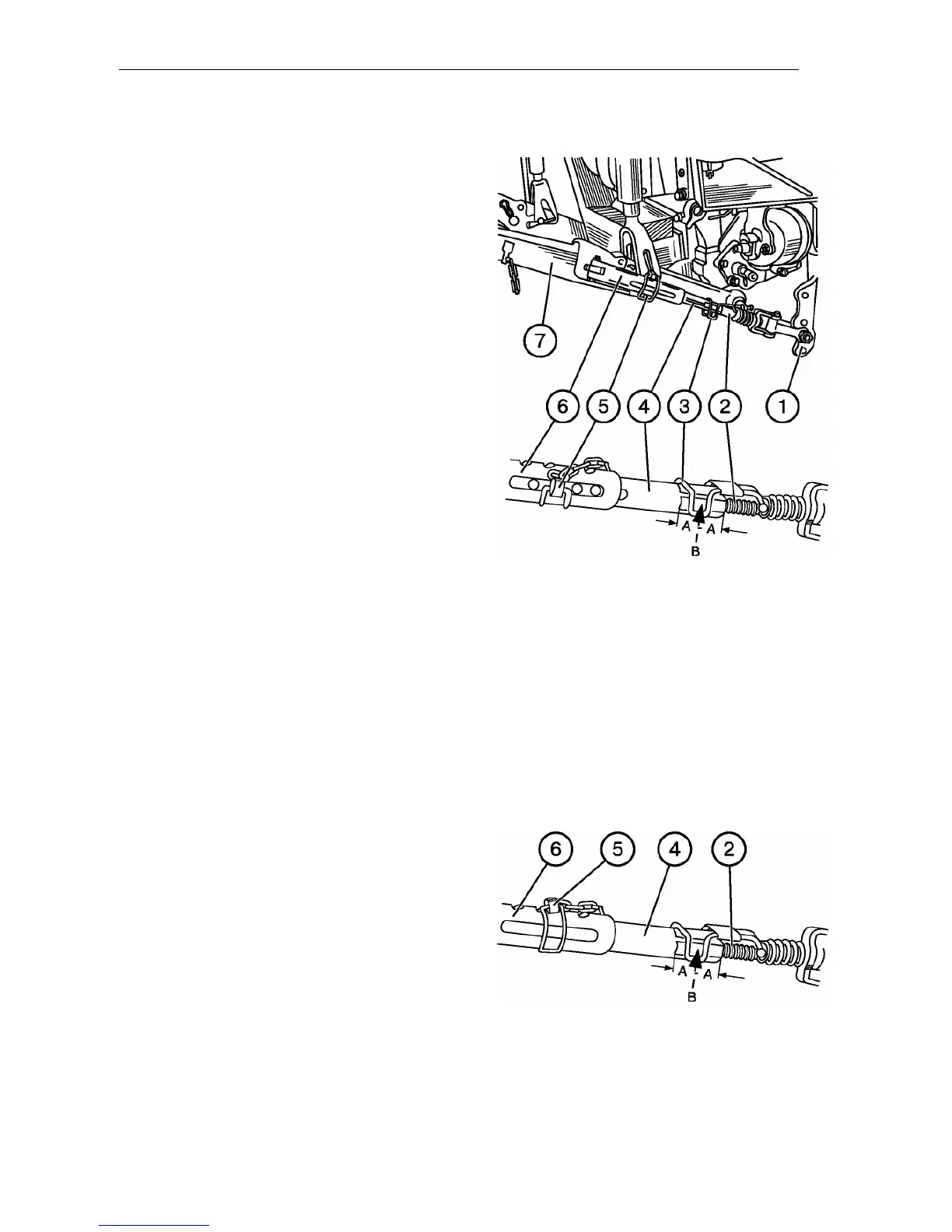

Partial locking of telescopic tie bars
To ensure the required lateral displace-
ment of the machine, e.g., a plough, adjust
the tie bars in the operating condition as
follows:
• rotating the screw (2), set the handle
(3) at the middle of flat “B”;
• pull out the cotter (5) from the tie bar;
• attach the machine to the lower rods
(7) and raise it a little to pull off the
ground;
• having aligned the apertures of the internal
tube (4) with the groove of external tube (6),
insert the cotter (5) in the middle of the groove
IMPORTANT! Install the cotter (5) so
that it is in the middle of the groove or at
minimal displacement towards the trac-
tor. Otherwise, tie bars can be damaged.
Prior to transportation, lift the machine to
the up position and check its lateral
swinging, which shall not exceed 20 mm
in each direction. If necessary, adjust the
swinging by rotating the screw (2).
Full tie bar locking
For complete locking of the machines,
e.g. a cultivator or attached unit, adjust tie
bars in the working state similar to their
partial locking, except for the last opera-
tion during which align the aperture of the
internal tube (4) with that of external tube
(6) and insert the cotter (5).
Ensure full locking in transport state (the
machine being lifted) by tightening screw
(2) into tube (4) to the maximum.
