At this time, the LED
on
the be
lit
indicating that power
is
front panel of the ACP should
supplied.
To connect the ACP to the
phone line, a RJ-31X modular
walljack
will
need to be
installed
on
to the existing
telephone wiring
in
front of
all
telephone/data
equipment.
The installation for the RJ-31X
will
be identical to a standard
alarm system reporting

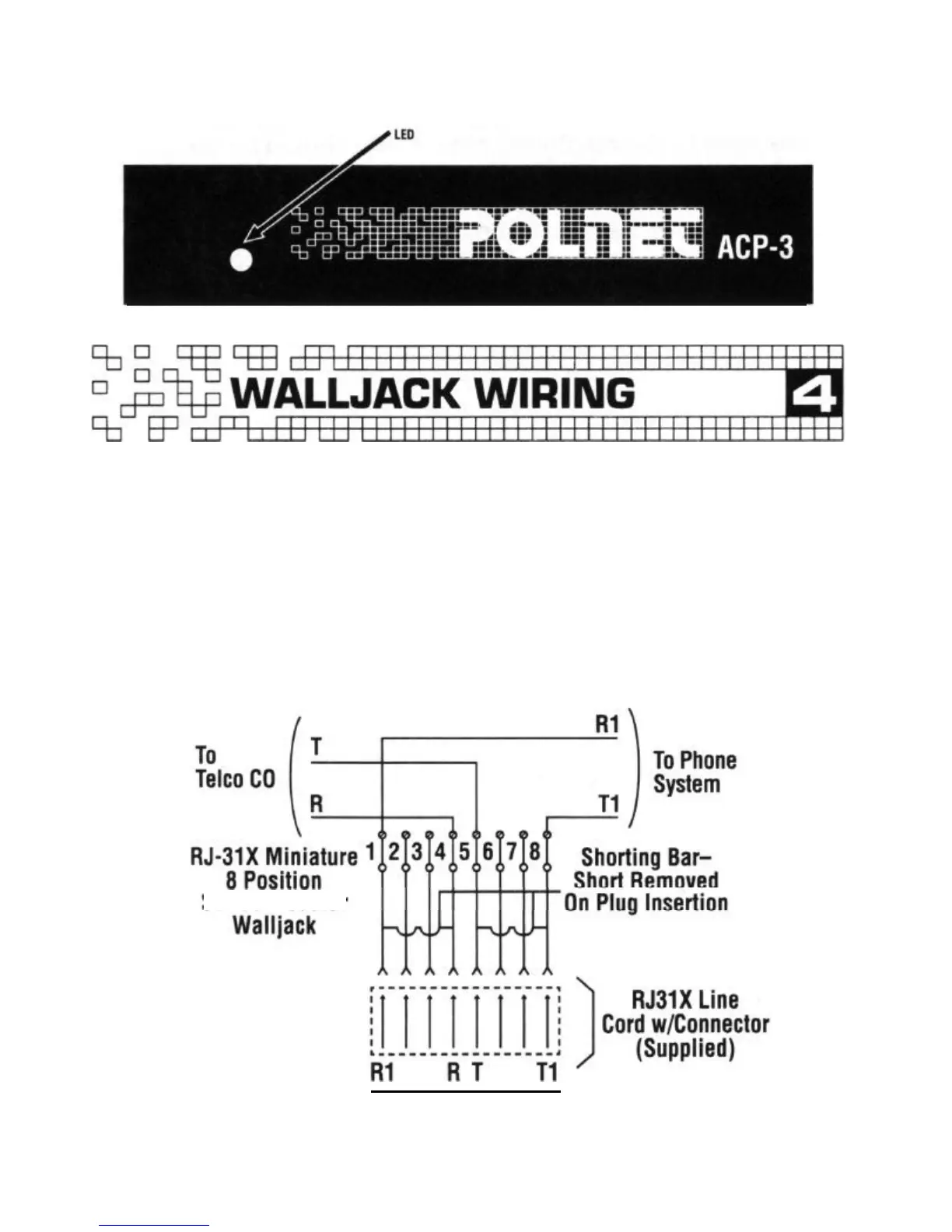

application. The following
diagram denotes the proper
wiring of telephone cable to the
RJ-31 X walljack.
RJ-31X Walljack Wiring
Diagram
Series
Modular
To ACP
“Line/Phone”
Device
Port
5
