valves. The valves feature a liquid charged sensing bulb for consistent superheat at
various load conditions.
Condenser Coil: The air-cooled condenser coil is of copper tube with aluminum fin
construction. The coil is protected by a painted metal condenser grille.
drop.
Thermal Expansion Valve: Multiaqua chillers are equipped with Thermal Expansion

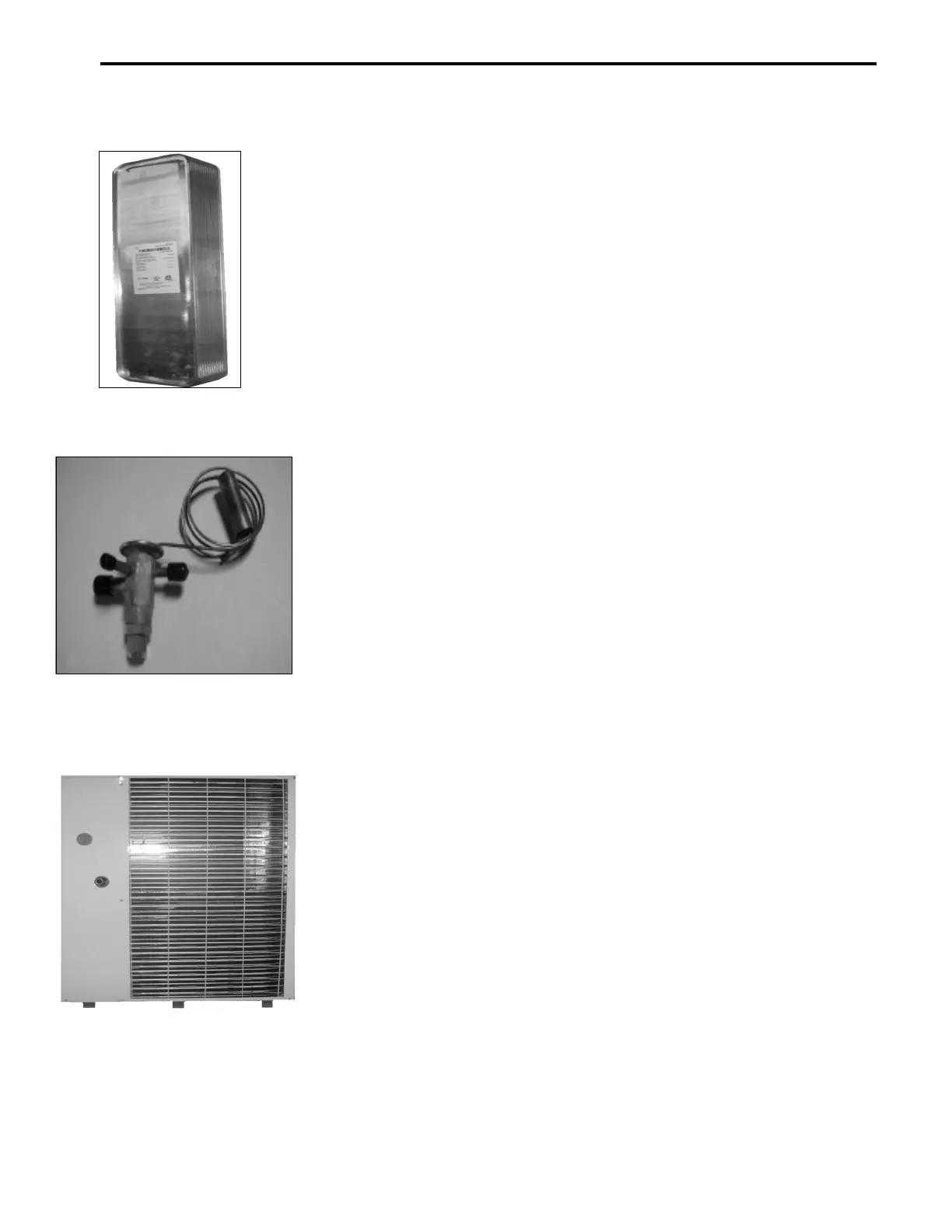

Description Of Refrigerant Components (continued)
67
Brazed Plate Heat Exchanger: The "Heat Exchanger" or evaporator is of a
brazed copper and stainless steel design. Refrigerant and liquid solution is channeled
through narrow openings between plates and flows in opposite directions. The counter
flow design and fluid turbulence ensures maximum heat exchange at minimal pressure
