2

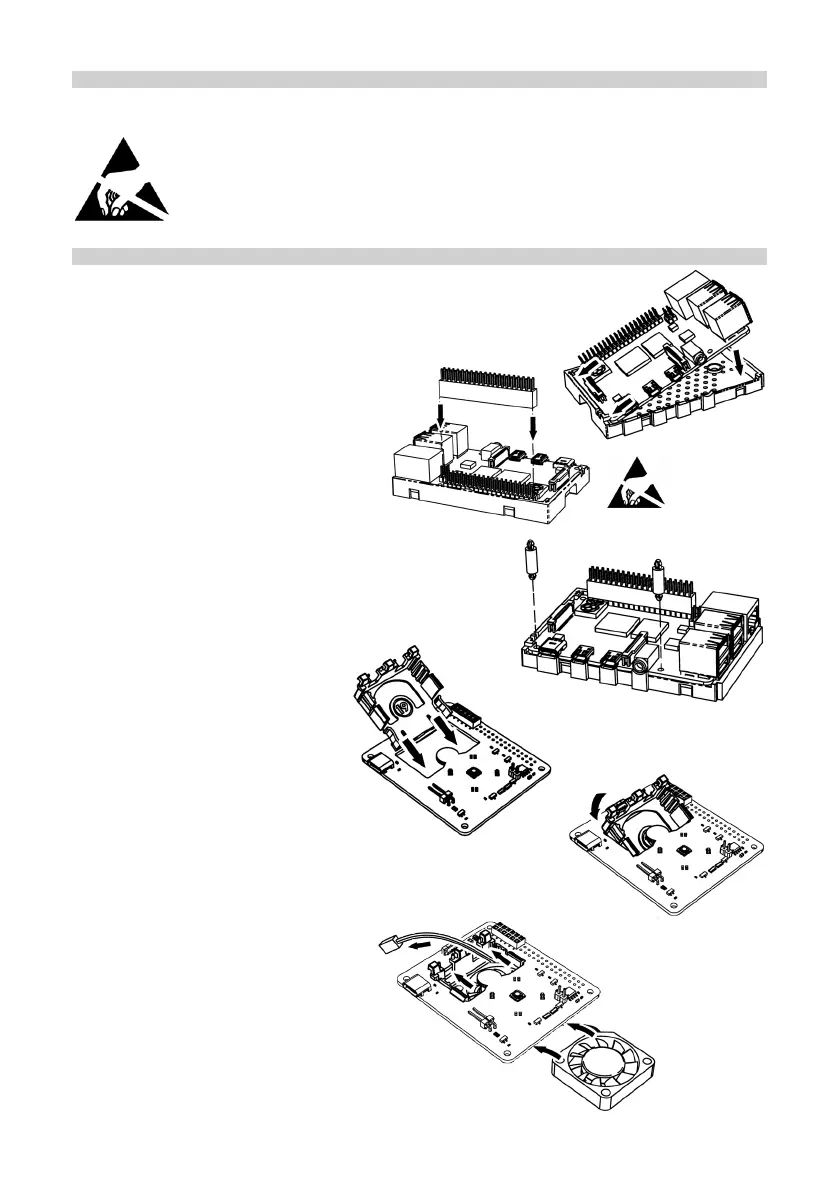

1. Insert the Pi (not included) main board into the casing
lower part as shown.
2. Connect the riser to the header
connector pins.
3. Clip the two support pillars into the holes provided
on the Pi main board.
4. Slide the cooling fan
mounting through the
cut out in the PCB
so it sits ush.
5. Insert the cooling fan into the
mounting feeding the connection
wire through rst.
IMPORTANT SAFETY INFORMATION
When using electronic components basic safety precautions should always be
followed.
ASSEMBLY
WARNING: This is an electrostatic sensitive device, take precautions to
ground yourself during the assembly procedure.
