Multihog CX75 - Joystick Plug Routing

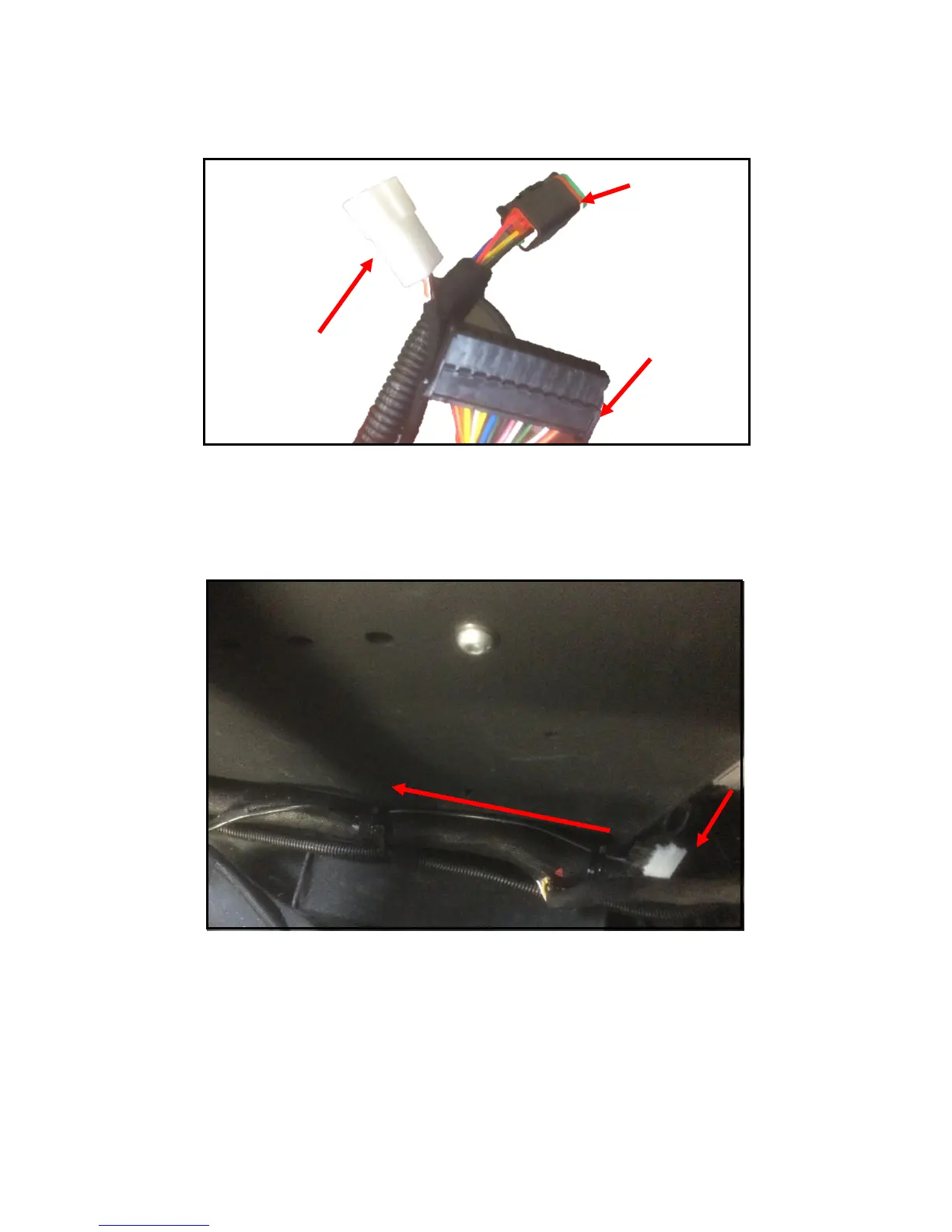

Fig. 15
Note descriptions of the 3 plugs above in Fig. 15 for the next section of loom installation.
Fig. 16
Remove RH side panel on the inside of the cab for access. Track cables through the rear of
the side panel and neatly along the side of the panel towards back of the seat. Loop and
leave the 6-pin joystick plug in this position for now.
15-pin Bucher controller
plug
6-pin Joystick plug
2-pin
power
supply plug
