APPENDIX A: FAQ
1. How do I configure the Router to access the Internet by ADSL users?
1) First, configure the ADSL Modem configured in RFC1483 bridge model.
2) Connect the Ethernet cable from your ADSL Modem to the WAN port on the Router. The telephone cord plugs into the Line
port of the ADSL Modem.
3) Log in to the Router, click the “Network” menu on the left of your browser, and click “WAN” submenu. On the WAN page,
select “PPPoE” for WAN Connection Type. Type user name in the “User Name” field and password in the “Password” field,
finish by clicking Connect.
4) If your ADSL lease is in “pay-according-time” mode, select “Connect on Demand” or “Connect Manually” for Internet
connection mode. Type an appropriate number for “Max Idle Time” to avoid wasting paid time. Otherwise, you can select
“Auto-connecting” for Internet connection mode.
Note:
a) Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some
applications is visiting the Internet continually in the background.
b) If you are a Cable user, please configure the Router following the above steps.

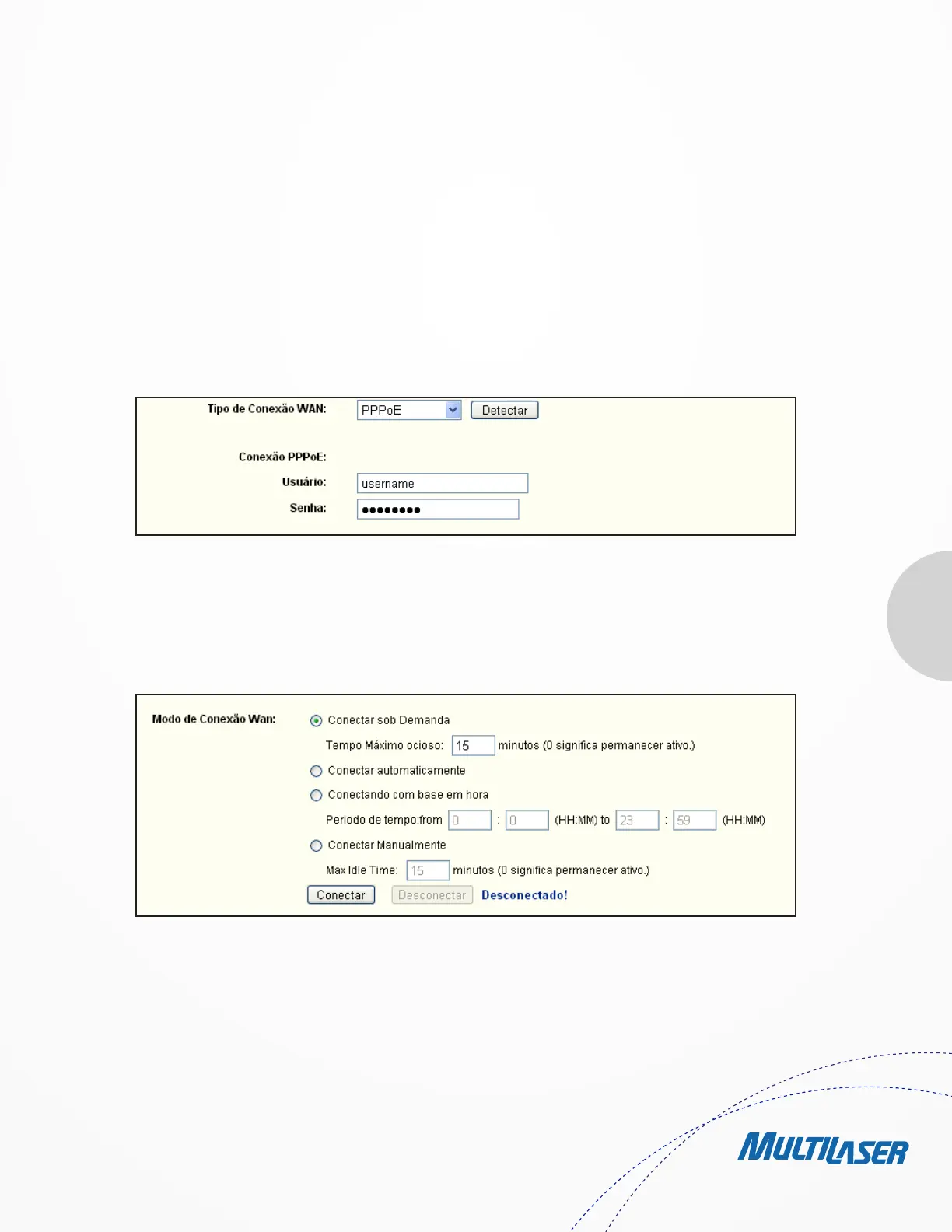

Figure A-1 PPoE Connection Type
Figure A-2 PPPoE Connection Mode
