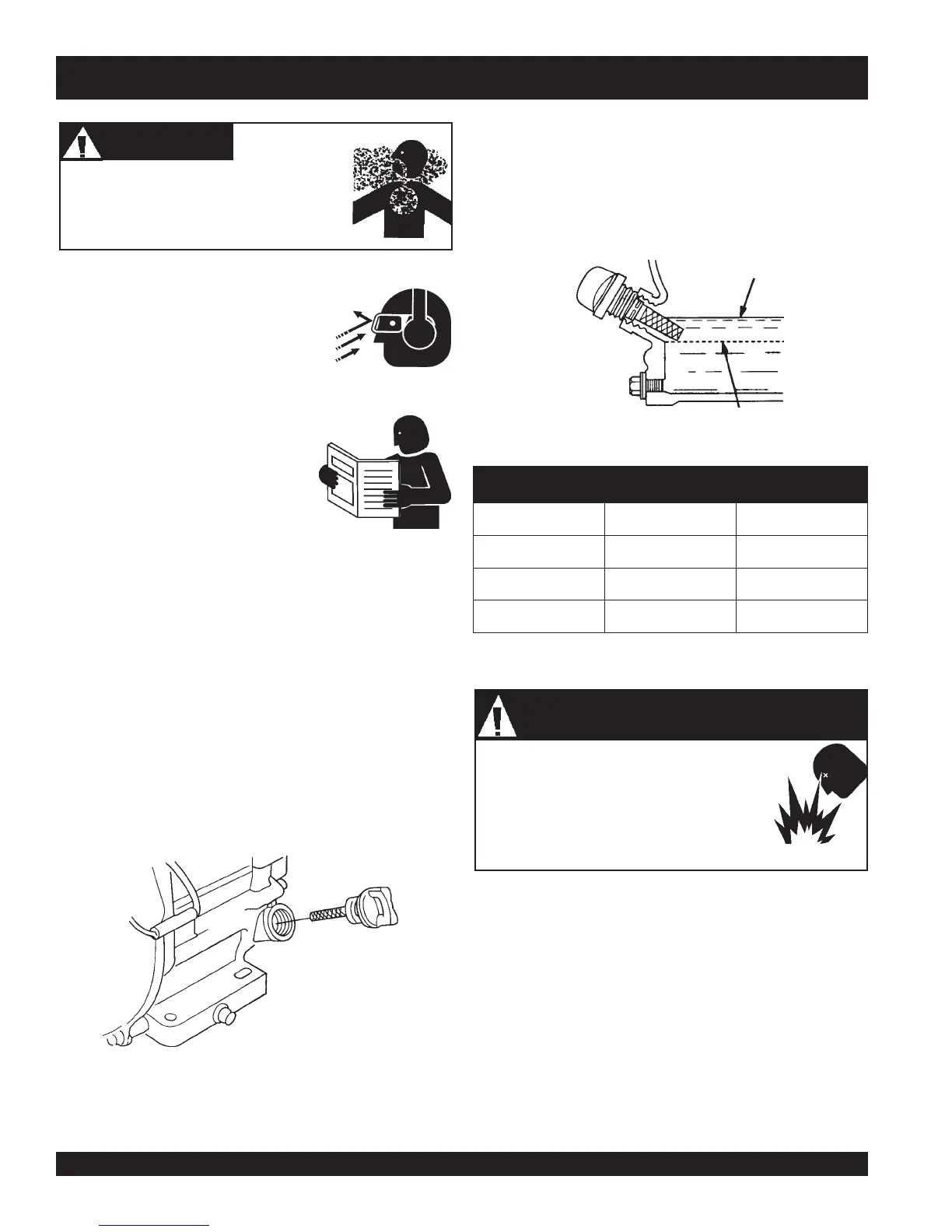

PAGE 16 — QP-2TH TRASH PUMP — PARTS MANUAL — REV. #1 (12/02/04)
QP-2T H — PRE-INSPECTION (ENGINE)
Figure 5. Engine Oil Dipstick (Removal)
3. Insert and remove the dipstick without screwing it into the filler
neck. Check the oil level shown on the dipstick.
4. If the oil level is low (Figure 6), fill to the edge of the oil filler
hole with the recommended oil type (Table 5). Maximum oil
capacity is 0.63 quarts (0.60 liters)
Figure 6. Engine Oil Dipstick (Oil Level)
Before Starting
1. Read safety instructions at the
beginning of manual.
2. Clean the pump, removing dirt and
dust, particularly the engine
cooling air inlet, carburetor and air
cleaner.
3. Check the air filter for dirt and dust. If air filter is dirty, replace
air filter with a new one as required.
4. Check carburetor for external dirt and dust. Clean with dry
compressed air.
5. Check fastening nuts and bolts for tightness.
Engine Oil Check
1. To check the engine oil level, place the pump on secure
level ground with the engine stopped.
2. Remove the filler dipstick from the engine oil filler hole
(Figure 5) and wipe clean.
Fuel Check
1. Remove the gasoline cap located on top of fuel tank.
2. Visually inspect to see if the fuel level is low. If fuel is low,
replenish with unleaded fuel.
3. When refueling, be sure to use a strainer for filtration. DO
NOT top-off fuel. Wipe up any spilled fuel
immediately!
epyTliO.5elbaT
nosaeS erutarepmeT epyTliO
remmuS rehgiHroC°52 03-W01EAS
llaF/gnirpS C°01~C°52 02/03-W01EAS
retniW rewoLroC°0 01-W01EAS
CAUTIONCAUTION
CAUTIONCAUTION
CAUTION
NEVER operate the pump in a confined area
or enclosed area structure that does not
provide ample
free flow of air
.
ALWAYS wear approved eye and hearing
protection before operating the pump.
Motor fuels are highly flammable and can be
dangerous if mishandled. DO NOT smoke
while refueling. DO NOT attempt to refuel the
pump if the engine is
hot!
or
running
.
DANGER EXPLOSIVE FUELDANGER EXPLOSIVE FUEL
DANGER EXPLOSIVE FUELDANGER EXPLOSIVE FUEL
DANGER EXPLOSIVE FUEL
