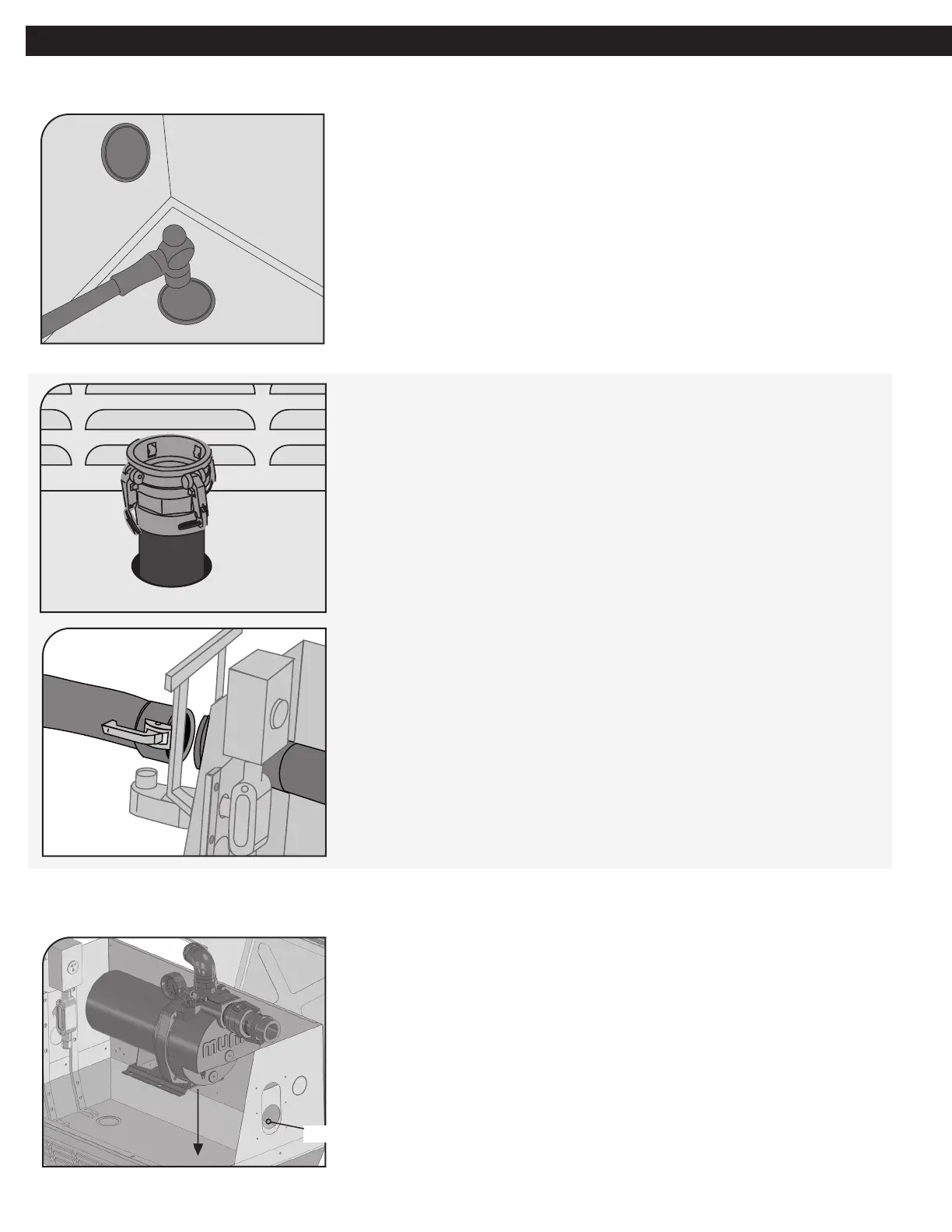

Step 1 – Preparing the enclosure for irrigation system access knockouts
1. Using a hammer and pliers, remove the appropriate discharge
knockout from the CP unit – concentrating on the two
metal tabs.
2. Orient the enclosure to match to the irrigation inlet.
Bottom Knockout
Side Knockout
Step 2 – Setting and finalizing the pump
b). If using a side knockout – place Universal Pro Enclosure
so irrigation inlet pipe aligns with side knockout. Remove the
PVC female cam x slip tting from the hose assembly and
glue the slip tting to inlet pipe. Hose will feed through the
sidewall to pair with irrigation inlet pipe.
3. a) If using a bottom knockout – place Universal Pro
Enclosure so irrigation inlet pipe enters the enclosure
through bottom knockout hole. Remove the PVC female
cam x slip tting from the hose assembly and glue the slip
tting to inlet pipe. Hose will pair to irrigation inlet inside
the enclosure.
1. Remove the packing board from bottom of the pump.
2. Set the pump into the pump enclosure with the suction
ttings facing the suction pass-through panel
3. Push the threaded end of the suction tting through the
suction pass-through panel to connect to water source. We
recommend threading this tting to a valve for
isolation purposes.
Suction pass-through panel
Munro Complete PRO ll ASSEMBLY GUIDE
