Ref: 180.30_v4_0409
Helpful Hints
(a) If the pump is slow to
prime, the cup washer maybe
worn or the valves are not
seating properly.
(b) If the pump won`t pump:
- Check that the suction line
is in the water.
- Check that the hose con-
nections are secure and there
are no air leaks.
- Check washers in the pump,
they may need to be re-
placed.
Warranty
Whale Pumps are guaranteed
for 1 year against defects in
materials and workmanship. If
the unit proves faulty, return
it to your supplier with proof
of purchase and purchase
date.
The manufacturer retains the
right to repair or replace the
unit.
The manufacturer cannot be
held responsible for claims
arising from incorrect installa-
AS0627

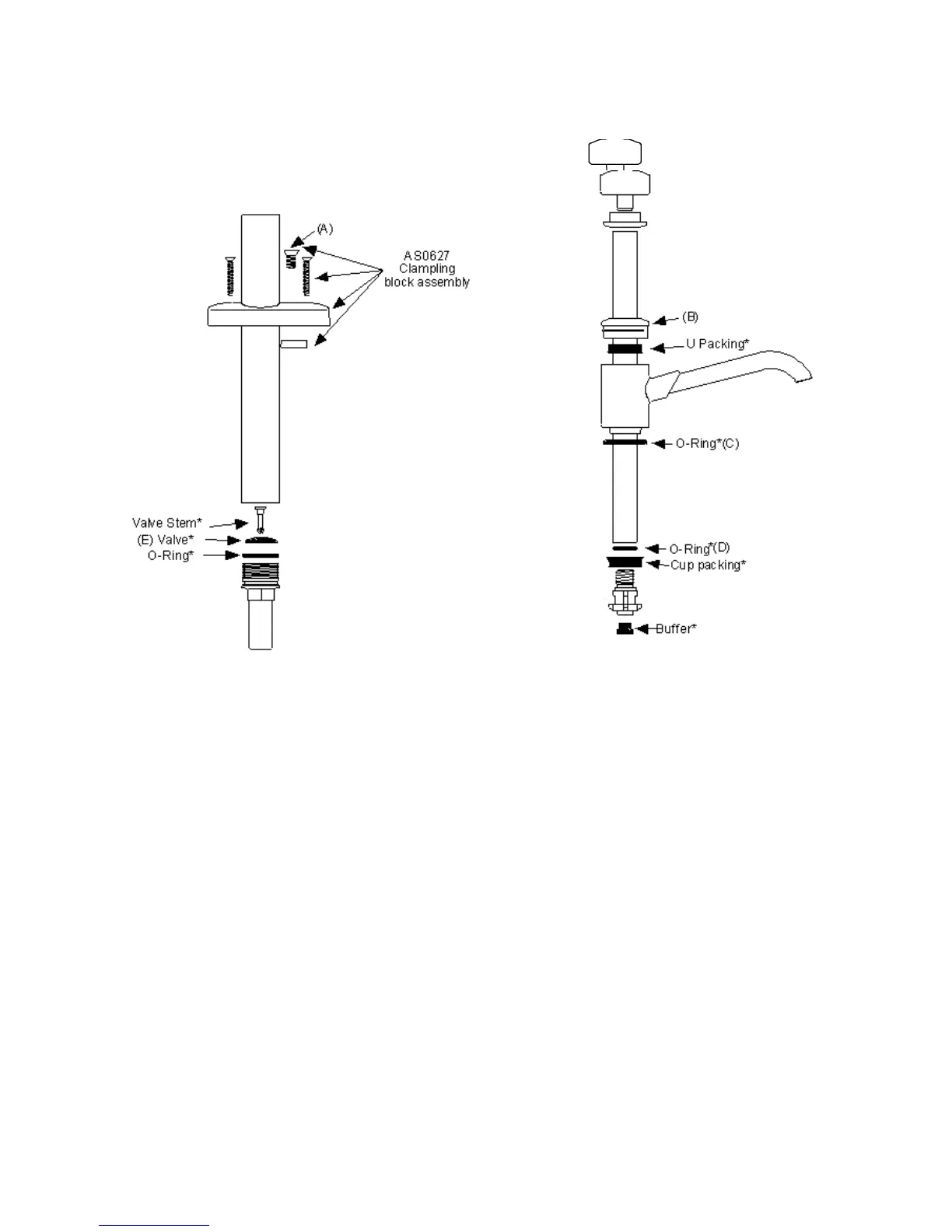

Clampling
block assembly
AS0628
Plunger cup seat & base
assemblies
Valve Stem*
(E) Valve*
O-Ring*
(A)
Buffer*
O-Ring
Cup packing*
*(D)
O-Ring*(C)
(B)
U Packing*
Whale V Pump Mk6
Note:
*
contained in Service Kit AK0618
