Munters EM50 User Manual

© Munters AB, 2018
11
2
3
1
4
5
6

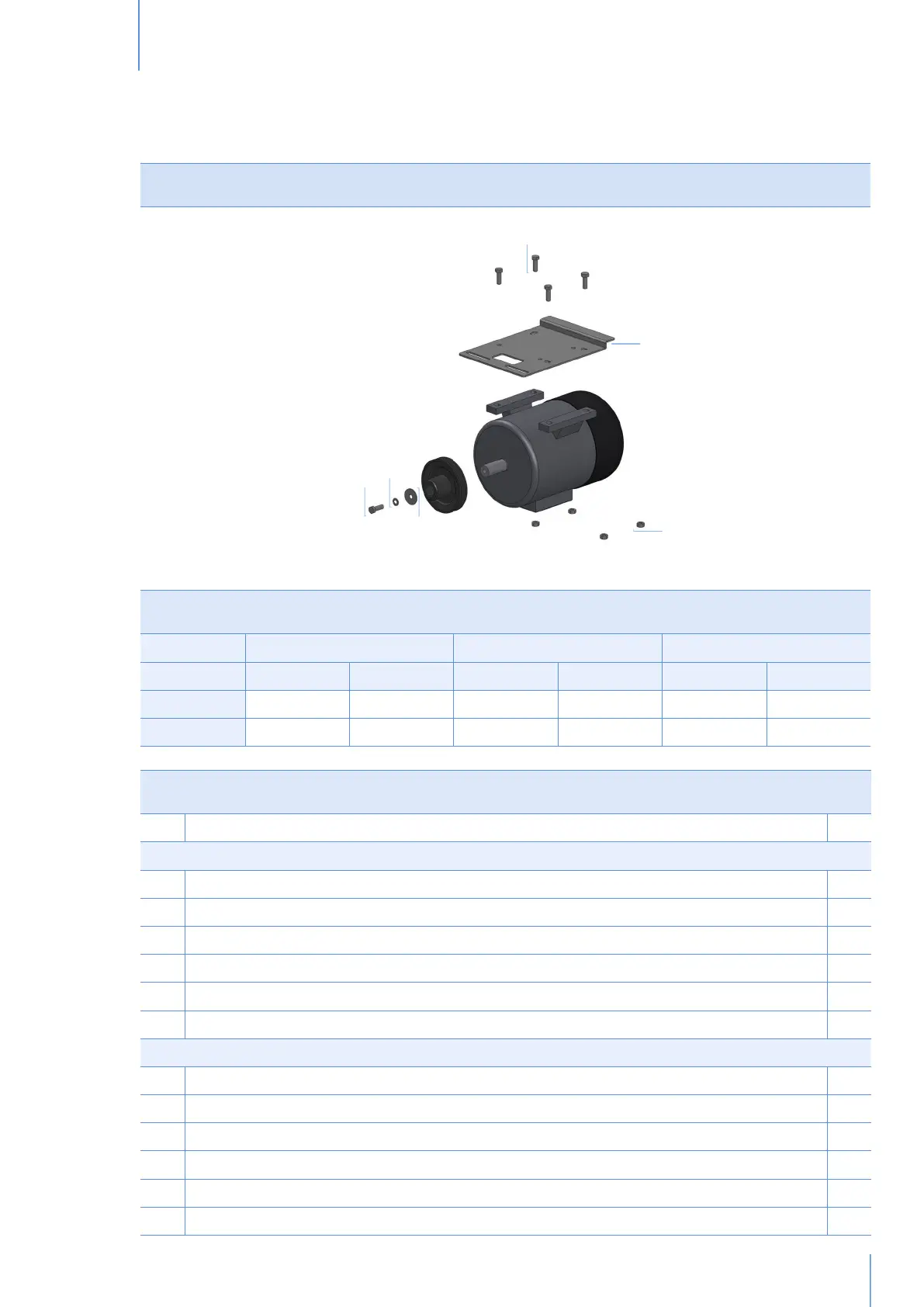

GROUP4: MOTOR
MOTOR PULLEY PITCH DIAMETER AND HOLE
3-PHASE - ONE SPEED 3-PHASE - MULTISPEED SINGLE PHASE
50 HZ 60 HZ 50 HZ 60 HZ 50 HZ 60 HZ
HP 1.5 100/24 80/24 95/24 80/24 95/24 80/24
HP 1.0 85/19 70/19 80/19 65/19 80/19 65/19
BOLTS&SCREWS
Ref. Description Q.ty
Models: 1.0Hp - 50/60Hz
1 HEXAGON SCREW M8X20 UNI 5739 4
2 MOTOR PLATE 80X256X3 GALV. 4
3 TICK HEXAGON NUT M8X8 UNI 5587 4
4 PLAIN WASHER D8X32 DIN 126 1
5 SPRING WASHER D8,4X14,4 UNI1751 1
6 HEXAGON SCREW M8X20 UNI 5739 1
Models: 1.5Hp - 50/60Hz
1 HEXAGON SCREW M8X20 UNI 5739 4
2 MOTOR PLATE 80X256X3 GALV. 4
3 TICK HEXAGON NUT M8X8 UNI 5587 4
4 PLAIN WASHER D6.7X24 UNI 659 1
5 SPRING WASHER D6,4X11,4 UNI1751 1
6 HEXAGON SCREW M6X16 UNI 5739 1
Spare part listChapter1
