FEATURES AND CONTROLS
B. Auger Drive Clutch Lever — Used to engage and disengage the
auger and impeller. To engage push down, to disengage release.
C. Traction Drive Clutch Lever — Used to propel snow thrower for-
ward or reverse. Push down to engage, release to disengage.
D. Snow Chute Deflector — Used to change the direction the snow
is thrown.
E. Crank — Used to change direction of the snow discharge. Turn han-
dle clockwise to turn chute to right. Turn handle counterclockwise to
turn chute to left.

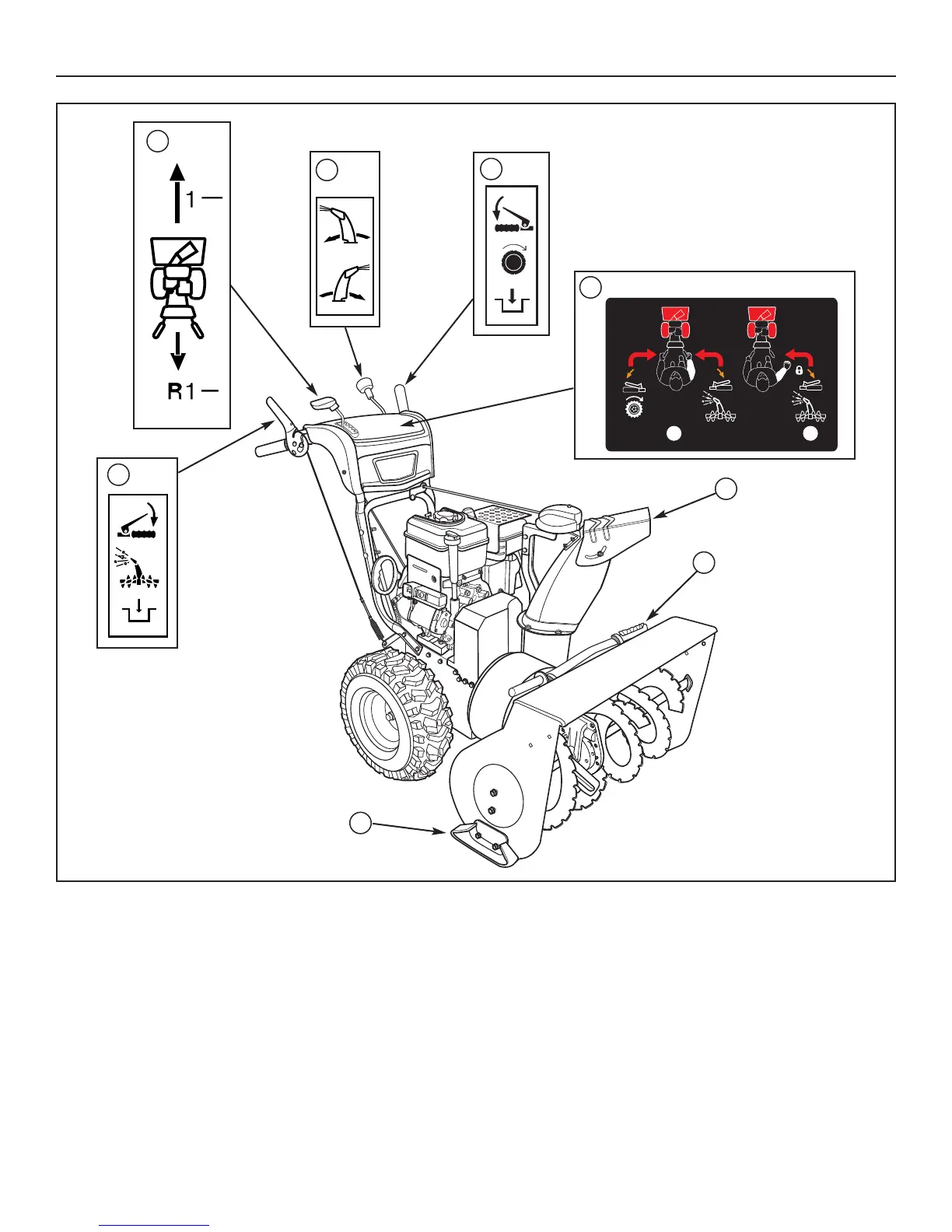

Snow Thrower Controls Figure 3
F. Skid Shoe — Used to adjust ground clearance of auger housing.
G. Clean-Out Tool — Used to remove snow and debris from the dis-
charge chute and the auger housing.
H. Free-Hand
TM
Control — After engaging the traction control (left
hand) and auger control (right hand), allows the operator to
release the auger control lever to use the other controls.
