Murray 461004x92A - Page 56

REPAIR PARTSMODEL 461004x92A
56
F–040741L

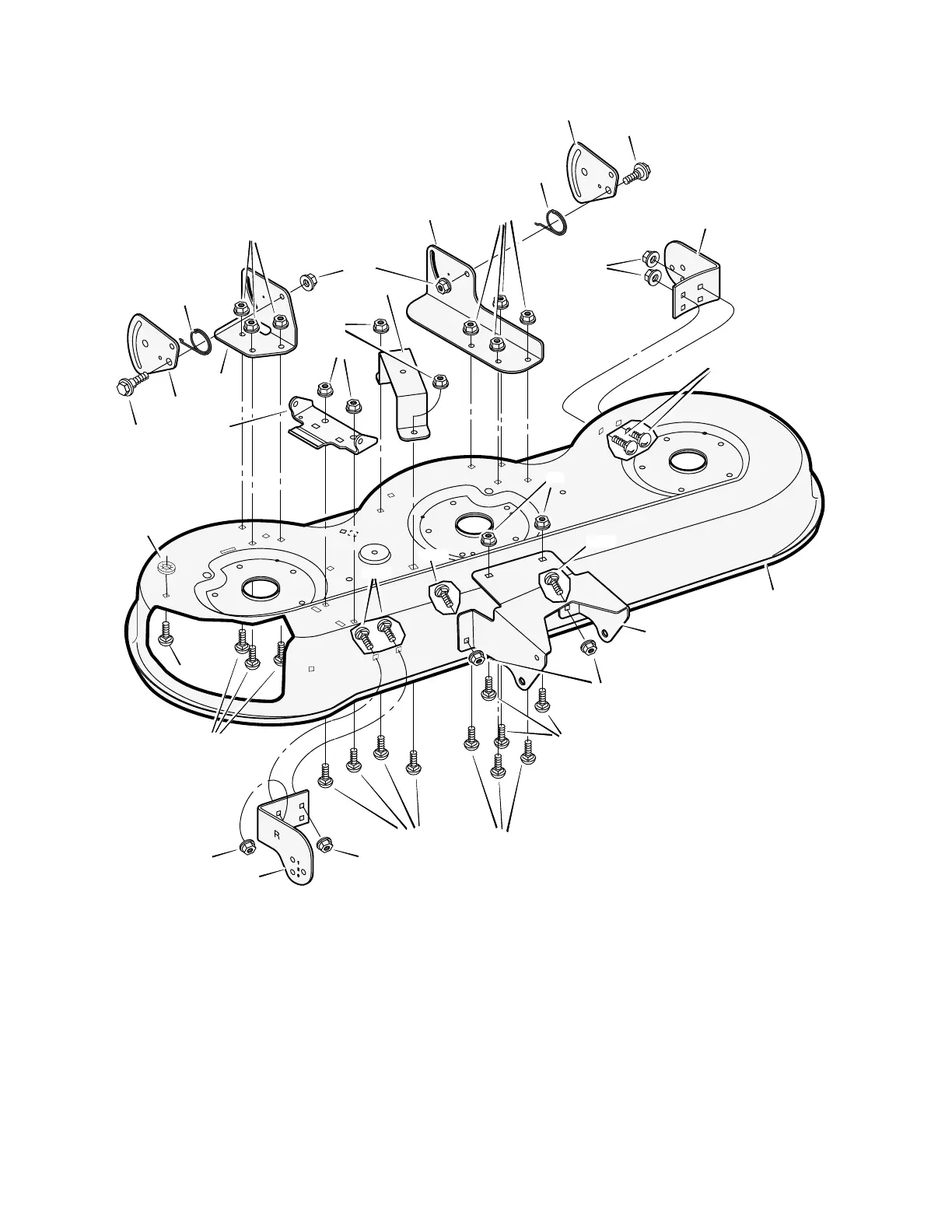

MOWER HOUSING
1
2
3
4
18
6
7
8
6
9
10 6
5
2
1
11
9
12
13
14
6
12
1212
9
15
9
12
17
16
12
12
12
6
Key
No. Part No. Description
Key
No. Part No. Description
1 009x51 Bolt, Shoulder
2 690128E701 Plate, Suspension
3 094598E700 Bracket, Right Rear
4 092104E700 Bracket, Hinge
5 166x43 Spring, Left
6 015x79 Nut, Flange
7 015x84 Nut, Flange
8 094601E701 Bracket, Bell Crank
9 015x88 Nut, Flange
10 094600E700 Bracket, Left Lifter
11 094919E701 Bracket, Left Gauge Wheel
12 002x53 Bolt, Carriage
13 690204E701 Housing, Blade
14 094997SE Bracket, Front Deck
15 094918E700 Bracket, Right Gauge Wheel
16 028x64 Retainer
17 002x74 Bolt, Carriage
18 166x42 Spring, Right
–– 776111 Complete Mower Housing
