OPERATION
14
F–040703L

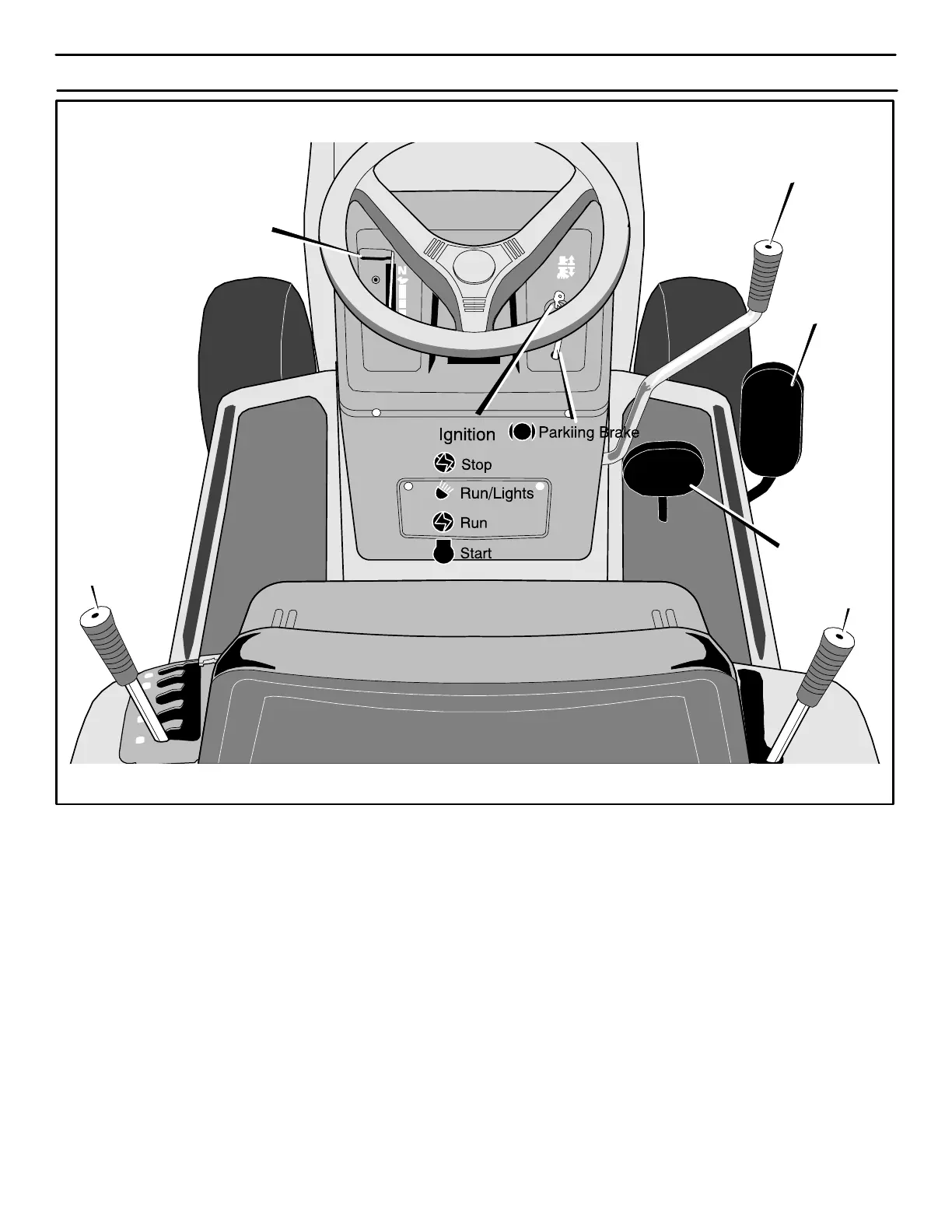

Figure 4
Throttle Control
Lever
Blade Rotation
Control
Lift
Lever
Speed
Control
Pedal
Shift
Lever
Clutch/Brake
Pedal
LOCATION OF CONTROLS
BLADE ROTATION CONTROL:
Use the blade rotation
control to start and stop the rotation of the blades.
CLUTCH / BRAKE PEDAL: The pedal has two functions.
The first function is a clutch. The second function is a brake.
BRAKE PEDAL: Use the brake pedal to quickly stop.
HEADLIGHT SWITCH: The headlight switch is the first part
of the ignition switch. To use the lights with the engine running, turn
the key to the position for the lights.
IGNITION SWITCH: Use the ignition switch to start and stop
the engine.
SHIFT LEVER: Use the shift lever to change the speed and the
direction of the unit.
AUTOMATIC DRIVE DISCONNECT: Use the auto-
matic drive disconnect, located under the seat, to disengage the
transmission.
LIFT LEVER: Use the lift lever to change the height of cut.
PARKING BRAKE LEVER: Use the parking brake lever
to engage the brake when you leave the unit.
SPEED CONTROL PEDAL: Use the speed control pedal
to change the speed and the direction of the unit.
SPEED CONTROL PEDAL: Use the speed control pedal
to change the speed of the unit.
THROTTLE CONTROL LEVER: Use the throttle control
lever to increase or decrease the speed of the engine.
