7
Mounting the Grass Bag (Not All Models)
1. To mount the grass bag on the mower, raise the rear
door (A, Figure 10). Holding the grass bag by the
handle (B), mount the hooks (C) on either end of the
grass bag frame assembly onto the rear door pivot rod
(D). Lower the grass bag against the rear of the mower.
Lower the rear door.
Important: Make sure both grass bag hooks are mounted on
the pivot rod.
WARNING: Do not use the grass bag unless the
elastic top cover is closed.
WARNING: Check the condition of the grass bag
for wear or deterioration. If worn or damaged,
replace the parts only with approved factory
replacement parts.
Emptying the Grass Bag (Not All Models)
WARNING: Before you remove the grass bag,
stop the engine. Before you remove any grass
from the mower housing, disconnect the wire
from the spark plug.
1. Raise the rear door to a vertical position.
2. Hold the handle of the grass bag and lift the frame
assembly. Continue to lift the frame assembly until the
hooks are no longer mounted on the pivot rod. Remove
the grass bag.
3. Open the top cover (A, Figure 11). Empty the grass from
the grass bag.
4. To mount the grass bag on the mower, see “Mounting
The Grass Bag”.
Preparation

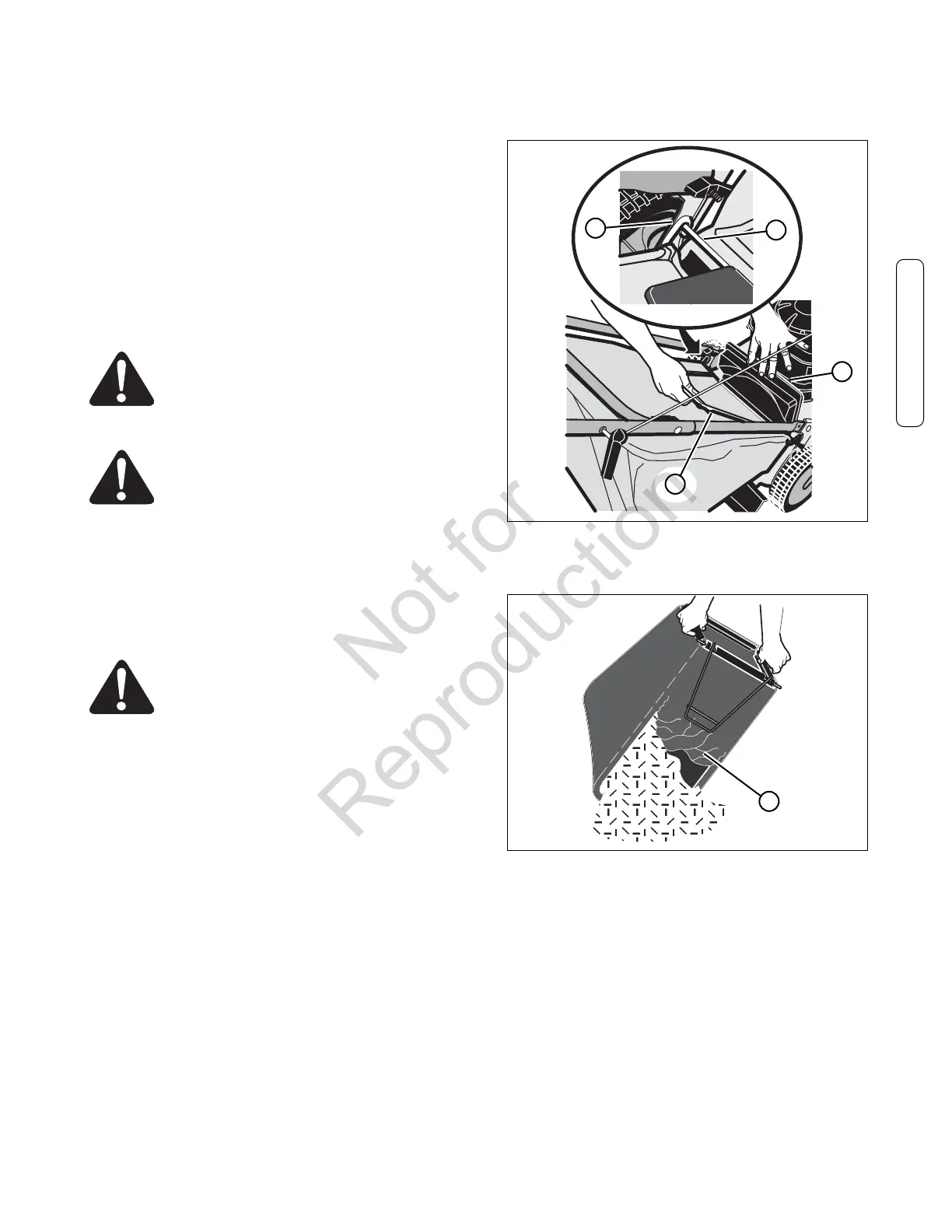

Figure 10: Mounting the grass bag
A
Figure 11: Emptying the grass bag
C
D
A
B
Preparation (Continued)
