Murray PRO Series - Seat Assembly; Seat Parts List

13
REPAIR PARTS
TRACTOR - - MODEL NUMBER 165036 (96016000800) PRODUCT NO. 960 16 00-08

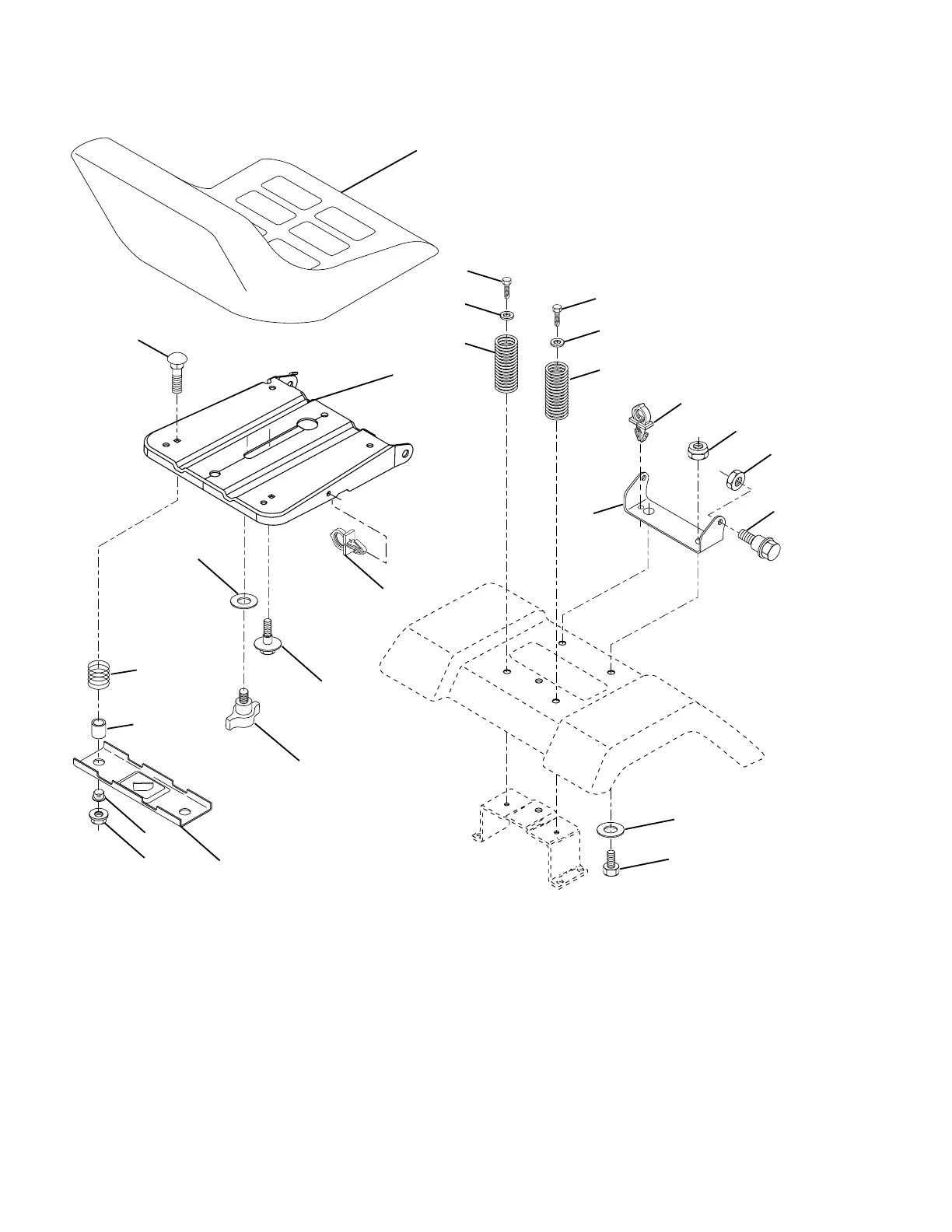

SEAT
KEY PART
NO. NO. DESCRIPTION
1 188713 Seat
2 140551 Bracket Seat Pivot
3 71110616 Bolt Hex 3/8 - 16 x 1
4 19131610 Washer 13/32 x 1 x10 Ga.
5 145006 Clip Push-In Hinged
6 73800600 Nut Lock Hex w/Ins 3/8 - 16
7 124181X Spring Seat Cprsn 2 250 Blk Zi
8 17000616 Screw 3/8-16 x 1.5
9 19131614 Washer 13/32 x 1 x 14 Ga.
10 195530 Pan Asm. Seat
11 166369 Knob Seat
12 174648 Bracket Pnt Mounting Switch
KEY PART
NO. NO. DESCRIPTION
13 121248X Bushing Snap Blk Nyl
14 72050412 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2
15 134300 Spacer Split .28 x .96
16 121250X Spring Cprsn
17 123976X Nut Lock 1/4 Lge Flg
21 171852 Bolt Shoul der 5/16-18 unc-2A
22 73800500 Nut Lock Hex w/Ins 5/16 - 18
24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
25 127018X Bolt Shoul der 5/16-18 x .62
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
11
2
6
22
21
5
10
5
14
seat_lt.knob_13
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
