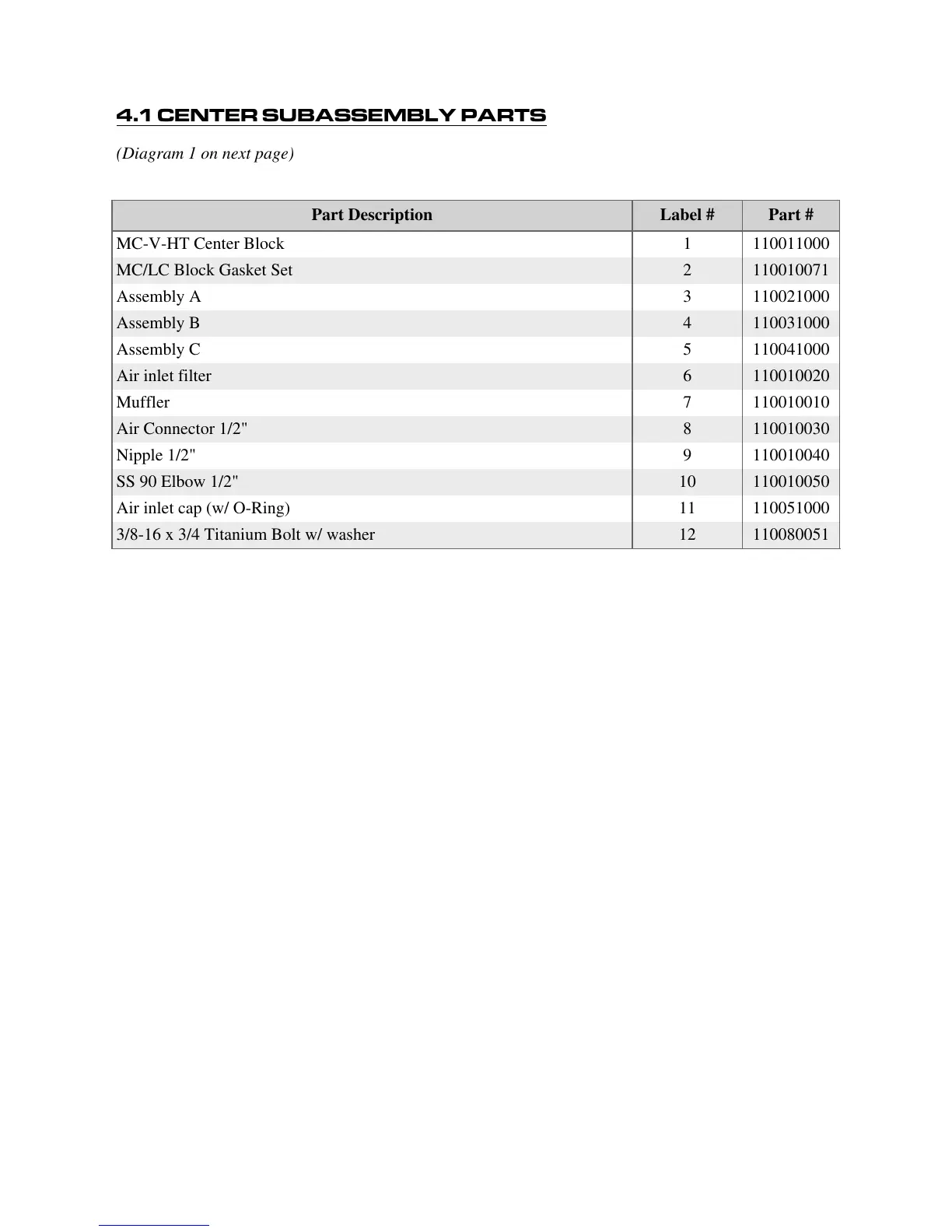

4.1 CENTER SUBASSEMBLY PARTS
(Diagram 1 on next page)
Part Description Label # Part #
MC-V-HT Center Block 1 110011000
MC/LC Block Gasket Set 2 110010071
Assembly A 3 110021000
Assembly B 4 110031000
Assembly C 5 110041000
Air inlet filter 6 110010020
Muffler 7 110010010
Air Connector 1/2" 8 110010030
Nipple 1/2" 9 110010040
SS 90 Elbow 1/2" 10 110010050
Air inlet cap (w/ O-Ring) 11 110051000
3/8-16 x 3/4 Titanium Bolt w/ washer 12 110080051
8
