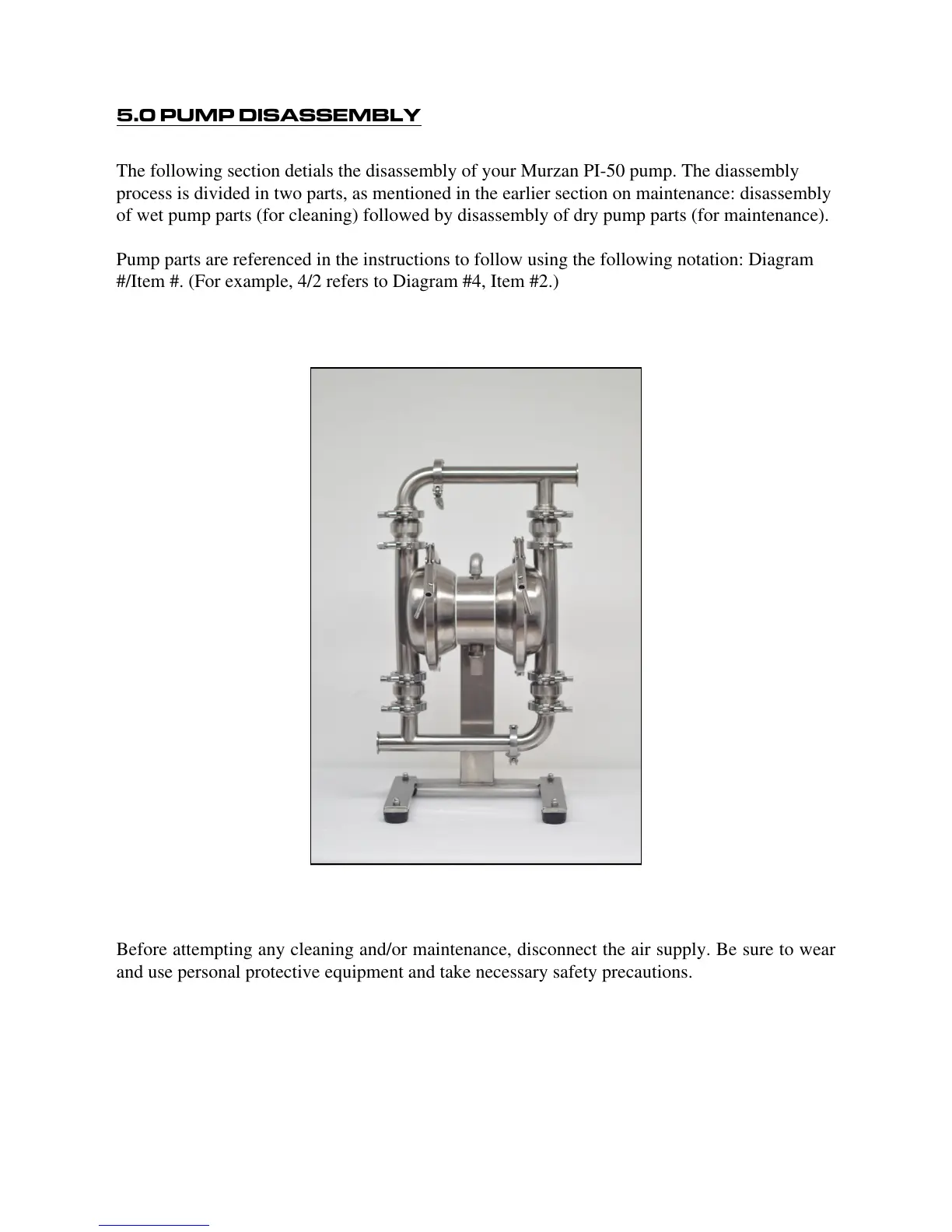

5.0 PUMP DISASSEMBLY
The following section detials the disassembly of your Murzan PI-50 pump. The diassembly
process is divided in two parts, as mentioned in the earlier section on maintenance: disassembly
of wet pump parts (for cleaning) followed by disassembly of dry pump parts (for maintenance).
Pump parts are referenced in the instructions to follow using the following notation: Diagram
#/Item #. (For example, 4/2 refers to Diagram #4, Item #2.)
Before attempting any cleaning and/or maintenance, disconnect the air supply. Be sure to wear
and use personal protective equipment and take necessary safety precautions.
16
